Characteristic

Model : HV2

Cobalt-containing high hardness, new coating, super wear resistant
The knife edge is sharp and the chip removal is brisk.
The inner arc of the blade corner reduces the wear of the blade during cutting and improves the life of the knife.

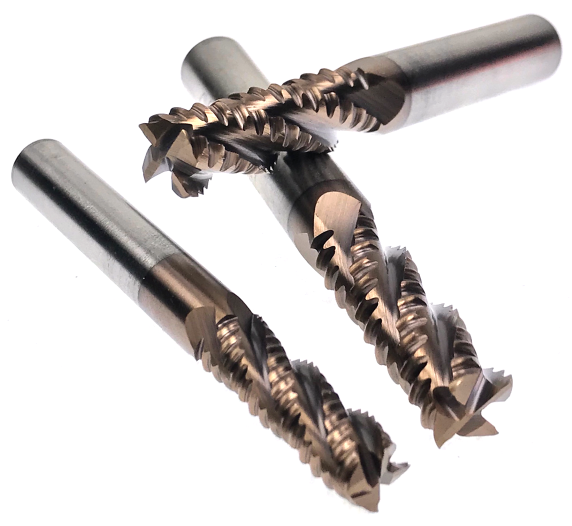

HSS cobalt rough milling cutter

HSS cobalt rough milling cutter

Cobalt-containing high hardness, new coating, super wear resistant

The knife edge is sharp and the chip removal is brisk.

The inner arc of the blade corner reduces the wear of the blade during cutting and improves the life of the knife.

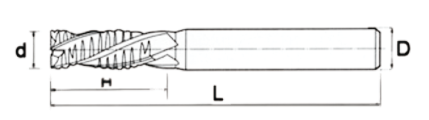

d	D	H	L
6	6	19	63
7	8	22	66
8	8	22	66
9	10	25	75
10	10	30	75
11	12	35	85
12	12	35	85
13	12	35	95
14	12	35	85
15	16	40	85
16	16	40	95
18	16	40	95
20	20	45	95
22	20	45	110
25	20	50	120
28	25	55	125
30	25	60	135
32	32	60	145
