XGJ Laser machine

Characteristic

Model : XGJ

20、30W

Laser machine

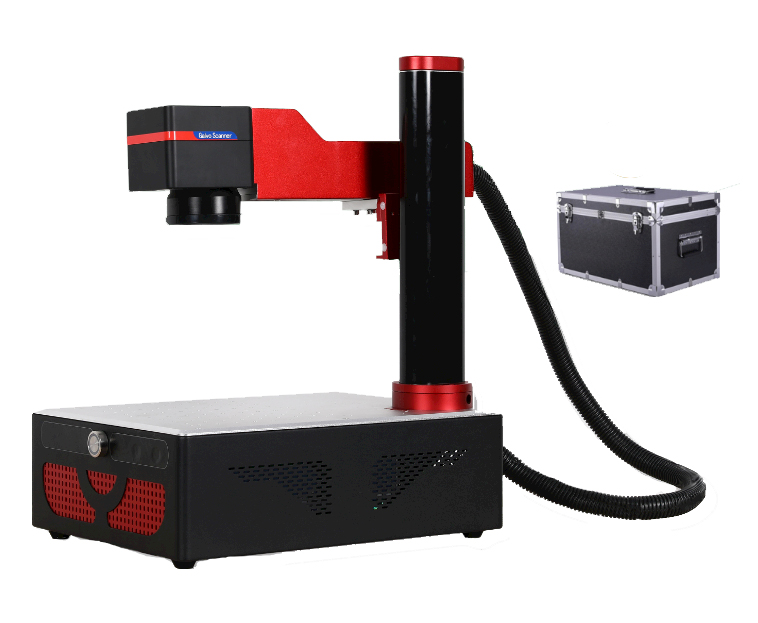

Portable fiber laser marking machine

Laser power :20W/30W

Voltage: AC 110V / 50HZ

Appearance size: 46x33x58cm

Engraving area: 110 x 110 mm

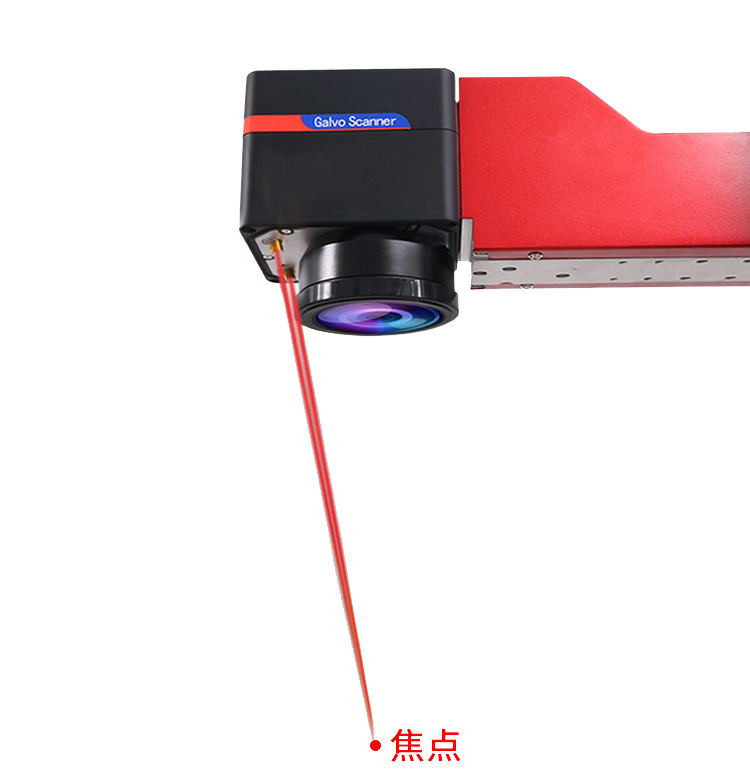

Laser: Air-cooled fiber laser (head can be rotated 365 degrees)

Wavelength: 1064μm

Laser life: 100,000 hours (one year warranty)

Repeat frequency: 1 ~ 200 khz

Repeatability: <0.003 mm

Maximum engraving speed: 12000 mm/sec

Minimum engraving text: 0.15 mm

Minimum engraving line: 0.015 mm

Positioning method: equal size preview, automatic positioning of red frame

Adjustable lifting range: 200 mm

Support file format: Support Autocad/Coreldraw/Photoshop/AI and other software file formats

Computer system environment: Windows 7/8/10

Software: Chinese and English interface can be selected

Transmission method: USB transmission, laptop can also be operated

Whole machine power: <=800W

Net weight: 27Kg / Gross weight: 32kg

Anti-vibration toolbox/marking model

Desktop computer notebook computer to choose from
