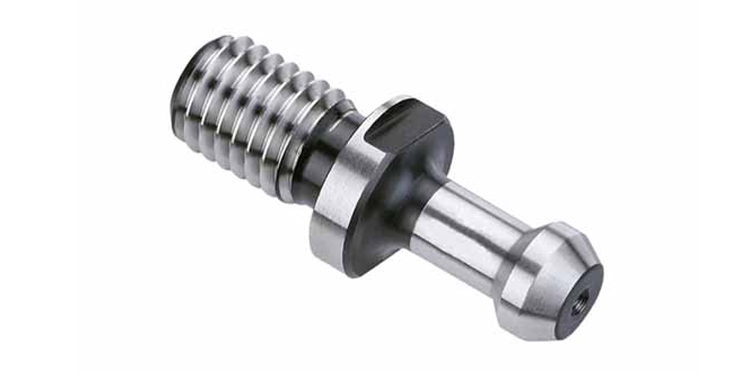

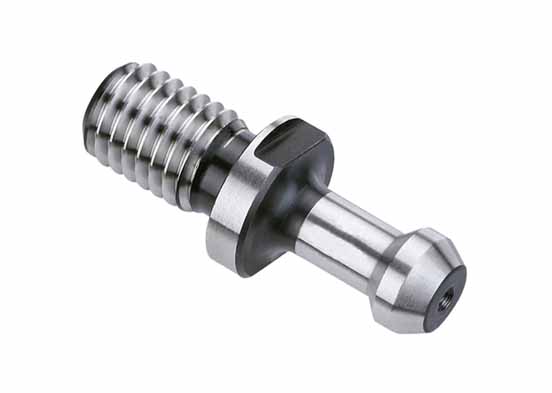

型號 : BT40

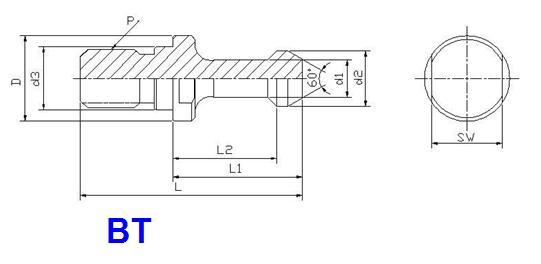

CNC機台專用拉栓拉頭選取尺寸 => | D | d1 | d2 | d3 | d4 | d5 | L | L1 | L2 | L3 | L4 | SW | P | 重量1個 | 裝箱數量 |
16.5 | 7 | 11 | 12.5 | - | - | 43 | 23 | 18 | - | - | 13 | M12*1.75 | 0.030 | 50/100PCS | |
16.5 | 7 | 11 | 12.5 | - | - | 43 | 23 | 18 | - | - | 13 | M12*1.75 | 0.030 | 50/100PCS | |
16.5 | 7 | 11 | 12.5 | - | - | 43 | 23 | 18 | - | - | 13 | M12*1.75 | 0.030 | 50/100PCS | |
23 | 10 | 15 | 17 | - | - | 60 | 35 | 28 | - | - | 19 | M16*2.0 | 0.070 | 50/100PCS | |
23 | 10 | 15 | 17 | - | - | 60 | 35 | 28 | - | - | 19 | M16*2.0 | 0.070 | 50/100PCS | |
23 | 10 | 15 | 17 | - | - | 60 | 35 | 28 | - | - | 19 | M16*2.0 | 0.070 | 50/100PCS | |
38 | 17 | 23 | 25 | - | - | 85 | 45 | 35 | - | - | 30 | M24*3.0 | 0.280 | 25/50PCS | |
38 | 17 | 23 | 25 | - | - | 85 | 45 | 35 | - | - | 30 | M24*3.0 | 0.280 | 25/50PCS | |
38 | 17 | 23 | 25 | - | - | 85 | 45 | 35 | - | - | 30 | M24*3.0 | 0.270 | 25/50PCS |
s:高硬度高拉力
選取尺寸 => | D | d1 | d2 | d3 | d4 | d5 | L | L1 | L2 | L3 | L4 | SW | P | 重量1個 | 裝箱數量 |
16.5 | 7 | 11 | 12.5 | - | - | 43 | 23 | 18 | - | - | 13 | M12*1.75 | 0.030 | 50PCS | |
16.5 | 7 | 11 | 12.5 | - | - | 43 | 23 | 18 | - | - | 13 | M12*1.75 | 0.030 | 50PCS | |
23 | 10 | 15 | 17 | - | - | 60 | 35 | 28 | - | - | 19 | M16*2.0 | 0.070 | 50PCS |

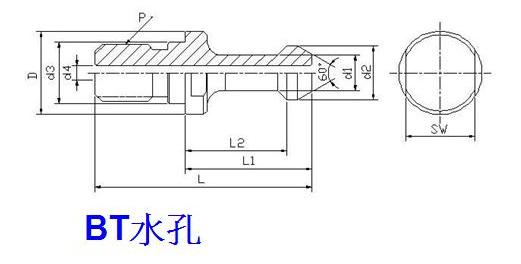

選取尺寸 => | D | d1 | d2 | d3 | d4 | d5 | L | L1 | L2 | L3 | L4 | SW | P | 重量1個 | 裝箱數量 |
16.5 | 7 | 11 | 12.5 | 2*3 | - | 43 | 23 | 18 | - | - | 13 | M12*1.75 | 0.030 | 50/100PCS | |
16.5 | 7 | 11 | 12.5 | 2*3 | - | 43 | 23 | 18 | - | - | 13 | M12*1.75 | 0.030 | 50/100PCS | |
23 | 10 | 15 | 17 | 4 | - | 60 | 35 | 28 | - | - | 19 | M16*2.0 | 0.070 | 50/100PCS | |
23 | 10 | 15 | 17 | 4 | - | 60 | 35 | 28 | - | - | 19 | M16*2.0 | 0.070 | 50/100PCS | |
23 | 10 | 15 | 17 | 4 | - | 60 | 35 | 28 | - | - | 19 | M16*2.0 | 0.070 | 50/100PCS | |
23 | 10 | 15 | 17 | 4 | - | 60 | 35 | 28 | - | - | 19 | M16*2.0 | 0.060 | 50/100PCS | |
23 | 10 | 15 | 17 | 5 | - | 60 | 35 | 28 | - | - | 19 | M16*2.0 | 0.060 | 50/100PCS | |
38 | 17 | 23 | 25 | 7 | - | 85 | 45 | 35 | - | - | 30 | M24*3.0 | 0.250 | 25/50PCS | |
38 | 17 | 23 | 25 | 7 | - | 85 | 45 | 35 | - | - | 30 | M24*3.0 | 0.250 | 25/50PCS | |
38 | 17 | 23 | 25 | 7 | - | 85 | 45 | 35 | - | - | 30 | M24*3.0 | 0.250 | 25/50PCS |

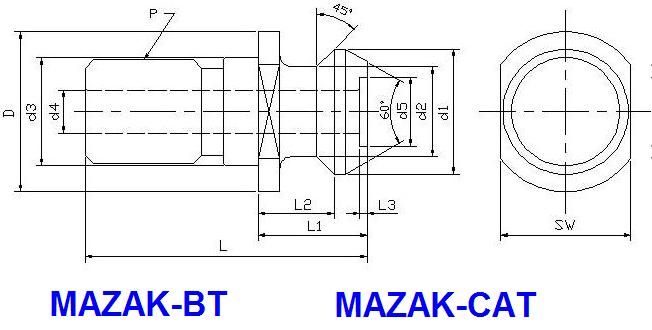

選取尺寸 => | D | d1 | d2 | d3 | d4 | d5 | L | L1 | L2 | L3 | L4 | SW | P | 重量1個 | 裝箱數量 |
23 | 19 | 14 | 17 | 7 | - | 54 | 26 | 20 | - | - | 19 | M16*2.0 | 0.070 | 50/100PCS | |
36 | 28 | 21 | 25 | 11.5 | - | 74 | 34 | 25 | - | - | 30 | M24*3.0 | 0.200 | 25/50PCS | |
22.5 | 19 | 13 | 17 | 7.35 | - | 44.5 | 16.4 | 11.2 | - | - | 19 | M16*2.0 | 0.050 | 50/100PCS | |
37 | 29.1 | 19.6 | 25 | 11.5 | - | 65.5 | 25.5 | 18 | - | - | 30 | M24*3.0 | 0.180 | 25/50PCS |
選取尺寸 => | D | d1 | d2 | d3 | d4 | d5 | L | L1 | L2 | L3 | L4 | SW | P | 重量1個 | 裝箱數量 |
22 | 18.8 | 12.5 | 17 | 7 | - | 41.1 | 16.1 | 11 | - | - | 19 | M16*2.0 | 0.050 | 50PCS | |
22 | 18.8 | 12.5 | 17 | 7 | - | 44.1 | 19.1 | 14 | - | - | 19 | M16*2.0 | 0.050 | 50PCS | |
37 | 29 | 20.8 | 25 | 10 | 16 | 65.2 | 25.2 | 17.6 | 1.8 | - | 30 | M24*3.0 | 0.190 | 25PCS |
選取尺寸 => | D | d1 | d2 | d3 | d4 | d5 | L | L1 | L2 | L3 | L4 | SW | P | 重量1個 | 裝箱數量 |
17 | 13 | 9 | 13 | - | - | 44 | 24 | 19 | - | - | 14 | M12*1.75 | 0.040 | 50/100PCS | |
23 | 19 | 14 | 17 | 7 | - | 54 | 26 | 20 | - | - | 19 | M16*2.0 | 0.070 | 50/100PCS | |
23 | 19 | 14 | 17 | 7 | - | 54 | 29 | 23 | - | - | 19 | M16*2.0 | 0.070 | 50/100PCS | |
17 | 13 | 9 | 13 | - | - | 44 | 24 | 19 | - | - | 14 | M12*1.75 | 0.040 | 50/100PCS | |
23 | 19 | 14 | 17 | 7 | - | 54 | 26 | 20 | 27 | 3 | 19 | M16*2.0 | 0.080 | 50/100PCS | |
23 | 19 | 14 | 17 | 7 | - | 54 | 29 | 23 | 27 | 3 | 19 | M16*2.0 | 0.080 | 50/100PCS |
選取尺寸 => | D | d1 | d2 | d3 | d4 | d5 | L | L1 | L2 | L3 | L4 | SW | P | 重量1個 | 裝箱數量 |
23 | 19 | 14 | 17 | 7 | - | 54 | 29 | 23 | - | - | 19 | M16*2.0 | 0.070 | 50PCS |

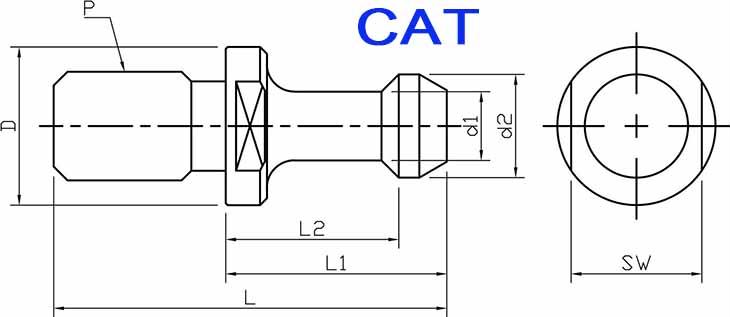

選取尺寸 => | D | d1 | d2 | d3 | d4 | L | L1 | L2 | SW | P | 裝箱數量 |
CAT40-45° | 23 | 10 | 15 | - | - | 57.15 | 32.15 | 25.15 | 19 | 5/8" | 100PCS |
CAT40-60° | 23 | 10 | 15 | - | - | 57.15 | 32.15 | 25.15 | 19 | 5/8" | 100PCS |
CAT40-90° | 23 | 10 | 15 | - | - | 57.15 | 32.15 | 25.15 | 19 | 5/8" | 100PCS |
CAT50-45° | 38 | 17 | 23 | - | - | 78.6 | 45 | 35.2 | 31.8 | 1" | 50PCS |
CAT50-60° | 38 | 17 | 23 | - | - | 78.6 | 45 | 35.2 | 31.8 | 1" | 50PCS |
CAT50-90° | 38 | 17 | 23 | - | - | 78.6 | 45 | 35.2 | 31.8 | 1" | 50PCS |
