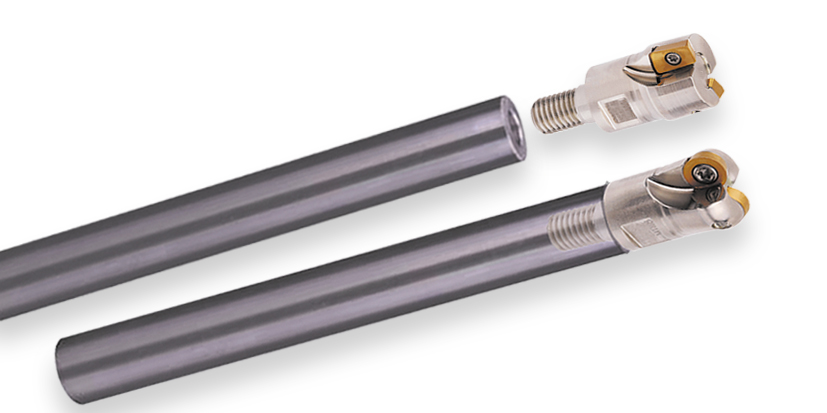

GL 鎢鋼延長桿
產品特點
型號 : GL
鎢鋼抗震刀桿1.使用高級碳化鎢材質製成,剛性優異,吸震性佳
2.延長加工深度,提升加工面精度,實現超長.超深,超高精度加工之可行性
3.降低刀具成本,延長刀具壽命
鎢鋼延長桿
Order No. | D | L | M | d2 |
GL08-08-100-M04 | 8 | 100 | M4*0.7 | 4.5 |
GL08-08-120-M04 | 8 | 120 | M4*0.7 | 4.5 |
Order No. | D | L | M | d2 |
GL10-10-100-M05 | 10 | 100 | M5*0.8 | 5.5 |
GL10-10-150-M05 | 10 | 150 | M5*0.8 | 5.5 |
Order No. | D | L | M | d2 |
GL12-12-100-M06 | 12 | 100 | M6*1.0 | 6.5 |
GL12-12-150-M06 | 12 | 150 | M6*1.0 | 6.5 |
GL12-12-200-M06 | 12 | 200 | M6*1.0 | 6.5 |
Order No. | D | L | M | d2 |
GL16-16-100-M08 | 16 | 100 | M8*1.25 | 8.5 |
GL16-16-150-M08 | 16 | 150 | M8*1.25 | 8.5 |
GL16-16-200-M08 | 16 | 200 | M8*1.25 | 8.5 |
GL16-16-250-M08 | 16 | 250 | M8*1.25 | 8.5 |
Order No. | D | L | M | d2 |
GL20-20-100-M10 | 20 | 100 | M10*1.5 | 10.5 |
GL20-20-150-M10 | 20 | 150 | M10*1.5 | 10.5 |
GL20-20-200-M10 | 20 | 200 | M10*1.5 | 10.5 |
GL20-20-250-M10 | 20 | 250 | M10*1.5 | 10.5 |
GL20-20-300-M10 | 20 | 300 | M10*1.5 | 10.5 |
Order No. | D | L | M | d2 |
GL25-25-100-M12 | 25 | 100 | M12*1.75 | 12.5 |
GL25-25-150-M12 | 25 | 150 | M12.1.75 | 12.5 |
GL25-25-200-M12 | 25 | 200 | M12.1.75 | 12.5 |
GL25-25-250-M12 | 25 | 250 | M12.1.75 | 12.5 |
GL25-25-300-M12 | 25 | 300 | M12.1.75 | 12.5 |
GL25-25-350-M12 | 25 | 350 | M12.1.75 | 12.5 |
Order No. | D | L | M | d2 |
GL32-32-150-M16 | 32 | 150 | M16*2.0 | 17 |
GL32-32-200-M16 | 32 | 200 | M16*2.0 | 17 |
GL32-32-250-M16 | 32 | 250 | M16*2.0 | 17 |
GL32-32-300-M16 | 32 | 300 | M16*2.0 | 17 |
GL32-32-350-M16 | 32 | 350 | M16*2.0 | 17 |
GL32-32-400-M16 | 32 | 4 | M16*2.0 | 17 |
