型號 : GF2QAP

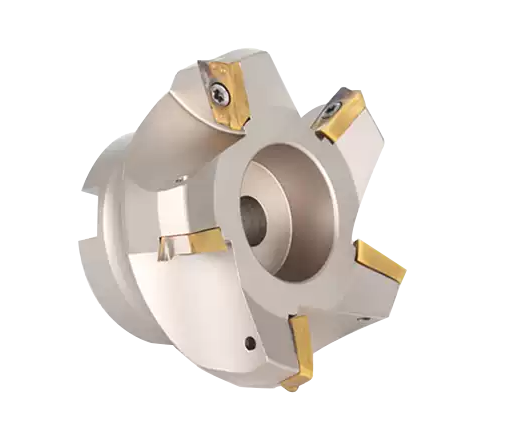

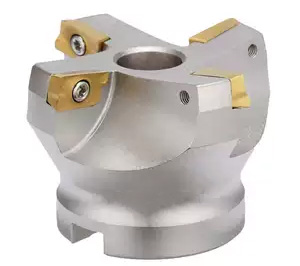

75°面铣刀盤
代號 | 型號 | 尺寸 | 刀片 | 刃數 | 螺絲 | 扳手 | ||
D | d | H | ||||||
GF2QAP11R050 | 300R-50-22-4T | 50 | 22 | 50 | APMT1135 | 4 | M2.5 | T8 |
GF2QAP11R063 | 300R-63-22-4T | 63 | 22 | 50 | APMT1135 | 4 | M2.5 | T8 |
GF2QAP16R063 | 400R-63-22-4T | 63 | 22 | 50 | APMT1604 | 4 | M4 | T15 |
GF2QAP16R080 | 400R-80-27-5T | 80 | 27 | 50 | APMT1604 | 5 | M4 | T15 |
GF2QAP16R100 | 400R-100-40-6T | 100 | 40 | 50 | APMT1604 | 6 | M4 | T15 |
GF2QAP16R125 | 400R-125-40-8T | 125 | 40 | 50 | APMT1604 | 8 | M4 | T15 |
GF2QAP16R160 | 400R-160-40-10T | 160 | 40 | 50 | APMT1604 | 10 | M4 | T15 |
