Characteristic

Model : NZM-50

Cnc Machine Tool Setter
1. Commonly used in computer milling machine / lathe knife set
2. Measuring height: 50.00 ± 0.005mm.
3. Small spring force to avoid small cutter or drill fracture.
4. Ground parallel plate can be easily set.
5. Available in hex wrench to adjust the measured height
6. Available in hex wrench to adjust the pointer to zero
7. New Z-axis setter factory has correction setting is completed . under the knife stroke is 1mm customers to use more convenient

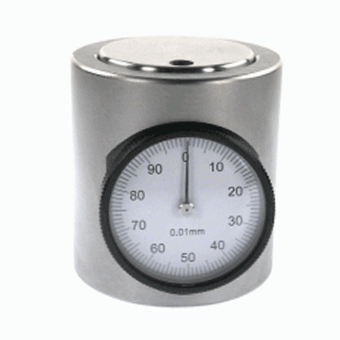

Cnc Machine Tool Setter (Z Axis Setter)

CNC milling machine to set the height of Use: Z-axis setter

TYPE	HEIGHT	WEIGHT KGS	HxWxL/UNIT:mm	Magnetism
NZM-50A	50.00 / ±0.005mm	0.83kgs	50x48x48	O
NZM-50B	50.00 / ±0.005mm	0.83kgs	50x48x48	X



 Z-axis setter Bottom





Patented Z-axis setter adjustment method

Z-axis setter simple easy to clean by:





If the Z-axis top stuck due to the dust, please use 4MM or less than 4MM Rods and clean up nudging into the hole a few times which can make dust come out.

But if it is caused by cutting oils or collision cutter jammed, please send it to our company and we have clean service.
