BT/SK Tool Holders,Collet,Collet Chuck,
Characteristic
Model : BT/SK
Tool Holders Material :JIS SNCM220Tool Holders Hardness : HRC 56°C ~ 58 °C
Tool Holders cementite hardness> 0.8mm
Tool Holders SK tooling systems are suitable for high speed and high precision cutting.
Special nut design provides better cutting condition and reducing cutting
vibration.
Wrench must be ordered separately.
Tool Holders,Collet,Collet Chuck,
High Speed Collet Chuck BT/SK
TYPE | Clamping Range (d) | L | L1 | Weight/kg | Dynamic balance |
BT30*SK06-90L | 3-6 | 90 | 70 | 0.70 | 30000RPM |
BT30*SK06-120L | 3-6 | 120 | 95 | 0.80 | 30000RPM |
BT30*SK10-60L | 3-10 | 60 | 40 | 0.70 | 30000RPM |
BT30*SK10-90L | 3-10 | 90 | 70 | 0.80 | 30000RPM |
BT30*SK13-60L | 3-13 | 60 | 40 | 1.10 | 30000RPM |
BT30*SK13-90L | 3-13 | 90 | 70 | 1.10 | 30000RPM |
BT30*SK16-60L | 3-16 | 60 | 40 | 0.70 | 30000RPM |
BT30*SK16-90L | 3-16 | 90 | 70 | 0.90 | 30000RPM |
BT30*SK16-150L | 3-16 | 150 | 130 | 1.30 | 30000RPM |
TYPE | Clamping Range (d) | L | L1 | Weight/kg | Dynamic balance |
BT40*SK06-90L | 3-6 | 90 | 70 | 0.70 | 30000RPM |
BT40*SK06-120L | 3-6 | 120 | 95 | 0.80 | 30000RPM |
BT40*SK10-60L | 3-10 | 60 | 35 | 1.20 | 25000RPM |
BT40*SK10-90L | 3-10 | 90 | 65 | 1.30 | 25000RPM |
BT40*SK10-120L | 3-10 | 120 | 95 | 1.50 | 25000RPM |
BT40*SK10-150L | 3-10 | 150 | 125 | 1.60 | 25000RPM |
BT40*SK13-60L | 3-13 | 60 | 35 | 1.20 | 25000RPM |
BT40*SK13-90L | 3-13 | 90 | 65 | 1.30 | 25000RPM |
BT40*SK13-120L | 3-13 | 120 | 95 | 1.60 | 25000RPM |
BT40*SK13-150L | 3-13 | 150 | 125 | 1.80 | 25000RPM |
BT40*SK16-60L | 3-16 | 60 | 35 | 1.30 | 25000RPM |
BT40*SK16-90L | 3-16 | 90 | 65 | 1.50 | 25000RPM |
BT40*SK16-120L | 3-16 | 120 | 95 | 1.90 | 25000RPM |
BT40*SK16-150L | 3-16 | 150 | 125 | 2.10 | 25000RPM |
BT40*SK20-60L | 3-20 | 60 | 35 | 1.30 | 25000RPM |
BT40*SK20-90L | 3-20 | 90 | 65 | 1.80 | 25000RPM |
BT40*SK20-120L | 3-20 | 120 | 95 | 2.40 | 25000RPM |
BT40*SK20-150L | 3-20 | 150 | 125 | 2.60 | 25000RPM |
BT40*SK25-80L | 3-25 | 80 | 55 | 1.60 | 25000RPM |
BT40*SK25-120L | 3-25 | 120 | 95 | 2.20 | 25000RPM |
TYPE | Clamping Range (d) | L | L1 | Weight/kg | Dynamic balance |
BT50*SK10-135L | 3-10 | 135 | 100 | 4.15 | 15000RPM |
BT50*SK10-150L | 3-10 | 150 | 115 | 4.20 | 15000RPM |
BT50*SK10-165L | 3-10 | 165 | 130 | 4.40 | 15000RPM |
BT50*SK16-100L | 3-16 | 100 | 65 | 4.20 | 15000RPM |
BT50*SK16-135L | 3-16 | 135 | 100 | 4.55 | 15000RPM |
BT50*SK16-150L | 3-16 | 150 | 115 | 5.00 | 15000RPM |
BT50*SK16-165L | 3-16 | 165 | 130 | 5.10 | 15000RPM |
BT50*SK20-100L | 3-20 | 100 | 65 | 4.50 | 15000RPM |
BT50*SK20-135L | 3-20 | 135 | 100 | 5.00 | 15000RPM |
BT50*SK20-150L | 3-20 | 150 | 115 | 5.50 | 15000RPM |
BT50*SK25-100L | 3-25 | 100 | 65 | 4.50 | 15000RPM |
BT50*SK25-135L | 3-25 | 135 | 100 | 5.10 | 15000RPM |
BT50*SK25-150L | 3-25 | 150 | 115 | 5.30 | 15000RPM |
High Speed Collet SK
SK TYPE Collet
TYPE | Clamping Range d | D | L | Weight(kg) |
SK06- | 3.0 1/8 3.5 4.0 4.5 5.0 5.5 6.0 | 10.0 | 25.0 | 0.01 |
SK10- | 3.0 1/8 3.5 4.0 4.5 5.0 5.5 6.0 6.5 7.0 7.5 8.0 8.5 9.0 9.5 10.0 | 16.0 | 30.0 | 0.02 |
SK13- | 3.0 1/8 3.5 4.0 4.5 5.0 5.5 6.0 6.5 7.0 7.5 8.0 8.5 9.0 9.5 10.0 11 12 13 | 20.0 | 39.0 | 0.04 |
SK16- | 3.0 1/8 3.5 4.0 4.5 5.0 5.5 6.0 6.5 7.0 7.5 8.0 8.5 9.0 9.5 10.0 11 12 13 14 15 16 | 24.5 | 45.0 | 0.08 |
SK20- | 6.0 8.0 10 12 14 16 18 20 | 29.3 | 50.5 | 0.14 |
SK25- | 6.0 8.0 10 12 14 16 18 20 25 | 35.0 | 57.0 | 0.24 |
Collet chuck Runout-Max μ (A:0.005mm) (AAA:0.003mm)
~If you need AA level, please inform us clearly.~
TSK water-type collet or called water-stop collet accuracy of 0.003um AA level
TYPE | Clamping Range d | D | L | Weight(kg) |
TSK06- | 3.0 1/8 3.5 4.0 4.5 5.0 5.5 6.0 | 10.0 | 25.0 | 0.01 |
TSK10- | 3.0 1/8 3.5 4.0 4.5 5.0 5.5 6.0 6.5 7.0 7.5 8.0 8.5 9.0 9.5 10.0 | 15.6 | 30.0 | 0.02 |
TSK13- | 3.0 1/8 3.5 4.0 4.5 5.0 5.5 6.0 6.5 7.0 7.5 8.0 8.5 9.0 9.5 10.0 11.0 12.0 13.0 | 20.0 | 39.0 | 0.04 |
TSK16- | 3.0 3.5 4.0 4.5 5.0 5.5 6.0 6.5 8.0 8.5 10.0 10.5 12.0 12.5 14.0 16.0 | 24.5 | 45.0 | 0.08 |
TSK20- | 6 .0 8.0 10.0 12.0 14.0 16.0 18.0 20.0 | 29.3 | 50.5 | 0.14 |
High Speed Collet SK

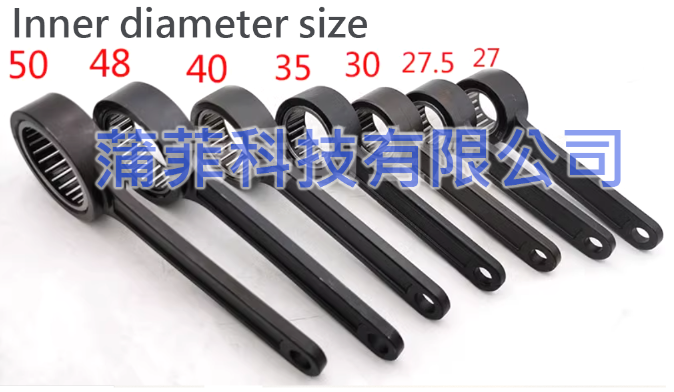

| High Speed Nu | 代號 | 直徑 | G | 淨重/kg |
 | 3XASK10 | 29 | BT30-M22*1.25 | 0.05 |
| 3XASK10A | 29 | M22*1.5P | ||
| 3XASK13A | 37 | M28*1.5P | 0.07 | |
| 3XASK16A | 40 | M32*1.5P | 0.11 | |
| 3XASK20A | 50 | M40*1.5P | 0.18 | |
| 3XASK25A | 56 | M45*1.5P | 0.21 | |
High Speed Wrench | 代號 | 淨重/kg | ||
 | 31GSK10A | 0.14 | ||
| 31GSK13A | 0.18 | |||
| 31GSK16A | 0.28 | |||
| 31GSK20A | 0.29 | |||
 | 31GSK25 | 0.26 | ||
| Full round nut | 代號 | 直徑 | G | 淨重/kg |
 | 3XASK06B | 20 | M15.5*1P | 0.05 |
| 3XASK10B | 30 | M22*1.25P | ||
| 3XASK10C | 27 | M21.5*1.0P | 0.07 | |
| 3XASK13B | 40 | M28*1.5P | 0.07 | |
| 3XASK16B | 50 | M32*1.5P | 0.11 | |
| 3XASK20B | 56 | M40*1.5P | 0.18 | |

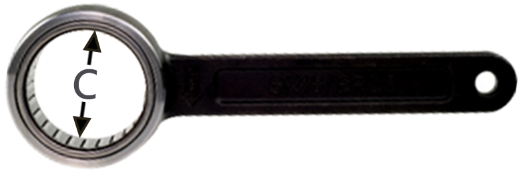

| full round wrench | 代號 | 淨重/kg | ||
 | 31GSK06 | 0.02 | ||
| 31GSK10 | 0.02 | |||
| 31GSK10 | 0.02 | |||
| 31GSK13 | 0.25 | |||
| 31GSK16 | 0.32 | |||
| 31GSK20 | 0.44 | |||
