BT/DCM High Speed Strong type Milling Chuck

Characteristic

Model : BT/DCM

Accuracy:Concentricity 0.005mm at holder nose and 0.01mm(TIR). AT100mm from nose.
Special desing of dust-prevents the milling chucks for locking and extends 50% or more lifetime of tool holders.
Caution:Excessive tightening forc will damage the chuck and collet.

Each DCM milling chuck attached 1pcs type wrench

High Speed Strong type Milling Chuck

High Speed Strong type Milling Chuck BT/DCM

DCM / Order no	d	D	L	kg
BT30-DCM20-85L	20	55	85	1.30
BT30-DCM25-85L	25	58	85	1.60
BT30-DCM32-90L	32	68	90	2.00
BT40-DCM20-85L	20	55	85	1.90
BT40-DCM20-105L	20	55	105	2.30
BT40-DCM25-85L	25	58	85	1.50
BT40-DCM25-105L	25	58	105	1.80
BT40-DCM25-135L	25	58	135	2.70
BT40-DCM25-150L	25	58	150	3.30
BT40-DCM32-90L	32	68	90	2.35
BT40-DCM32-105L	32	68	105	2.46
BT40-DCM32-135L	32	68	135	3.14
BT40-DCM32-150L	32	68	150	3.80
BT50-DCM32-105L	32	68	105	4.95
BT50-DCM32-135L	32	68	135	6.00
BT50-DCM32-165L	32	68	165	6.50
BT50-DCM42-105L	42	88	105	5.40
BT50-DCM42-165L	42	88	165	7.60

High Speed Strong type Milling Chuck NT/DCM

DCM / Order no	d	D	L	kg
NT30-DCM20-85L	20	55	85	1.30
NT30-DCM25-85L	25	58	85	1.60
NT40-DCM20-105L	20	55	105	1.90
NT40-DCM25-105L	25	58	105	1.80
NT40-DCM32-105L	32	68	105	2.46
NT50-DCM32-105L	32	68	105	4.95
NT50-DCM42-105L	42	88	105	5.40

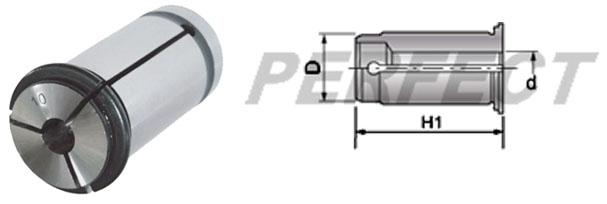

DCM Collet

Collet / Order no	Rdnge ∮ d	D	H1
DCM20-	4 ~ 16	20	52.7
DCM25-	4 ~ 20	25	63.0
DCM32-	4 ~ 25 1/8	32	70.4
DCM42-	6 ~ 32	42	80.0

Each DCM milling chuck attached 1pcs type wrench
