C/SDC EXTENSION SLIM CHUCK
Characteristic
Model : C/SDC

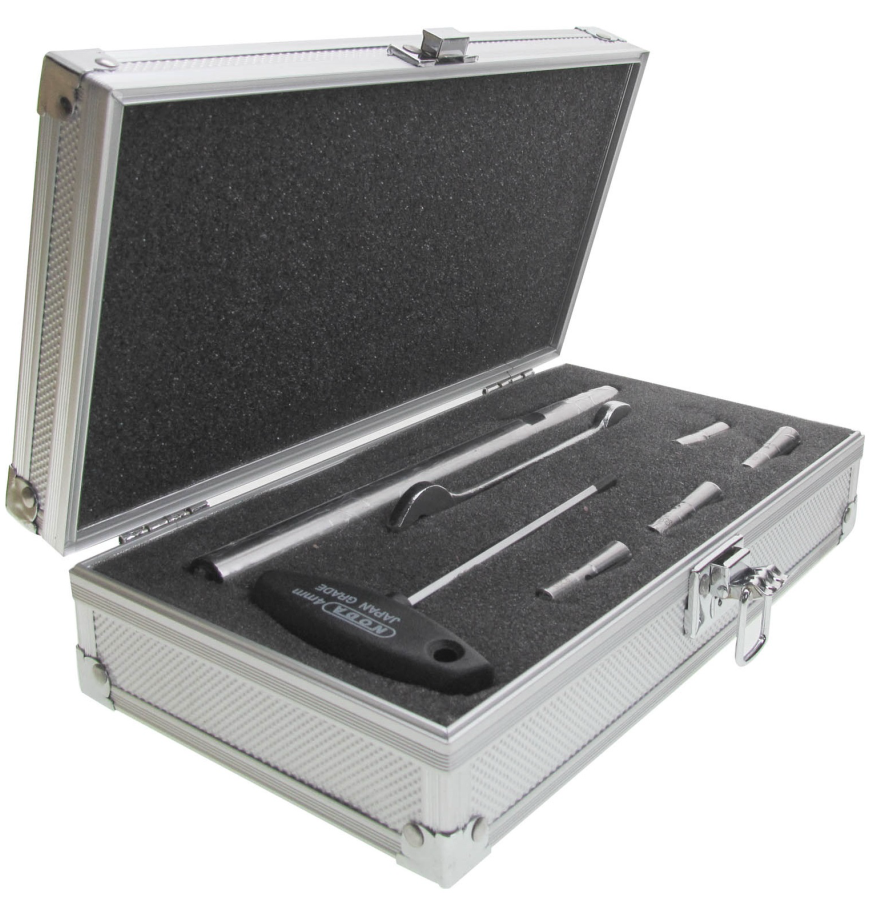

Extension adaptor includes on hexagon spanner and opening spannerEXTENSION SLIM CHUCK
Mini type Straight Shank Holder
C/SDC EXTENSION SLIM CHUCK

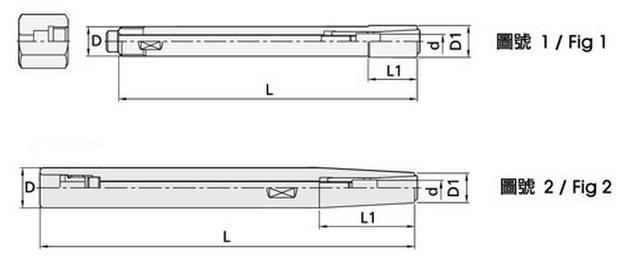

MODEL NO | L | L1 | D | D1 | kg | Fig | Using an open wrench | Use a hex wrench |
C12-SDC6-120L | 120 | 35 | 12 | 12.90 | 0.1 | 1 | 10mm | 4mm |
C12-SDC6-150L | 150 | 35 | 12 | 12.90 | 0.12 | 1 | 10mm | 4mm |
C16-SDC6-150L | 150 | 30 | 16 | 13.00 | 0.21 | 2 | 14mm | 4mm |
C16-SDC6-200L | 200 | 30 | 16 | 13.00 | 0.29 | 2 | 14mm | 4mm |

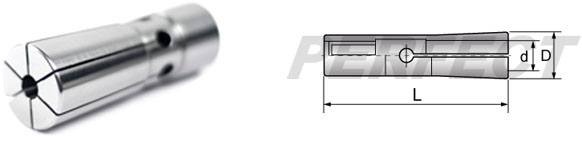

SDC EXTENSION SLIM COLLET
Runout <0.003mm
Collet / Order no | d | L | D | kg | Use a hex wrench |
SDC6- | 3 4 5 6 | 36 | 9.8 | 0.01 | M4 |
