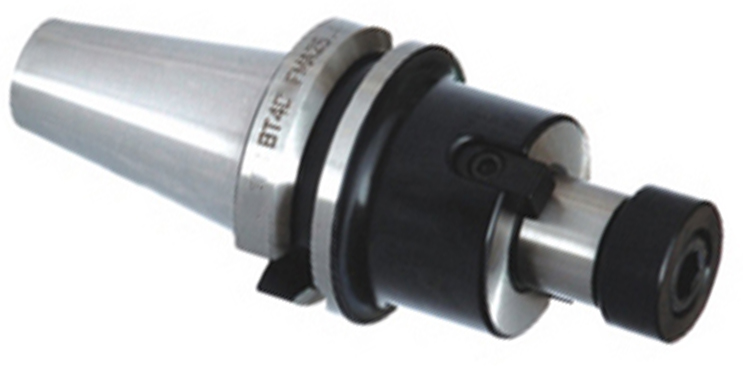

FMA TYPE

FIG

D

D1

D2

L

L1

G

W

Wieght (kg)

BT30-FMA25.4-45L

1

25.4

45

33

45

20

M12

9.5

0.9

BT30-FMA25.4-60L

1

25.4

45

33

60

20

M12

9.5

1.2

BT30-FMA31.75-45L

1

31.8

58

40

45

22

M12

12.7

1.3

BT40-FMA25.4-45L

1

25.4

60

33

45

20

M12

9.5

1.7

BT40-FMA25.4-60L

1

25.4

60

33

60

20

M12

9.5

2.0

BT40-FMA25.4-90L

1

25.4

60

33

90

20

M12

9.5

2.6

BT40-FMA25.4-105L

1

25.4

60

33

105

20

M12

9.5

2.9

BT40-FMA31.75-45L

1

31.75

70

40

45

22

M12

12.7

1.8

BT40-FMA31.75-60L

1

31.75

70

40

60

22

M12

12.7

2.3

BT40-FMA31.75-90L

1

31.75

70

40

90

22

M12

12.7

3.2

BT40-FMA31.75-105L

1

31.75

70

40

105

22

M12

12.7

3.3

BT40-FMA38.1-60L

1

38.1

85

50

60

23

M16

15.9

2.8

BT50-FMA25.4-45L

1

25.4

60

33

45

20

M12

9.5

4.2

BT50-FMA25.4-75L

1

25.4

60

33

75

20

M12

9.5

4.9

BT50-FMA25.4-105L

1

25.4

60

33

105

20

M12

9.5

5.3

BT50-FMA25.4-150L

1

25.4

60

33

150

20

M12

9.5

6.1

BT50-FMA25.4-200L

1

25.4

60

33

200

20

M12

9.5

7.3

BT50-FMA25.4-250L

1

25.4

60

33

250

20

M12

9.5

8.2

BT50-FMA25.4-300L

1

25.4

60

33

300

20

M12

9.5

9.3

BT50-FMA31.75-45L

1

31.75

70

40

45

22

M12

12.7

4.4

BT50-FMA31.75-75L

1

31.75

70

40

75

22

M12

12.7

5.3

BT50-FMA31.75-105L

1

31.75

70

40

105

22

M12

12.7

6.2

BT50-FMA38.1-75L

1

38.1

85

50

75

23

M16

15.9

5.9

BT50-FMA50.8-45L

1

50.8

95

65

45

24

M16

19.05

5.0

BT50-FMA50.8-75L

1

50.8

95

65

75

24

M16

19.05

6.6

BT50-FMA47.625-75L

2

47.625

128.57

75

32

25.4

8.3
