ER螺帽&扳手 NUT WRENCH
Characteristic
Model : ER螺帽&扳手
CNC tool holder ER nut ER wrenchNUT WRENCH
CNC tool holder ER nut ER wrench

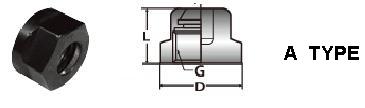

NUT/ Order no | A TYPE NUT | D | L | G | Weight(kg) |
AN-ER11 | ER11-A | 19.0 | 13 | M14x0.75P | 0.01 |
AN-ER16 | ER16-A | 28.0 | 17.5 | M22x1.5P | 0.04 |
AN-ER20 | ER20-A | 34.0 | 19 | M25x1.5p | 0.07 |
WRENCH / Order no | A TYPE WRENCH | C | L | Weight(kg) |
AW-ER11 | ER11-A | 17.0 | 140 | 0.08 |
AW-ER16 | ER16-A | 25.0 | 142 | 0.12 |
AW-ER20 | ER20-A | 30.0 | 162 | 0.17 |
NUT/ Order no | M TYPE NUT | D | L | G | Weight(kg) |
MN-ER11 | ER11-M | 16.0 | 12 | M13x0.75P | 0.01 |
MN-ER16 | ER16-M | 22.0 | 18 | M19x1.0P | 0.02 |
MN-ER20 | ER20-M | 28.0 | 19 | M24x1.0P | 0.03 |
WRENCH / Order no | M TYPE WRENCH | C | L | Weight(kg) |
MW-ER11 | ER11-M | 16.0 | 12 | 0.03 |
MW-ER16 | ER16-M | 22.0 | 18 | 0.05 |
MW-ER20 | ER20-M | 28.0 | 19 | 0.07 |

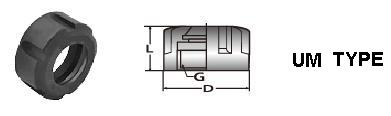

NUT/ Order no | UM TYPE NUT | D | L | G | Weight(kg) |
UM-ER25 | ER25> | 42.0 | 20.0 | M32x1.5P | 0.11 |
UM-ER32 | ER32> | 50.0 | 22.5 | M40x1.5P | 0.15 |
UM-ER40 | ER40> | 63.0 | 29.0 | M50x1.5P | 0.3 |
UM-ER50 | ER50> | 78.0 | 35.0 | M64x2.0P | 0.5 |

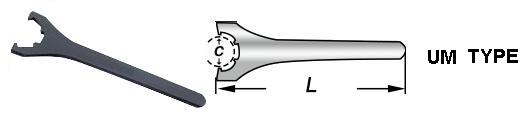

WRENCH / Order no | UM TYPE WRENCH | C | L | Weight(kg) |
UMW-ER25 | ER25> | 65.00 | 206.00 | 0.22 |
UMW-ER32 | ER32> | 75.00 | 253.00 | 0.30 |
UMW-ER40 | ER40> | 90.00 | 289.00 | 0.36 |
UM-WER50 | ER50> | 110.00 | 350.00 | 0.70 |

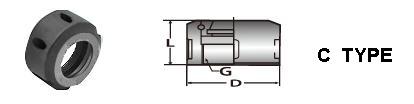

NUT/ Order no | C TYPE NUT | D | L | G | Weight(kg) |
CN-ER25 | ER25型> | 43.0 | 22.0 | M32x1.5P | 0.13 |
CN-ER32 | ER32型> | 51.0 | 24.0 | M40x1.5P | 0.16 |
CN-ER40 | ER40型> | 63.0 | 29.0 | M50x1.5P | 0.31 |

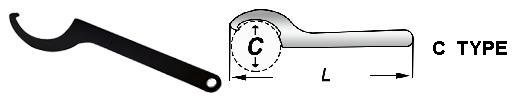

WRENCH / Order no | C TYPE WRENCH | C | L | Weight(kg) |
CW-ER25 | ER25型> | 43.0 | 235.0 | 0.22 |
CW-ER32 | ER32型> | 51.0 | 255.0 | 0.30 |
CW-ER40 | ER40型> | 63.0 | 260.0 | 0.36
|
