  4. BT40 PULL STUD

BT40 PULL STUD

Characteristic

Model : BT40

CNC PULL STUD
CNC machine table special pull bolt puller

PULL STUD

PULL STUD

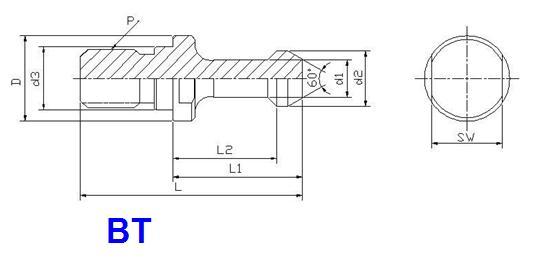

選取尺寸 =>

D

d1

d2

d3

d4

d5

L

L1

L2

L3

L4

SW

P

Weight(kg)

Packing

BT30-45∘

16.5

7

11

12.5

-

-

43

23

18

-

-

13

M12*1.75

0.030

50/100PCS

BT30-60∘

16.5

7

11

12.5

-

-

43

23

18

-

-

13

M12*1.75

0.030

50/100PCS

BT30-90∘

16.5

7

11

12.5

-

-

43

23

18

-

-

13

M12*1.75

0.030

50/100PCS

BT40-45∘

23

10

15

17

-

-

60

35

28

-

-

19

M16*2.0

0.070

50/100PCS

BT40-60∘

23

10

15

17

-

-

60

35

28

-

-

19

M16*2.0

0.070

50/100PCS

BT40-90∘

23

10

15

17

-

-

60

35

28

-

-

19

M16*2.0

0.070

50/100PCS

BT50-45∘

38

17

23

25

-

-

85

45

35

-

-

30

M24*3.0

0.280

25/50PCS

BT50-60∘

38

17

23

25

-

-

85

45

35

-

-

30

M24*3.0

0.280

25/50PCS

BT50-90∘

38

17

23

25

-

-

85

45

35

-

-

30

M24*3.0

0.270

25/50PCS





s: high hardness, high tensile

選取尺寸 =>

D

d1

d2

d3

d4

d5

L

L1

L2

L3

L4

SW

P

Weight(kg)

Packing

BT30-45∘S

16.5

7

11

12.5

-

-

43

23

18

-

-

13

M12*1.75

0.030

50PCS

BT30-60∘S

16.5

7

11

12.5

-

-

43

23

18

-

-

13

M12*1.75

0.030

50PCS

BT40-45∘S

23

10

15

17

-

-

60

35

28

-

-

19

M16*2.0

0.070

50PCS

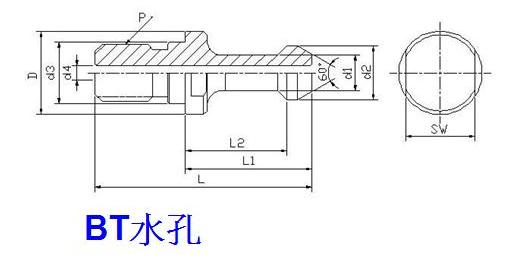

選取尺寸 =>

D

d1

d2

d3

d4

d5

L

L1

L2

L3

L4

SW

P

Weight(kg)

Packing

BT30-45∘(2*3)

16.5

7

11

12.5

2*3

-

43

23

18

-

-

13

M12*1.75

0.030

50/100PCS

BT30-60∘(2*3)

16.5

7

11

12.5

2*3

-

43

23

18

-

-

13

M12*1.75

0.030

50/100PCS

BT40-45∘(4)

23

10

15

17

4

-

60

35

28

-

-

19

M16*2.0

0.070

50/100PCS

BT40-60∘(4)

23

10

15

17

4

-

60

35

28

-

-

19

M16*2.0

0.070

50/100PCS

BT40-90∘(4)

23

10

15

17

4

-

60

35

28

-

-

19

M16*2.0

0.070

50/100PCS

BT40-45∘(5)

23

10

15

17

4

-

60

35

28

-

-

19

M16*2.0

0.060

50/100PCS

BT40-60∘(5)

23

10

15

17

5

-

60

35

28

-

-

19

M16*2.0

0.060

50/100PCS

BT50-45∘(7)

38

17

23

25

7

-

85

45

35

-

-

30

M24*3.0

0.250

25/50PCS

BT50-60∘(7)

38

17

23

25

7

-

85

45

35

-

-

30

M24*3.0

0.250

25/50PCS

BT50-90∘(7)

38

17

23

25

7

-

85

45

35

-

-

30

M24*3.0

0.250

25/50PCS

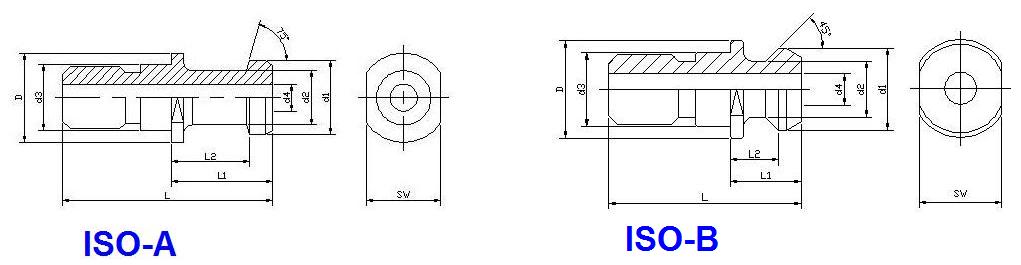

選取尺寸 =>

D

d1

d2

d3

d4

d5

L

L1

L2

L3

L4

SW

P

Weight(kg)

Packing

ISO40-A

23

19

14

17

7

-

54

26

20

-

-

19

M16*2.0

0.070

50/100PCS

ISO50-A

36

28

21

25

11.5

-

74

34

25

-

-

30

M24*3.0

0.200

25/50PCS

ISO40-B

22.5

19

13

17

7.35

-

44.5

16.4

11.2

-

-

19

M16*2.0

0.050

50/100PCS

ISO50-B

37

29.1

19.6

25

11.5

-

65.5

25.5

18

-

-

30

M24*3.0

0.180

25/50PCS

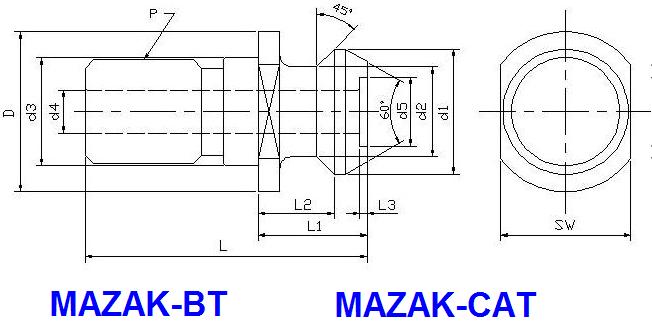

選取尺寸 =>

D

d1

d2

d3

d4

d5

L

L1

L2

L3

L4

SW

P

Weight(kg)

Packing

MAZAK-CAT40

22

18.8

12.5

17

7

-

41.1

16.1

11

-

-

19

M16*2.0

0.050

50PCS

MAZAK-BT40

22

18.8

12.5

17

7

-

44.1

19.1

14

-

-

19

M16*2.0

0.050

50PCS

MAZAK-BT50

37

29

20.8

25

10

16

65.2

25.2

17.6

1.8

-

30

M24*3.0

0.190

25PCS

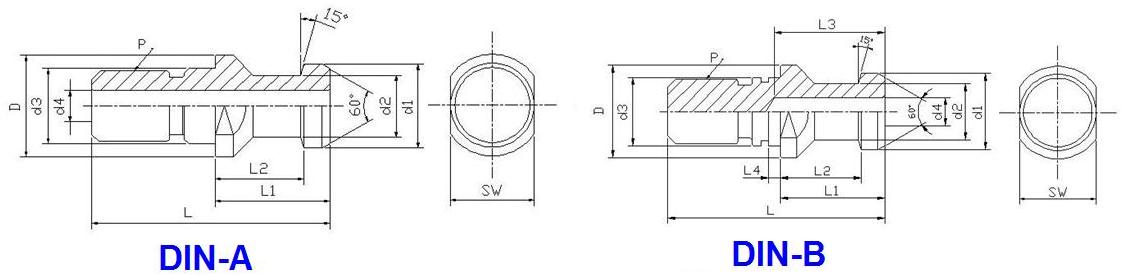

選取尺寸 =>

D

d1

d2

d3

d4

d5

L

L1

L2

L3

L4

SW

P

Weight(kg)

Packing

DIN30-A

17

13

9

13

-

-

44

24

19

-

-

14

M12*1.75

0.040

50/100PCS

DIN40-A

23

19

14

17

7

-

54

26

20

-

-

19

M16*2.0

0.070

50/100PCS

DIN40-A-L

23

19

14

17

7

-

54

29

23

-

-

19

M16*2.0

0.070

50/100PCS

DIN30-B

17

13

9

13

-

-

44

24

19

-

-

14

M12*1.75

0.040

50/100PCS

DIN40-B

23

19

14

17

7

-

54

26

20

27

3

19

M16*2.0

0.080

50/100PCS

DIN40-B-L

23

19

14

17

7

-

54

29

23

27

3

19

M16*2.0

0.080

50/100PCS

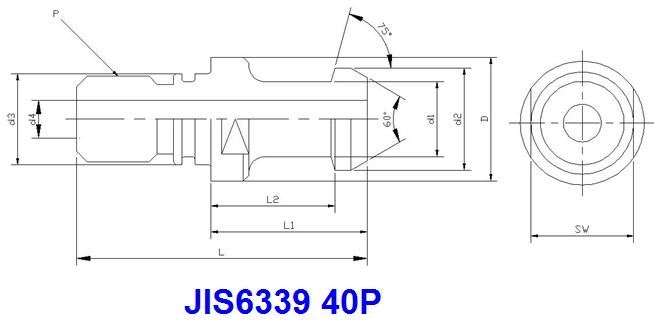

選取尺寸 =>

D

d1

d2

d3

d4

d5

L

L1

L2

L3

L4

SW

P

Weight(kg)

Packing

JIS6339 40P

23

19

14

17

7

-

54

29

23

-

-

19

M16*2.0

0.070

50PCS

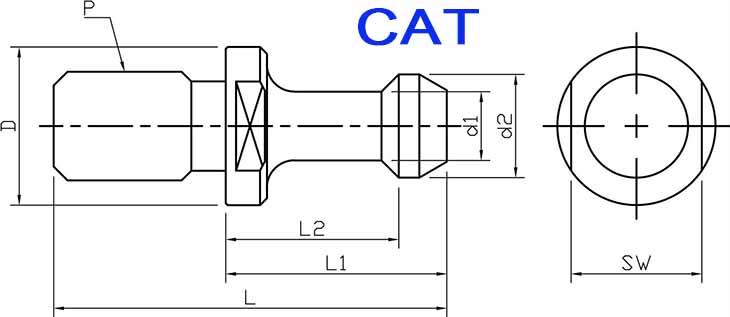

選取尺寸 =>

D

d1

d2

d3

d4

L

L1

L2

SW

P

Packing

CAT40-45°

23

10

15

-

-

57.15

32.15

25.15

19

5/8"

100PCS

CAT40-60°

23

10

15

-

-

57.15

32.15

25.15

19

5/8"

100PCS

CAT40-90°

23

10

15

-

-

57.15

32.15

25.15

19

5/8"

100PCS

CAT50-45°

38

17

23

-

-

78.6

45

35.2

31.8

1"

50PCS

CAT50-60°

38

17

23

-

-

78.6

45

35.2

31.8

1"

50PCS

CAT50-90°

38

17

23

-

-

78.6

45

35.2

31.8

1"

50PCS
