FMB TYPE

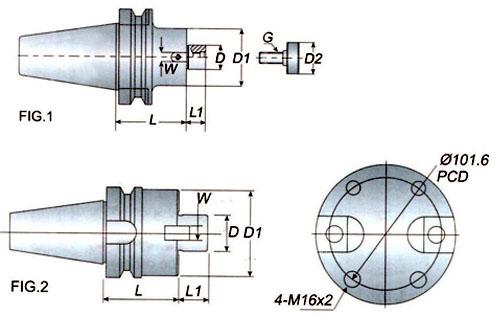

FIG.

D

D1

D2

L

L1

W

G

Weight(kg)

BT30-FMB22-45L

1

22

56

-

45

18

10

M10

0.8

BT30-FMB27-45L

1

27

64

32

45

20

12

M12

1

BT40-FMB22-45L

1

22

48

-

45

18

10

M10

1.4

BT40-FMB22-60L

1

22

48

-

60

18

10

M10

1.6

BT40-FMB22-90L

1

22

48

-

90

18

10

M10

2.1

BT40-FMB22-120L

1

22

48

-

120

18

10

M10

2.4

BT40-FMB22-150L

1

22

48

-

150

18

10

M10

2.8

BT40-FMB22-200L

1

22

48

-

200

18

10

M10

3.5

BT40-FMB22-250L

1

22

48

-

250

18

10

M10

3.5

BT40-FMB27-45L

1

27

60

32

45

20

12

M12

1.7

BT40-FMB27-60L

1

27

60

32

60

20

12

M12

2

BT40-FMB27-90L

1

27

60

32

90

20

12

M12

2.6

BT40-FMB32-60L

1

32

63

41

60

21

14

M16

2.1

BT40-FMB40-60L

1

40

68

47

60

23

16

M16

2.7

BT50-FMB22-45L

1

22

48

-

45

18

10

M10

4

BT50-FMB22-75L

1

22

48

-

75

18

10

M10

4.5

BT50-FMB22-105L

1

22

48

-

105

18

10

M10

4.8

BT50-FMB22-120L

1

22

48

-

120

18

10

M10

5.2

BT50-FMB22-150L

1

22

48

-

150

18

10

M10

5.6

BT50-FMB27-75L

1

27

65

32

75

20

12

M12

5

BT50-FMB27-105L

1

27

65

32

105

20

12

M12

5.8

BT50-FMB32-75L

1

32

73

41

75

21

14

M16

5.4

BT50-FMB32-105L

1

32

73

41

105

21

14

M16

6.6

BT50-FMB32-75L

1

40

85

47

75

23

16

M16

5.9

BT50-FMB32-105L

1

40

85

47

105

23

16

M16

6.9

BT50-FMB60-75L

2

60

128.6

-

75

32

25.4

-

7.3
