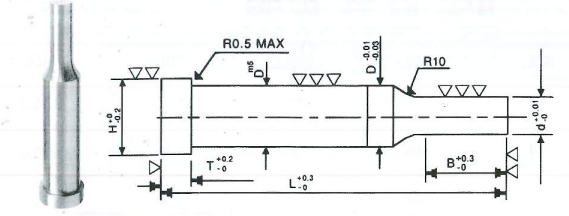

AD/AS/AA SHOULDER PUNCH
Characteristic
Model : AD/AS/AA
AD二級沖頭材質:SKD-11
硬度:HRC58°~60°
AS二級沖頭
材質:SKH-51
硬度:HRC60°~62°
AA二級沖頭
材質:ASP-23
硬度:HRC63°~65°
SHOULDER PUNCH
AD SHOULDER PUNCH
材質:SKD-11
硬度:HRC58°~60°
AS SHOULDER PUNCH
材質:SKH-51
硬度:HRC60°~62°
AA SHOULDER PUNCH
材質:ASP-23
硬度:HRC63°~65°
備註:ASP-60另行報價
| AD | D | H | T | d | B | AS | D | AA | D |
| 40L/50L/60L/70L/80L/90L/100L | 3 | 5 | 4 | 1.0~1.5 | 6 | 40L/50L/60L/70L/80L | 3 | 40L/50L/60L/70L/80L | 4 |
| 1.6~1.9 | 8 | 4 | 5 | ||||||
| 2.0~2.9 | 10 | 5 | 6 | ||||||
| 4 | 6 | 1.0~1.5 | 6 | 6 | 8 | ||||
| 1.6~1.9 | 8 | 8 | 10 | ||||||
| 2.0~2.9 | 10 | 10 | 13 | ||||||
| 3.0~3.9 | 12 | 13 | 16 | ||||||
| 5 | 7 | 2.0~2.9 | 10 | 14 | |||||
| 3.0~3.9 | 12 | 16 | |||||||
| 4.0~4.9 | 13 | 19 | |||||||
| 6 | 8 | 2.0~2.9 | 10 | 21 | |||||
| 3.0~3.9 | 12 | 23 | |||||||
| 4.0~4.9 | 13 | 25 | |||||||
| 5.0~5.9 | 15 | ||||||||
| 8 | 10 | 5 | 3.0~3.9 | 12 | |||||
| 4.0~4.9 | 13 | ||||||||
| 5.0~7.9 | 15 | ||||||||
| 10 | 12 | 4.0~4.9 | 13 | ||||||
| 5.0~5.9 | 15 | ||||||||
| 6.0~9.9 | 15 | ||||||||
| 13 | 15 | 8.0~12.9 | 15 | ||||||
| 14 | 16 | 9.0~13.9 | 15 | ||||||
| 16 | 19 | 10.0~15.9 | 20 | ||||||
| 19 | 22 | 13.0~18.9 | 20 | ||||||
| 21 | 24 | 15.0~20.9 | 20 | ||||||
| 23 | 26 | 17.0~22.9 | 20 | ||||||
| 25 | 28 | 19.0~24.9 | 20 | ||||||
