Characteristic

Model : CK

Purpose: Apply for fixing each kind of working pieces on machining table
Material: S45C, black oxide furnished
Heat treatment：Hardness of each part is HRC32±5°
Product including: stud 24pcs, T nut 6 pcs, flange nut 6 pcs, coupling nut 4 pcs step clamp 6 pcs, step block 6 sets(12pcs), plastic frame
Product spec.: Inch size 3/8”/1/2”/5/8”； Metric size M8/ M10/M12 /M14/M16

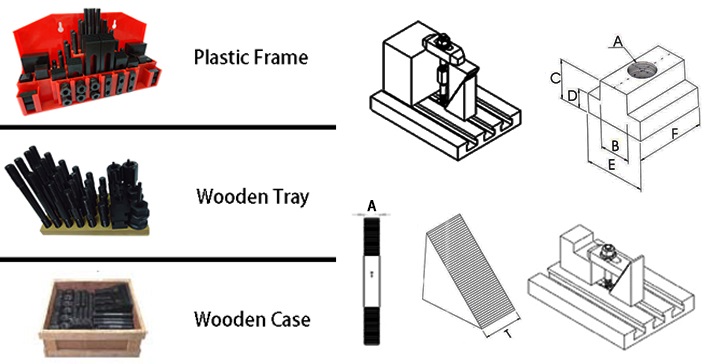

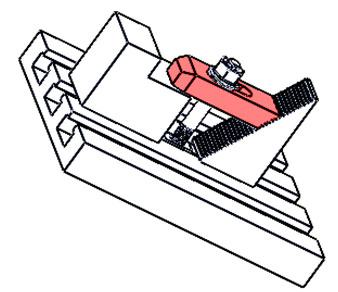

Clamping Kit Assembly

	52-PC set
Packing	plastic frame/woodentray/wooden case
Stud	24 pcs
T-slot nut	6 pcs
Flang nut	6 pcs
Coupling nut	4 pcs

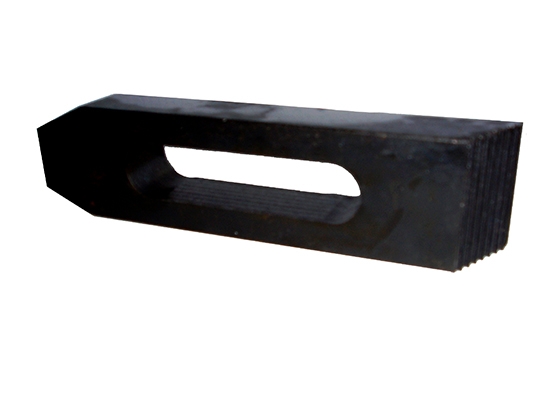

Step clamp	6 pcs

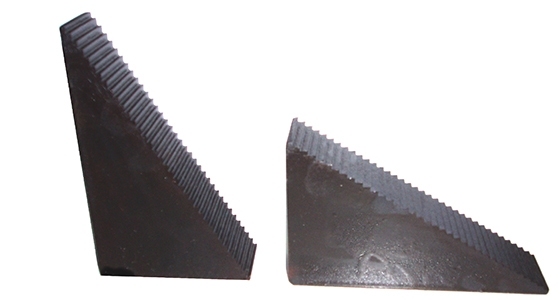

Step block	6 sets(12 pcs)

Order No. ofinch size 52-PC set	A	B(mm)	C(mm)	D(mm)	E(mm)	F(mm)	T(mm)	Packing
CK-1031P	3/8"-16	10.8	12	5.5	17.5	22	25	Plastic frame
CK-1032P	3/8"-16	11.5	12	6.8	22	22	25	Plastic frame
CK-1033P	3/8"-16	13.8	15.9	8	22	28	25	Plastic frame
CK-104A(1/2-121)P	1/2"-12	13.8	15.9	8	22	28	25	Plastic frame
CK-104A(1/2-122)P	1/2"-12	15.5	16	8	25	28	25	Plastic frame
CK-104A(1/2-123)P	1/2"-12	17.5	19	11	28	31	25	Plastic frame
CK-104A(1/2-131)P	1/2"-13UNC	13.8	15.9	8	22	28	25	Plastic frame
CK-104A(1/2-132)P	1/2"-13UNC	15.5	16	8	25	28	25	Plastic frame
CK-104A(1/2-133)P	1/2"-13UNC	17.5	19	11	28	31	25	Plastic frame
CK-104B(1/2-121)P	1/2"-12	13.8	15.9	8	22	28	32	Plastic frame
CK-104B(1/2-122)P	1/2"-12	15.5	16	8	25	28	32	Plastic frame
CK-104B(1/2-123)P	1/2"-12	17.5	19	11	28	31	32	Plastic frame
CK-104B(1/2-131)P	1/2"-13UNC	13.8	15.9	8	22	28	32	Plastic frame
CK-104B(1/2-132)P	1/2"-13UNC	15.5	16	8	25	28	32	Plastic frame
CK-104B(1/2-133)P	1/2"-13UNC	17.5	19	11	28	31	32	Plastic frame
CK-105A1P	5/8"-11	17.5	19	11	22	31	25	Plastic frame
CK-105A2P	5/8"-11	18.6	19	11.9	25	31	25	Plastic frame
CK-105A3P	5/8"-11	20.2	25	14	28	38	25	Plastic frame
CK-105A1W	5/8"-11	17.5	19	11	28	31	25	Wooden tray
CK-105A2W	5/8"-11	18.6	19	11.9	31.8	31	25	Wooden tray
CK-105A3W	5/8"-11	20.2	25	14	32	38	25	Wooden tray
CK-105B1P	5/8"-11	17.5	19	11	28	31	32	Plastic frame
CK-105B2P	5/8"-11	18.6	19	11.9	31.8	31	32	Plastic frame
CK-105B3P	5/8"-11	20.2	25	14	32	38	32	Plastic frame
CK-1061W	3/4"-10	20.2	25	14	32	38	38	Wooden tray
CK-1062W	3/4"-10	21.7	28	14	35	38	38	Wooden tray
CK-1063W	3/4"-10	25	25	15.5	40	44.5	38	Wooden tray
CK-107C	7/8"-9	25	25	15.5	40	38	50	Wooden case
CK-108C	1"-8	27	38	17.5	40	49	50	Wooden case

Order No. of metric size 52-PC set	A	B(mm)	C(mm)	D(mm)	E(mm)	F(mm)	T(mm)	Packing
CK-8P	M8X1.25	9.7	12	6	16	20	25	Plastic frame
CK-10P	M10X1.5	11.5	12	6.8	17.5	22	25	Plastic frame
CK-12A1P	M12X1.75	13.8	15.9	8	22	28	25	Plastic frame
CK-12A2P	M12X1.75	15.5	16	8	25	28	25	Plastic frame
CK-12B1P	M12X1.75	13.8	15.9	8	22	28	32	Plastic frame
CK-12B2P	M12X1.75	15.5	16	8	25	28	32	Plastic frame
CK-14AP	M14X2.0	15.5	16	8	25	28	25	Plastic frame
CK-14BP	M14X2.0	15.5	16	8	25	28	32	Plastic frame
CK-16AP	M16X2.0	17.5	19	11	28	31	25	Plastic frame
CK-16BP	M16X2.0	17.5	19	11	28	31	32	Plastic frame
CK-18W	M18X2.5	19.5	24	12	32	38	38	Wooden tray
CK-20W	M20X2.5	21.7	28	14	35	38	38	Wooden tray
CK-24C	M24X3.0	27.5	36	18	44	49	50	Wooden case

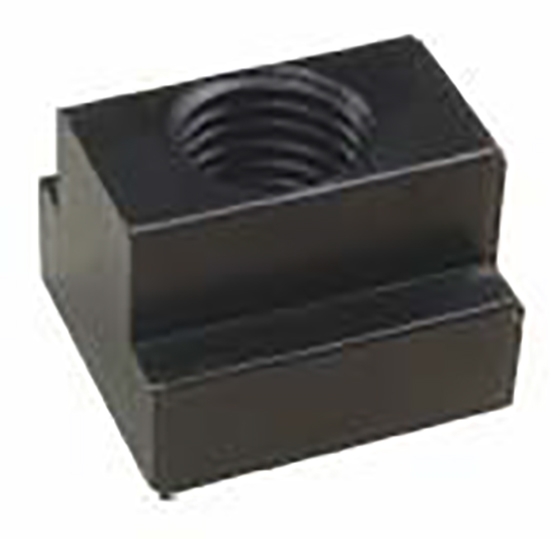

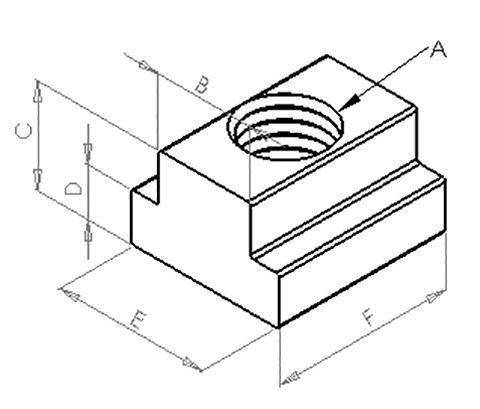

T slot nut

Purpose: Apply on the T slotted working table

Material: S45C, black oxide furnished

Heat treatment: HRC32±5°

Product spec.:
Inch size 3/8”/1/2”/5/8”/3/4”7/8”/1”；
Metric size M8/ M10/M12 /M14/M16/M18/M20/M24

Order no.	A     (Metric )	B	C	D	E	F
TNM-22021	M8X1.25	9.7	12	6	16	22
TNM-23031	M10X1.5	11.5	12	6.8	17.5	22
TNM-24041A	M12X1.75(S)	13.8	16	8	22	28
TNM-24041B	M12X1.75(M)	15.5	16	8	25	28
TNM-24041C	M12X1.75(L)	17.5	19	11	28	31
TNM-24545	M14X2.0	15.5	16	8	25	28
TNM-25051	M16XX2.0	17.5	19	11	28	31
TNM-26061	M18X2.5	19.5	24	12	32	38
TNM-27071	M20X2.5	21.7	28	14	35	38
TNM-28081	M24X3.0	27.5	36	18	44	49

Order no.	A    (Inch )	B	C	D	E	F
TN-22021A	5/16"-18	9.2	12	4.5	16	22
TN-23031A	3/8"-16	10.8	12	5.5	17.5	22
TN-23031B		11.5	12	6.8	22	22
TN-23031C		13.8	16	8	22	28
TN-24041A	1/2"-12	13.8	16	8	22	28
TN-24041B		15.5	16	8	25	28
TN-24041C		17.5	19	11	28	31
TN-24042A	1/2"-13UNC	13.8	16	8	22	28
TN-24042B		15.5	16	8	25	28
TN-24042C		17.5	19	11	28	31
TN-25051A	5/8"-11	17.5	19	11	28	31
TN-25051B		18.6	19	12	31.8	31
TN-25051C		20.2	25	14	32	38
TN-26061A	3/4"-10	20.2	25	14	32	38
TN-26061B		21.7	28	14	35	38
TN-26061C		25	25	15.5	40	44.5
TN-27071A	7/8"-9	25	25	15.5	40	38
TN-28081A	1"-8	27.5	36	18	44	49

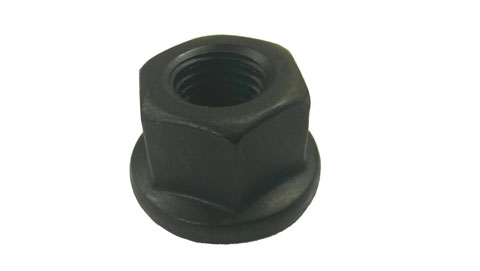

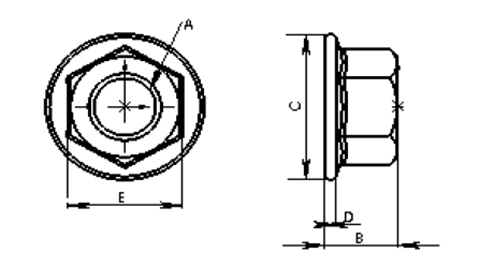

Flange nut

Purpose: Combine with stud and clamp for all kind of clipping application

Material: S45C, black oxide furnished

Hardness of heat treatment：HRC32±5°

Product spec.: nch size 3/8”/1/2”/5/8”/3/4”7/8”/1”； Metric size M8/ M10/M12 /M14/M16/M18/M20/M24

Order no.	A (metric)	B	C	D	E
FNM-12021	M8X1.25	8	18	2	13
FNM-13031	M10X1.5	13	22	4	17
FNM-14041	M12X1.75	17	30	4	21
FNM-14545	M14X2.0	17	30	4	21
FNM-15051	M16X2.0	22	35	5	26
FNM-16061	M18X2.5	25	42	7	32
FNM-17071	M20X2.5	27	42	7	32
FNM-17575	M22X2.5	29	45	7	36
FNM-18081	M24X3.0	32	50	7	41

Order no.	A (Inch)	B	C	D	E
FN-12021	5/16"-18	12	20	2	14
FN-13031	3/8"-16	13	22	4	17
FN-14041	1/2"-12	17	30	4	21
FN-14042	1/2"-13UNC	17	30	4	21
FN-15051	5/8"-11	22	35	5	26
FN-16061	3/4"-10	27	42	7	32
FN-17071	7/8"-9	29	45	7	36
FN-18081	1"-8	32	50	7	41

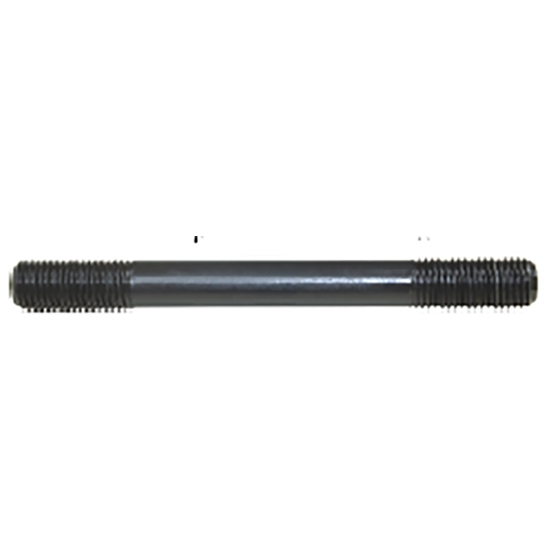

Clamping stud

Purpose: Operate with flange nut and every kind of clamping plain for fixing work piece on slotted table.

Material: S45C, black oxide furnished

Heat treatment： HRC 32±5°

Product spec: Inch size 5/16”/3/8”/1/2”/5/8”/3/4”7/8”/1”
Metric size M8/M10/M12/M14 /M16/M18/M20/M22/M24

Order no.	Metric spec.	A(mm)	B(mm)
CSM-42002	M8×P1.25×50	50	20
CSM-42003	M8×P1.25×75	75	30
CSM-42004	M8×P1.25×100	100	40
CSM-42005	M8×P1.25×125	125	40
CSM-42006	M8×P1.25×150	150	40
CSM-42007	M8×P1.25×175	175	40
CSM-42008	M8×P1.25×200	200	40
CSM-43002	M10×P1.5×75	50	20
CSM-43003	M10×P1.5×75	75	30
CSM-43004	M10×P1.5×100	100	40
CSM-43005	M10×P1.5×125	125	40
CSM-43006	M10×P1.5×150	150	40
CSM-43007	M10×P1.5×175	175	40
CSM-43008	M10×P1.5×200	200	40
CSM-44002	M12×P1.75×50	50	20
CSM-44003	M12×P1.75×75	75	30
CSM-44004	M12×P1.75×100	100	40
CSM-44005	M12×P1.75×125	125	40
CSM-44006	M12×P1.75×150	150	40
CSM-44007	M12×P1.75×175	175	40
CSM-44008	M12×P1.75×200	200	40
CSM-44009	M12×P1.75×225	225	45
CSM-44010	M12×P1.75×250	250	45
CSM-44012	M12×P1.75×300	300	45
CSM-44014	M12×P1.75×350	350	45
CSM-44016	M12×P1.75×400	400	45
CSM-44503	M14×P2.0×75	75	30
CSM-44504	M14×P2.0×100	100	40
CSM-44505	M14×P2.0×125	125	40
CSM-44506	M14×P2.0×150	150	40
CSM-44507	M14×P2.0×175	175	40
CSM-44508	M14×P2.0×200	200	40
CSM-44509	M14×P2.0×225	225	45
CSM-44510	M14×P2.0×250	250	45
CSM-44512	M14×P2.0×300	300	45
CSM-44514	M14×P2.0×350	350	45
CSM-44516	M14×P2.0×400	400	45
CSM-45003	M16×P2.0×75	75	30
CSM-45004	M16×P2.0×100	100	45
CSM-45005	M16×P2.0×125	125	45
CSM-45006	M16×P2.0×150	150	45
CSM-45007	M16×P2.0×175	175	45
CSM-45008	M16×P2.0×200	200	45
CSM-45009	M16×P2.0×225	225	45
CSM-45010	M16×P2.0×250	250	45
CSM-45012	M16×P2.0×300	300	45
CSM-45014	M16×P2.0×350	350	45
CSM-45016	M16×P2.0×400	400	45
CSM-45018	M16×P2.0×450	450	45
CSM-45020	M16×P2.0×500	500	45
CSM-46003	M18×P2.5×75	75	30
CSM-46004	M18×P2.5×100	100	40
CSM-46005	M18×P2.5×125	125	45
CSM-46006	M18×P2.5×150	150	45
CSM-46007	M18×P2.5×175	175	45
CSM-46008	M18×P2.5×200	200	45
CSM-46010	M18×P2.5×250	250	50
CSM-46012	M18×P2.5×300	300	50
CSM-46014	M18×P2.5×350	350	50
CSM-46016	M18×P2.5×400	400	50
CSM-46018	M18×P2.5×450	450	50
CSM-46020	M18×P2.5×500	500	50
CSM-47003	M20×P2.5×75	75	30
CSM-47004	M20×P2.5×100	100	40
CSM-47005	M20×P2.5×125	125	45
CSM-47006	M20×P2.5×150	150	45
CSM-47007	M20×P2.5×175	175	45
CSM-47008	M20×P2.5×200	200	45
CSM-47009	M20×P2.5×225	225	50
CSM-47010	M20×P2.5×250	250	50
CSM-47011	M20×P2.5×275	275	50
CSM-47012	M20×P2.5×300	300	50
CSM-47014	M20×P2.5×350	350	50
CSM-47016	M20×P2.5×400	400	50
CSM-47018	M20×P2.5×450	450	50
CSM-47020	M20×P2.5×500	500	50
CSM-48003	M24×P3.0×75	75	30
CSM-48004	M24×P3.0×100	100	40
CSM-48005	M24×P3.0×125	125	45
CSM-48006	M24×P3.0×150	150	45
CSM-48007	M24×P3.0×175	175	45
CSM-48008	M24×P3.0×200	200	45
CSM-48010	M24×P3.0×250	250	50
CSM-48012	M24×P3.0×300	300	50
CSM-48014	M24×P3.0×350	350	50
CSM-48016	M24×P3.0×400	400	50
CSM-48018	M24×P3.0×450	450	50
CSM-48020	M24×P3.0×500	500	50

Order no.	Inch spec.	A(mm)	B(mm)
CS-42003	5/16"-18×3"	75	30
CS-42004	5/16"-18×4"	100	40
CS-42005	5/16"-18×5"	125	40
CS-42006	5/16"-18×6"	150	40
CS-42007	5/16"-18×7"	175	40
CS-42008	5/16"-18×8"	200	40
CS-43003	3/8"-16×3"	75	30
CS-43004	3/8"-16×4"	100	40
CS-43005	3/8"-16×5"	125	40
CS-43006	3/8"-16×6"	150	40
CS-43007	3/8"-16×7"	175	40
CS-43008	3/8"-16×8"	200	40
CS-44003	1/2"-12×3"	75	30
CS-44004	1/2"-12×4"	100	40
CS-44005	1/2"-12×5"	125	40
CS-44006	1/2"-12×6"	150	40
CS-44007	1/2"-12×7"	175	40
CS-44008	1/2"-12×8"	200	40
CS-44009	1/2"-12×9"	225	45
CS-44010	1/2"-12×10"	250	45
CS-44012	1/2"-12×12"	300	45
CS-44014	1/2"-12×14"	350	45
CS-44016	1/2"-12×16"	400	45
CS-44503	1/2"-13UNC×3"	75	30
CS-44504	1/2"-13UNC×4"	100	40
CS-44505	1/2"-13UNC×5"	125	40
CS-44506	1/2"-13UNC×6"	150	40
CS-44507	1/2"-13UNC×7"	175	40
CS-44508	1/2"-13UNC×8"	200	40
CS-44509	1/2"-13UNC×9"	225	45
CS-44510	1/2"-13UNC×10"	250	45
CS-44512	1/2"-13UNC×12"	300	45
CS-44514	1/2"-13UNC×14"	350	45
CS-44516	1/2"-13UNC×16"	400	45
CS-45003	5/8"-11×3"	75	30
CS-45004	5/8"-11×4"	100	40
CS-45005	5/8"-11×5"	125	40
CS-45006	5/8"-11×6"	150	40
CS-45007	5/8"-11×7"	175	40
CS-45008	5/8"-11×8"	200	40
CS-45009	5/8"-11×9"	225	45
CS-45010	5/8"-11×10"	250	45
CS-45011	5/8"-11×11"	275	45
CS-45012	5/8"-11×12"	300	45
CS-45014	5/8"-11×14"	350	45
CS-45016	5/8"-11×16"	400	45
CS-45018	5/8"-11×18"	450	45
CS-45020	5/8"-11×20"	500	45
CS-46003	3/4"-10×3"	75	30
CS-46004	3/4"-10×4"	100	40
CS-46005	3/4"-10×5"	125	45
CS-46006	3/4"-10×6"	150	45
CS-46007	3/4"-10×7"	175	45
CS-46008	3/4"-10×8"	200	45
CS-46009	3/4"-10×9"	225	50
CS-46010	3/4"-10×10"	250	50
CS-46011	3/4"-10×11"	275	50
CS-46012	3/4"-10×12"	300	50
CS-46014	3/4"-10×14"	350	50
CS-46016	3/4"-10×16"	400	50
CS-46018	3/4"-10×18"	450	50
CS-46020	3/4"-10×20"	500	50
CS-46022	3/4"-10×22"	550	50
CS-46024	3/4"-10×24"	600	50
CS-47003	7/8"-9×3"	75	30
CS-47004	7/8"-9×4"	100	45
CS-47005	7/8"-9×5"	125	45
CS-47006	7/8"-9×6"	150	45
CS-47007	7/8"-9×7"	175	45
CS-47008	7/8"-9×8"	200	45
CS-47010	7/8"-9×10"	250	50
CS-47012	7/8"-9×12"	300	50
CS-47014	7/8"-9×14"	350	50
CS-47016	7/8"-9×16"	400	50
CS-47018	7/8"-9×18"	450	50
CS-47020	7/8"-9×20"	500	50
CS-48003	1"-8×3"	75	30
CS-48004	1"-8×4"	100	45
CS-48005	1"-8×5"	125	45
CS-48006	1"-8×6"	150	45
CS-48007	1"-8×7"	175	45
CS-48008	1"-8×8"	200	45
CS-48010	1"-8×10"	250	50
CS-48012	1"-8×12"	300	50
CS-48014	1"-8×14"	350	50
CS-48016	1"-8×16"	400	50
CS-48018	1"-8×18"	450	50
CS-48020	1"-8×20"	500	50

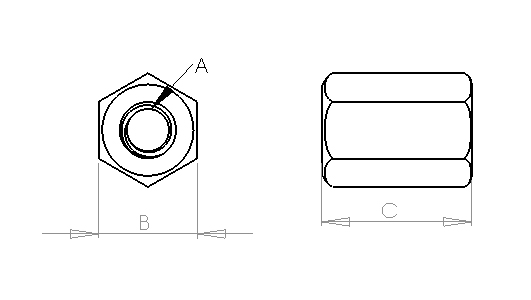

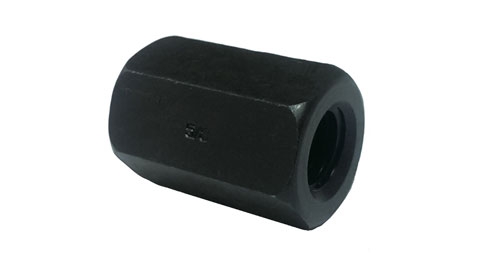

Coupling nut

Purpose: Connect two studs on both ends of nut to extend the length of applying range

Material: S45C, black oxide finished

Hardness of heat treatment：HRC32±5°

Product spec.: Inch size 3/8”/1/2”/5/8”/3/4”/7/8”/1”； Metric size M10/M12 /M14/M16/M18/M20/M24

Order no.	A (Metric)	B	C
CNM-32021	M8X1.25	13	22
CNM-33031	M10X1.5	17	25
CNM-34041	M12X1.75	21	32
CNM-34545	M14X2.0	21	32
CNM-35051	M16X2.0	26	40
CNM-36061	M18X2.5	32	48
CNM-37071	M20X2.5	32	48
CNM-38081	M24X3.0	41	63

Order no.	A (Inch)	B	C
CN-33031	3/8"-16	17	25
CN-34041	1/2"-12	21	32
CN-34042	1/2"-13UNC	21	32
CN-35051	5/8"-11	26	40
CN-36061	3/4"-10	32	48
CN-37071	7/8"-9	36	48
CN-38081	1"-8	41	63

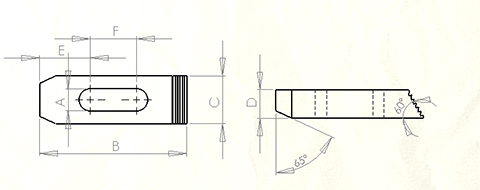

Step clamp

Purpose: Engage the teeth into teeth of step block to adjust the clamping height

Material: S45C, black oxide furnished

Heat treatment: HRC32±5°

Product spec.:
3/8S 3/8M 3/8L (slot width 11mm)
1/2S 1/2M 1/2L (slot width 15mm)
5/8S 5/8M 5/8L (slot width 18mm)
3/4S 3/4M 3/4L (slot width 21mm)
1S 1M 1L (slot width 26mm)



Order no.	Model	A	B	C	D	E	F	Applied stud
								Inch	Metric
SC-63031	3/8(S)	11	65	25.4	12.7	25.5	19	3/8	M10
SC-63032	3/8(M)	11	100	26	15	30.5	30
SC-63033	3/8(L)	11	150	28.5	19	40.5	54
SC-64041	1/2(S)	15	65	30	13	25	16	1/2	M12-M14
SC-64042	1/2(M)	15	100	32	19	34	31
SC-64043	1/2(L)	15	150	32	22	47	55
SC-65051	5/8(S)	18	65	32	16	25	14	5/8	M16
SC-65052	5/8(M)	18	100	38	19	33	30
SC-65053	5/8(L)	18	150	38	22	44	57
SC-66061	3/4(S)	21	100	38	19	33	30	3/4	M18-20
SC-66062	3/4(M)	21	150	38	25	48	50
SC-66063	3/4(L)	21	200	44.5	28.5	63	70
SC-68081	1(S)	26	150	49	32	51	39	7/8-1	M22,M24
SC-68082	1(M)	26	200	49	38	63	69
SC-68083	1(L)	26	250	49	38	85	74

Step block

Purpose: The height of block is adjustable when stack up a pair of step block

Material: S45C, black oxide furnished

Heat treatment：HRC32±5°

Product spec.:
3/8S 3/8M 3/8L (thickness 25mm)
1/2S 1/2M 1/2L (thickness 32mm)
3/4S 3/4M 3/4L (thickness 38mm)
1S 1M 1L (thickness 50mm)

Order no.	Model	A	B	C
SB-53031	3/8（S）	19	30	25
SB-53032	3/8（M）	29	47	25
SB-53033	3/8（L）	59	97	25
SB-54041	1/2（S）	19	30	32
SB-54042	1/2（M）	27	45	32
SB-54043	1/2（L）	59	97	32
SB-56061	3/4（S）	38	59	38
SB-56062	3/4（M）	61	97	38
SB-56063	3/4（L）	88	140	38
SB-58081	1（S）	37	63	50
SB-58082	1（M）	59	98	50
SB-58083	1（L）	81	140	50
