Characteristic

Model : 3D-80.460.00

The Digital 3D-Sensor is a further development of the time proven mechanical 3D-Sensor. It serves for approaching workpiece edges on milling and EDM machines.
The spindle may be positioned quickly and safely on the references edge. The approaching operation can be exactly monitored on the digital display. The zero points can be set without any calculations because the spindle axis is positioned exactly on the approached edge.
The digital display has large numbers that measure in increments of 0.001 mm. It can be easily read from a long distance (i.e. when mounted on a large machining center). The digital display is water- and dust-proofed according to IP 64 and can be stored in the tool magazine of the machine.
Please take note: The given measuring precision of 0.005 mm only applies, if the original HAIMER probe tips are used.
Included in delivery: 3D-Sensor Digital with clamping shank Ø 20 mm, short probe tip Ø 4 mm

Digital type 3D edge finder

German original

Digital type 3D-Sensor 80.460.00

型 號	尺寸
3D-80.460.00	German original (that came within a short probe)
3D-S	4 mm x   25L  Short probe tip
3D-L	8 mm x   65L  Long probe tip

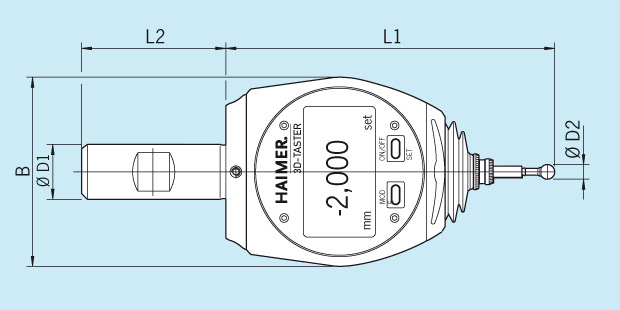

Technical Data

L1 [mm]	113
L2 [mm]	50
Ø D1 [mm]	20
Ø D2 [mm]	4
B [mm]	65
Smallest unit of measure [mm]	0,001
Repeatability [mm]	0,001
Measuring accuracy [mm]	0,005
Display mode	inch / metric
Display size [mm]	45 x 23
Height of numbers [mm]	8,5
Service life of battery approx. (continuos operation) [hrs]	3000
