Characteristic

Model : PML

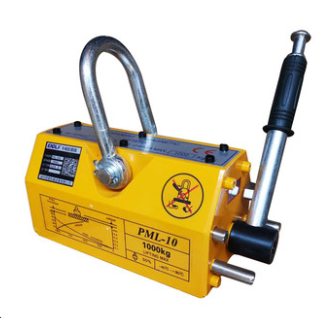

Switching Permanent Magnetic Lifter
Permanent magnet lifter
Also known as the permanent magnet suction hanger, magnetic crane, magnetic jack, lifting magnet, lifting permanent magnets, permanent magnets and so on. It has a small volume, a stronger holding force, no electricity, a remanence of almost zero, and a high safety factor.
1. Made of permanent magnets, never demagnetize, no electricity
2, small size, light weight, easy to carry, simple operation
3, the scope of application: handling steel, iron and cylindrical iron

Switching Permanent Magnetic Lifter

Switching Permanent Magnetic Lifter

型號	額定負重(KGF)	被吊鋼板厚度圍(MM)	鋼板最大長度(MM)	額定負重(KG)	最大拉脫力(KG)	長	寬	高	手柄長(MM)	使用溫度(。C)	淨重(kg)
PML-100	100	5~25	500	100	350	92	62	72	155	<70	2.5
PML-200	200	10~30	600	200	600	126	62	72	155		4
PML-400	400	20~40	800	400	1200	165	82	95	200		9.5
PML-600	600	25~50	1000	600	1800	210	114	115	230		19
PML-1000	1000	40~80	1300	1000	3000	266	155	140	255		34
PML-1500	1500	45~90	1500	1500	4500	310	155	140	255		42
PML-2000	2000	50~100	1800	2000	6000	354	164	166	340		65
PML-3000	3000	60~120	2300	3000	8300	444	164	166	380		85
PML-4000	4000	70~140	2500	4000	9500	532	170	190	550		120
PML-5000	5000	80~160	3000	5000	12500	615	214	215	600		205
PML-10000	10000	100~280	3500	10000	20000	812	234	290	800		390

1. During the use of a strong magnetic lifter, it should be prevented from knocking and bumping so as not to affect the performance.Switching-type permanent magnets, pay attention to the matters needing attention and maintenance and safety instructions:

2. When the bottom surface of the jacking magnet is not in contact with steel, do not pull the handle.

3. During lifting, it is forbidden to stand or cross under the workpiece held by a strong magnetic jack.

4. Always keep the suction surface of the magnetic jack clean and flat.

5. Always check the quality of the top handle sliding chain and positioning pin of the flat handle to ensure that it is locked and used safely.

6. The magnetic jack must be calibrated two years from the date of use to ensure safety.

7. Work without power or other power support
