Characteristic

Model : XV2

Cobalt-containing high hardness, new coating, super wear resistant
The knife edge is sharp and the chip removal is brisk.
The inner arc of the blade corner reduces the wear of the blade during cutting and improves the life of the knife.

HSS cobalt-containing end mill

HSS cobalt-containing end mill

Cobalt-containing high hardness, new coating, super wear resistant

The knife edge is sharp and the chip removal is brisk.

The inner arc of the blade corner reduces the wear of the blade during cutting and improves the life of the knife.

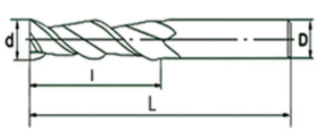

d	D	I	L
6	6	19	63
7	8	22	66
8	8	22	66
9	10	25	75
10	10	30	75
11	12	35	85
12	12	35	85
13	12	35	95
14	12	35	85
15	16	40	85
16	16	40	95
18	16	40	95
20	20	45	95
22	20	45	110
25	20	50	120
28	25	55	125
30	25	70	150
32	32	70	150
