Characteristic

Model : XXRT-HSK63A

Secure Clamping, Accurate Monitoring

To ensure consistent machining precision and spindle safety, the HSK63A Pull Force Gauge offers real-time detection of spindle clamping force. Insufficient pull force may lead to tool chatter, wear, and machining errors. This product delivers:

Digital display for quick and accurate readings

Compatible with HSK and BT tool systems

High-precision load cell ensures reliable force measurement

Dual-mode charging via USB and TYPE-C for extended operation

Durable construction with reset function for easy use

Spindle Gripper Force Tester Guage

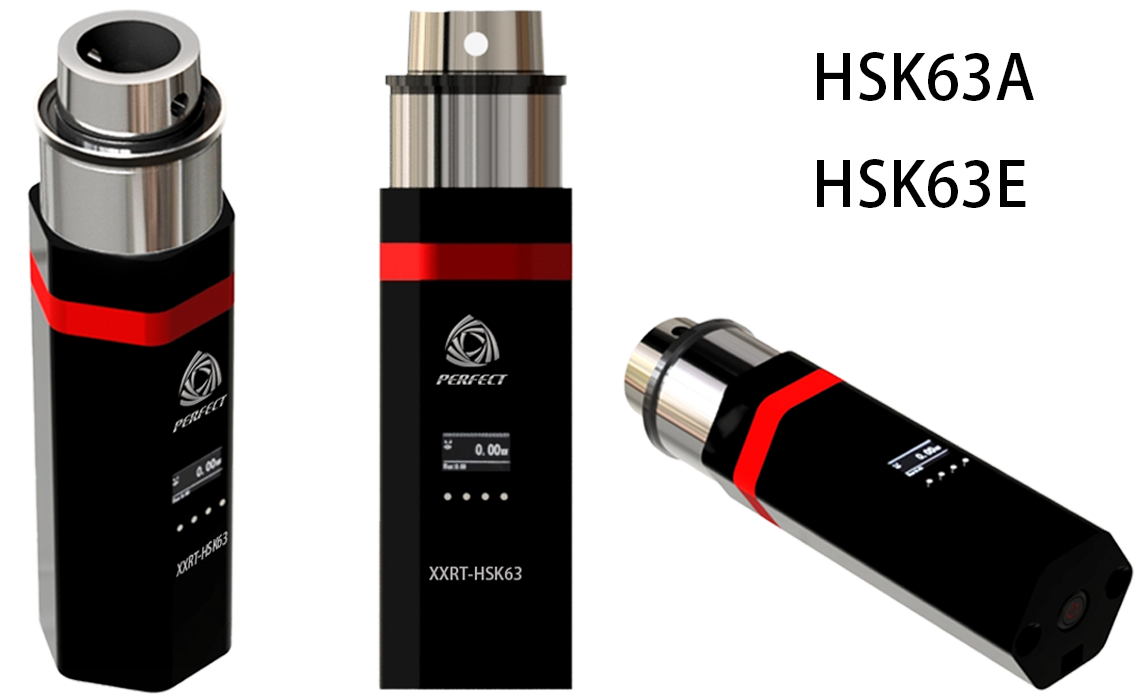

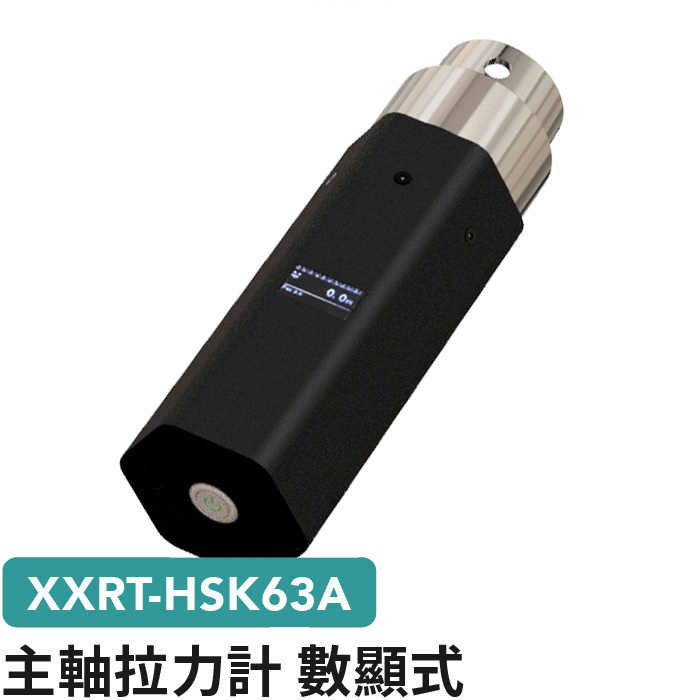

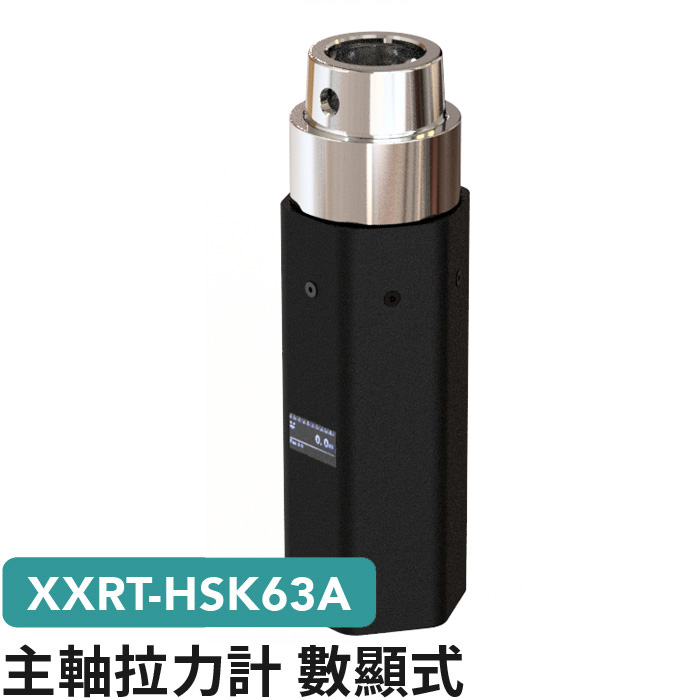

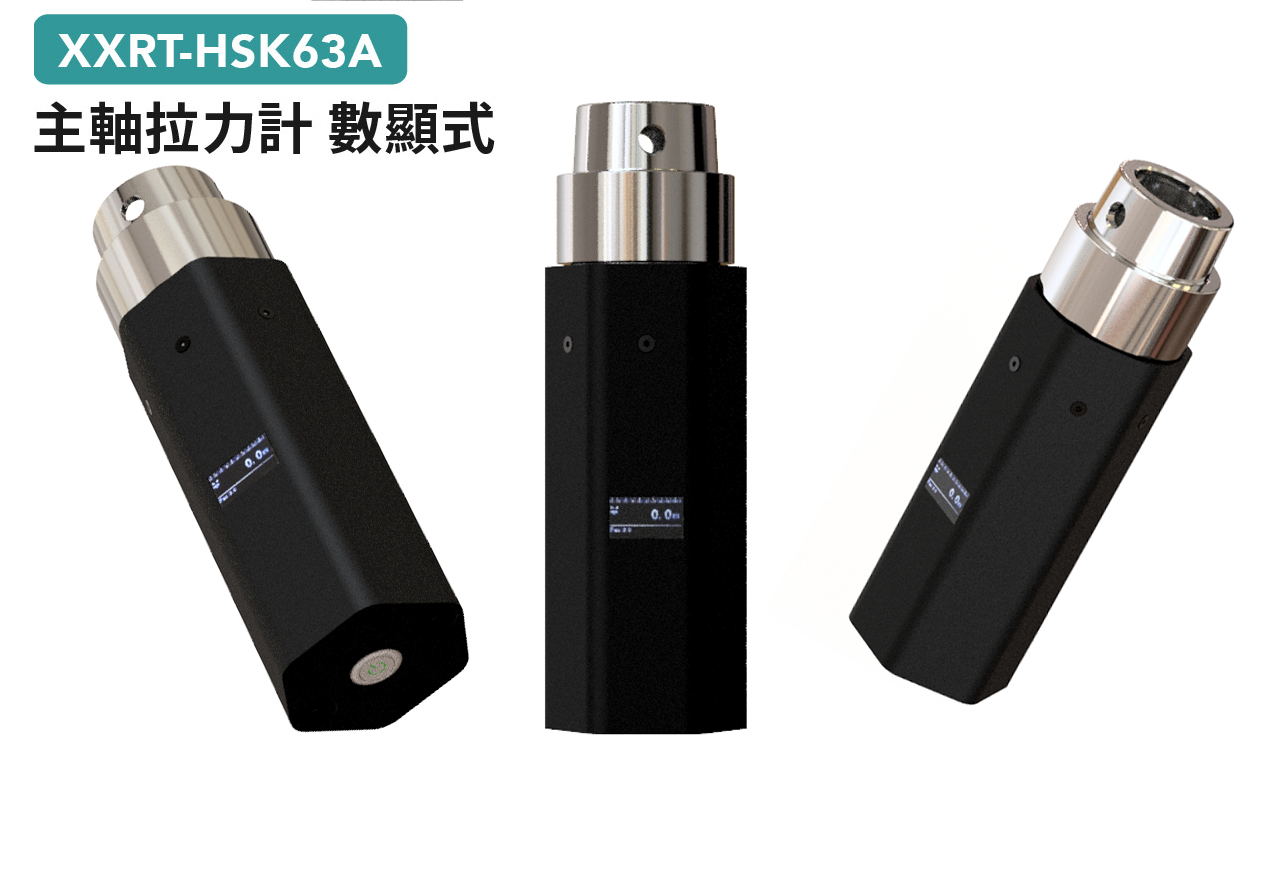

HSK63A Digital Pull Force Gauge
Accurate Display・Real-Time Detection・Reliable Machining

The HSK63A is a precision electronic pull force gauge designed for HSK and BT spindle systems. Equipped with a high-sensitivity sensor and a clear digital OLED screen, it provides real-time measurement of spindle clamping force. USB and TYPE-C dual charging modes ensure ease of use and extended battery life.

Why use a pull force gauge?
Insufficient spindle clamping force can lead to unstable machining, abnormal tool wear, and spindle damage. Regular monitoring with a pull force gauge helps to:

• Prevent tool slippage and clamping failure

• Reduce vibration and improve surface finish

• Extend the lifespan of tools and spindles

• Avoid machine failure and accidents

• Ensure consistent performance of CNC machines

Compatible types: HSK63
Measurement unit: kN (automatically converted to kgf)
Features: Built-in reset, long-press shutdown, OLED display, aluminum casing, anti-impact protection

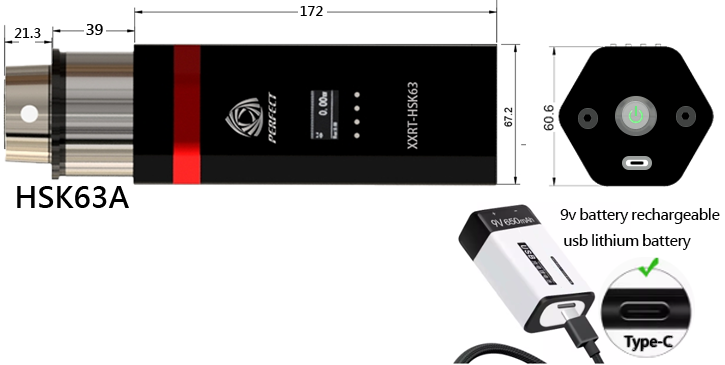

Specifications

XXR-HSK Spindle Grip Force Tester Guage

XXTR-TYPE	Clamping force/kN	Max. pulling force/kN	Gross weight/kg
HSK-63A	18	30	4
HSK-63E	18	30	4

---

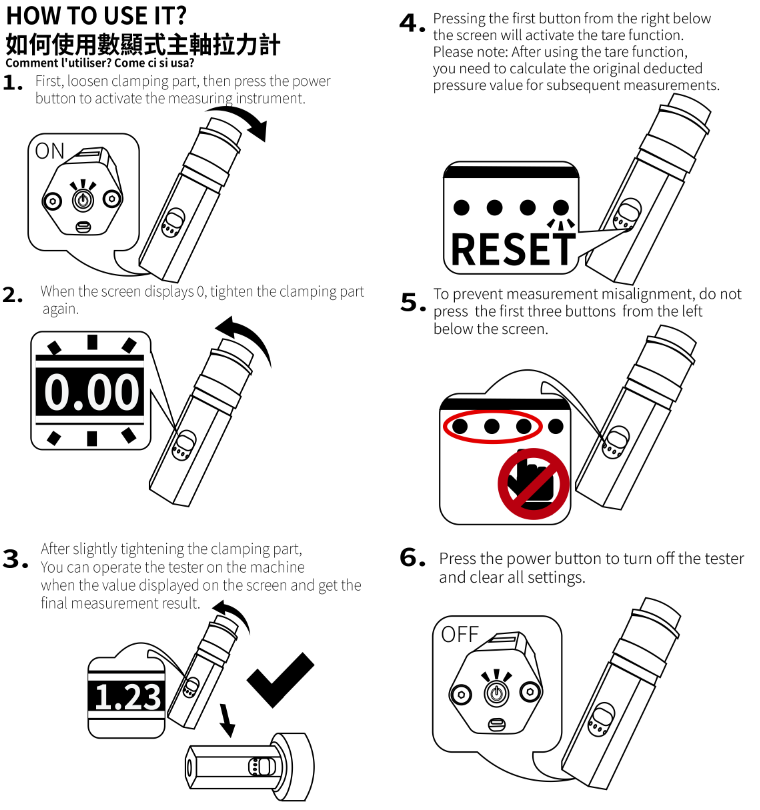

Product instructions

30KN  tolerances 6N
