Characteristic

Model : EA2

▪ Ideal for carving and deburring of metals such as iron and steel
▪ Cross-cut teeth produce fine chips and reduce clogging
▪ Made from premium hardened tungsten carbide for exceptional durability

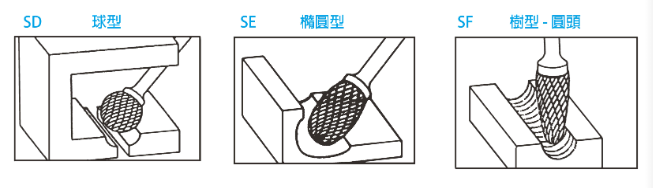

▪ Various shapes and sizes available for different machining applications
▪ 6mm shank fits standard rotary tools
▪ Precision-engineered for efficient material removal and smooth finish
▪ Please refer to the actual product packaging for final specifications

Tungsten steel hob

	Item Code	Diameter	Blade Length	Shank Diameter	Unit

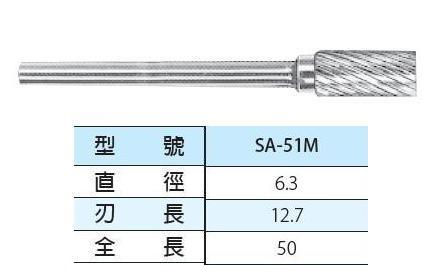

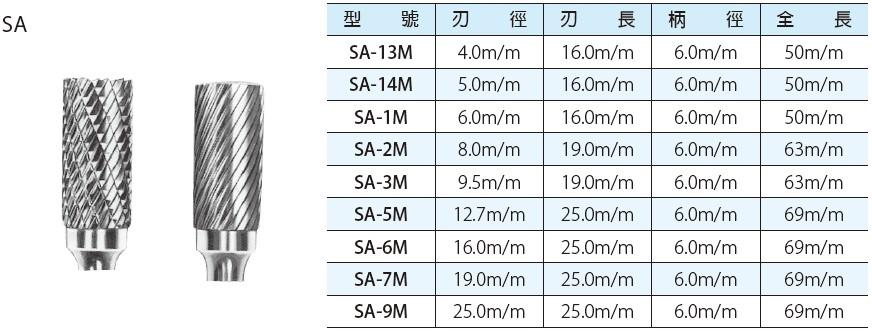

A	3JEEASA06	6	16	6	pc.
	3JEEASA08	8	20	6	pc.
	3JEEASA10	10	20	6	pc.
	3JEEASA12	12	25	6	pc.
	3JEEASA16	16	25	6	pc.
B	3JEEASB06	6	16	6	pc.
	3JEEASB08	8	20	6	pc.
	3JEEASB10	10	20	6	pc.
	3JEEASB12	12	25	6	pc.
	3JEEASB16	16	25	6	pc.
C	3JEEASC06	6	16	6	pc.
	3JEEASC08	8	20	6	pc.
	3JEEASC10	10	20	6	pc.
	3JEEASC12	12	25	6	pc.
	3JEEASC16	16	25	6	pc.
D	3JEEASD06	6	5.4	6	pc.
	3JEEASD08	8	7.2	6	pc.
	3JEEASD10	10	9	6	pc.
	3JEEASD12	12	10	6	pc.
	3JEEASD16	16	14	6	pc.

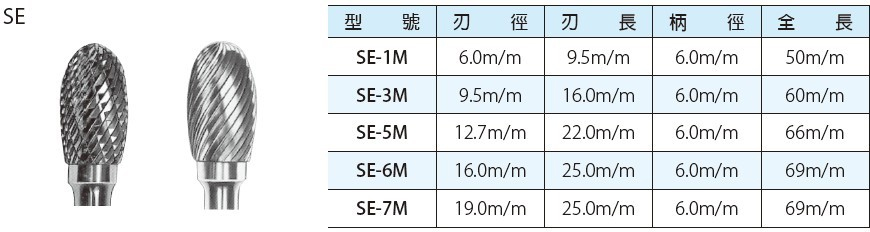

E	3JEEASE06	6	10	6	pc.
	3JEEASE08	8	13	6	pc.
	3JEEASE10	10	16	6	pc.
	3JEEASE12	12	12	6	pc.
	3JEEASE16	16	25	6	pc.

	Item Code	Diameter	Blade Length	Shank Diameter	Unit

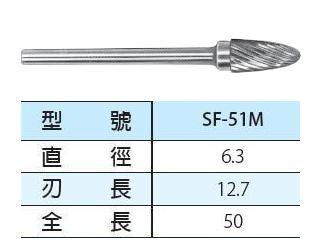

F	3JEEASF06	6	18	6	pc.
	3JEEASF10	10	20	6	pc.
	3JEEASF12	12	25	6	pc.

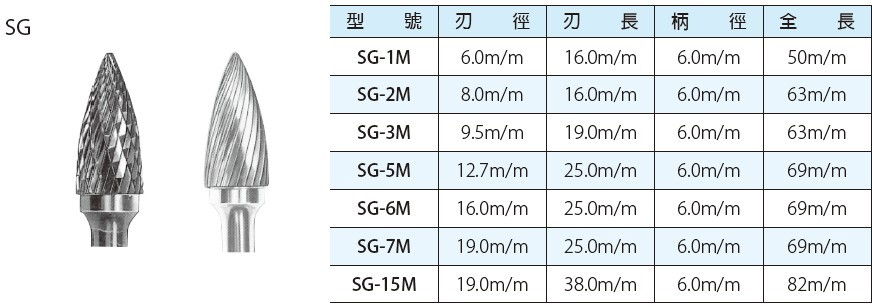

G	3JEEASG06	6	18	6	pc.
	3JEEASG08	8	20	6	pc.
	3JEEASG10	10	20	6	pc.
	3JEEASG12	12	25	6	pc.
H	3JEEASH06	6	18	6	pc.
	3JEEASH08	8	20	6	pc.
	3JEEASH10	10	25	6	pc.
	3JEEASH12	12	32	6	pc.
	3JEEASH16	16	36	6	pc.

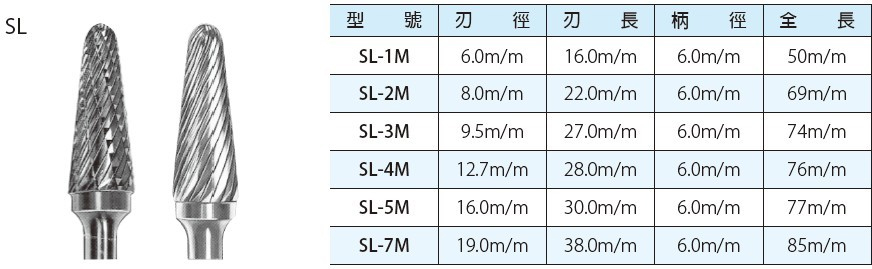

L	3JEEASL06	6	16	6	pc.
	3JEEASL08	8	22	6	pc.
	3JEEASL10	10	25	6	pc.
	3JEEASL12	12	28	6	pc.
	3JEEASL16	16	33	6	pc.

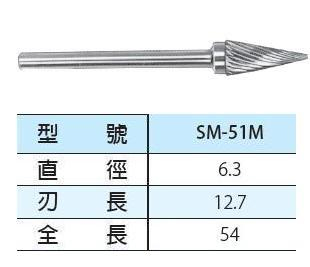

M	3JEEASM06	6	18	6	pc.
	3JEEASM10	10	20	6	pc.
	3JEEASM12	12	25	6	pc.
	3JEEASM16	16	25	6	pc.
