HVVY Magnetic V-seat
Characteristic

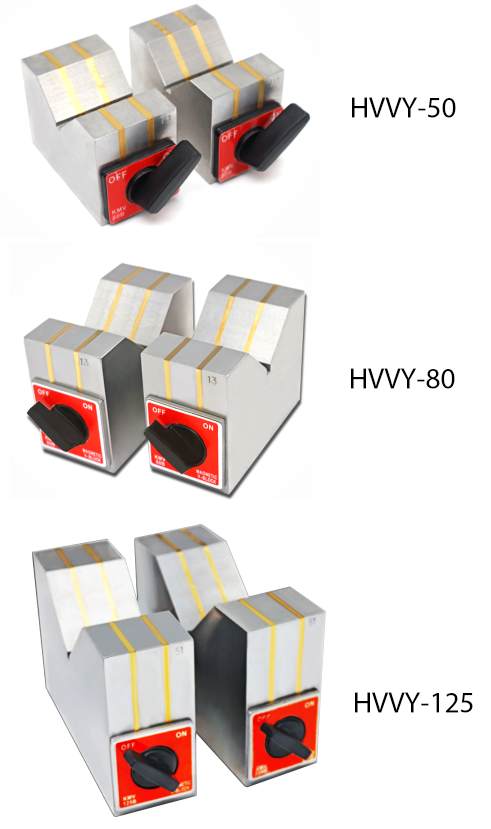

Model : HVVY
Magnetic V-seatMagnetic V-seat
Magnetic V-seat

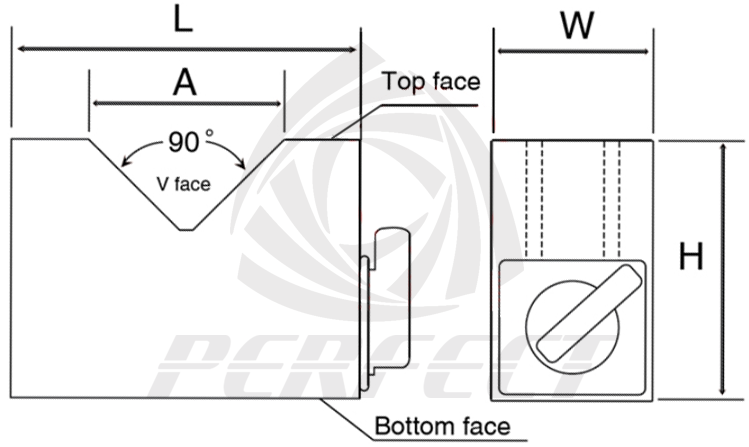

MODEL | Magnetic force | Base(LxWxH) | V slot opening / groove depth |
HVVY-50 | 147N | 70*50*40/mm | 30/17mm |
HVVY-80 | 196N | 100*80*50/mm | 53/25mm |
HVVY-125 | 226N | 150*50*100/mm | 42/25mm |
