Characteristic

Model : HVYN

the Noga magnetic base serves as a versatile support system for securing dial indicators, various measuring tools, and an array of applications including machine assembly, medical equipment, photography, lighting, acoustics, and more. The Noga magnetic base holder comprises three primary components: the base itself, adjustable arms, and the top section. Operating the Noga magnetic base is as simple as flipping a switch, enabling precise adjustments to be made effortlessly.

NOGA Magnetic Base

NOGA Magnetic lever dial indicator holder Universal fine-tuning magnetic large table holder

We provide diverse selection of magnetic bases offered, encompassing various models and sizes. These magnetic bases range from compact, miniature versions to larger ones. The compact magnetic bases are accompanied by correspondingly small holders, making them the perfect choice for situations where space is limited.

Item	Magnetic Force	Lower Arm/Upper Arm / Full Length	Magnetic Base Dimension	Screw Hole	Weight

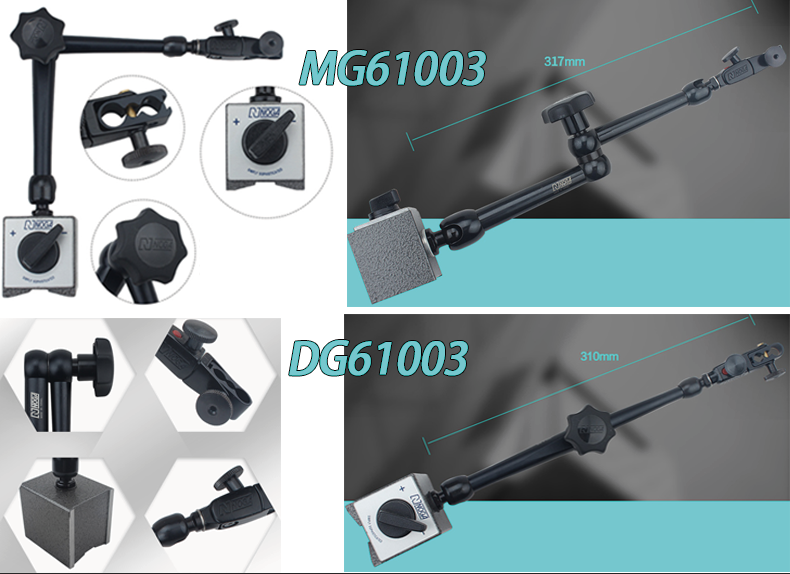

MG61003	800N	133/113/317	50*60*55	M8	1.9KG
DG61003	800N	110/101/282	50*60*56	M8	1.35KG

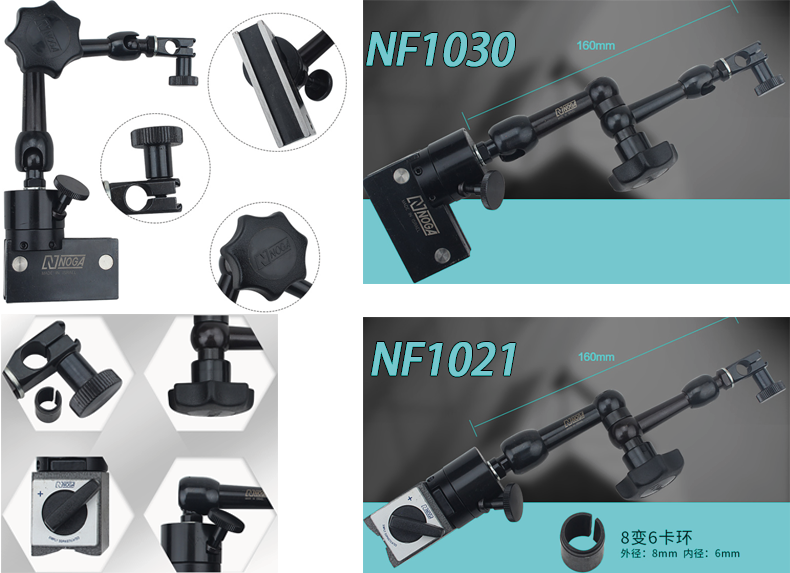

NF1030	280N	56/51/128.5	16*60*32	M8	0.3KG
NF1021	320N	56/51/128.5	30*40*35	M8	0.58KG
MA61003	1330N	326/242/637	50*120*55	M8	5.1KG
