Characteristic

Model :

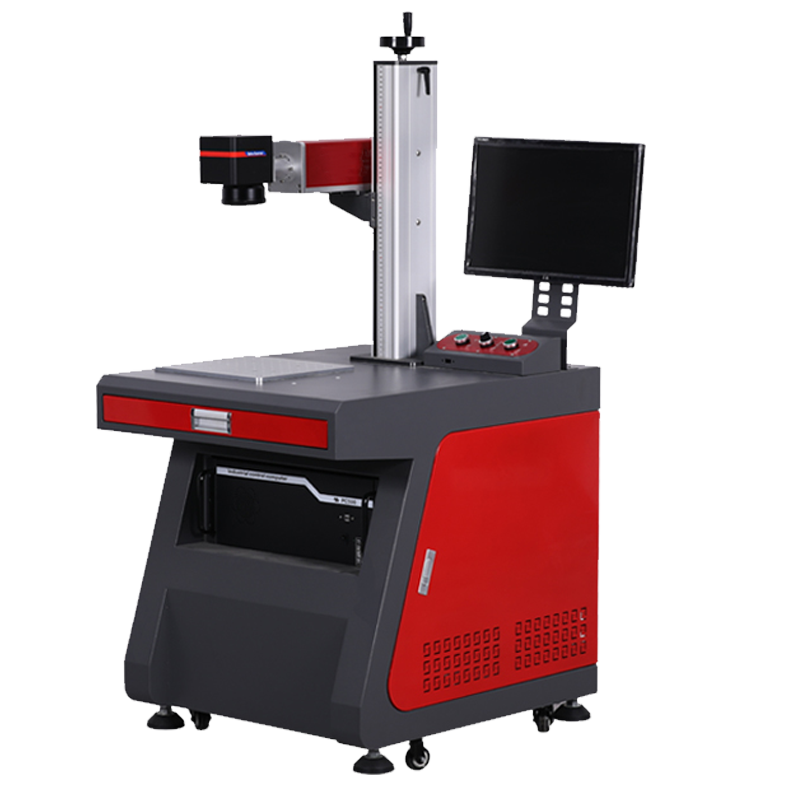

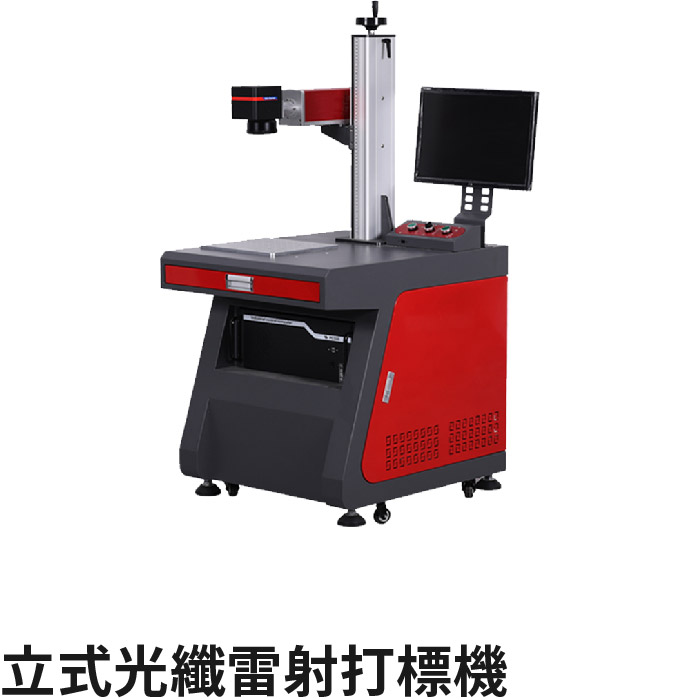

Laser marking machine

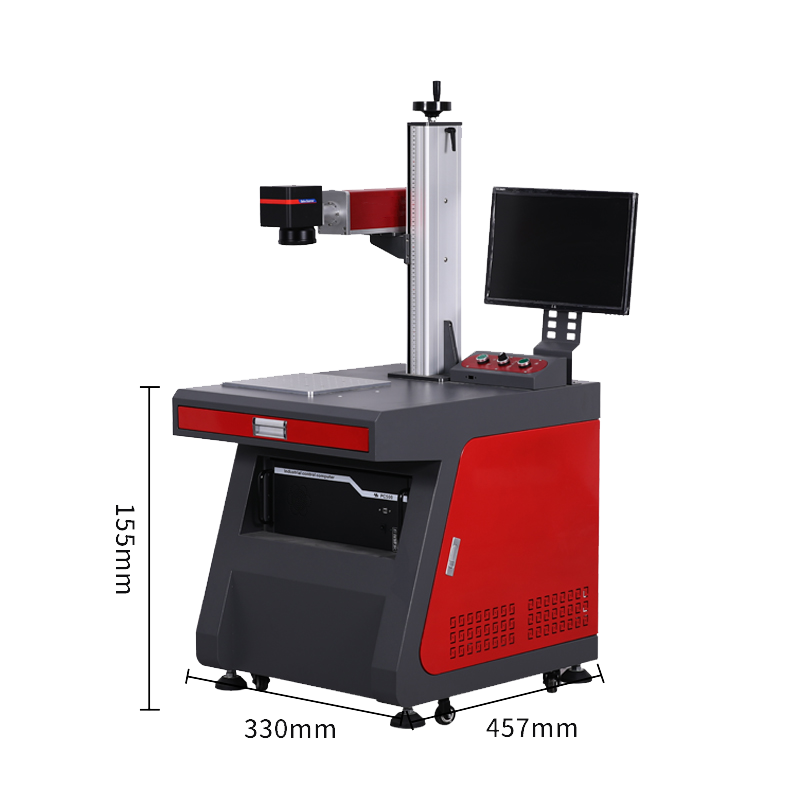

Appearance size: 457*330*155mm

Engraving range: 110*110mm (can be customized)

Laser: Air-cooled fiber laser

Wavelength: 1064μm

Laser life: 100,000 hours

Repeat frequency: 1 ~ 200 khz

Repeatability: <0.003 mm

Maximum engraving speed: 12000 mm/sec

Minimum engraving text: 0.15 mm

Minimum engraving line width: 0.015 mm

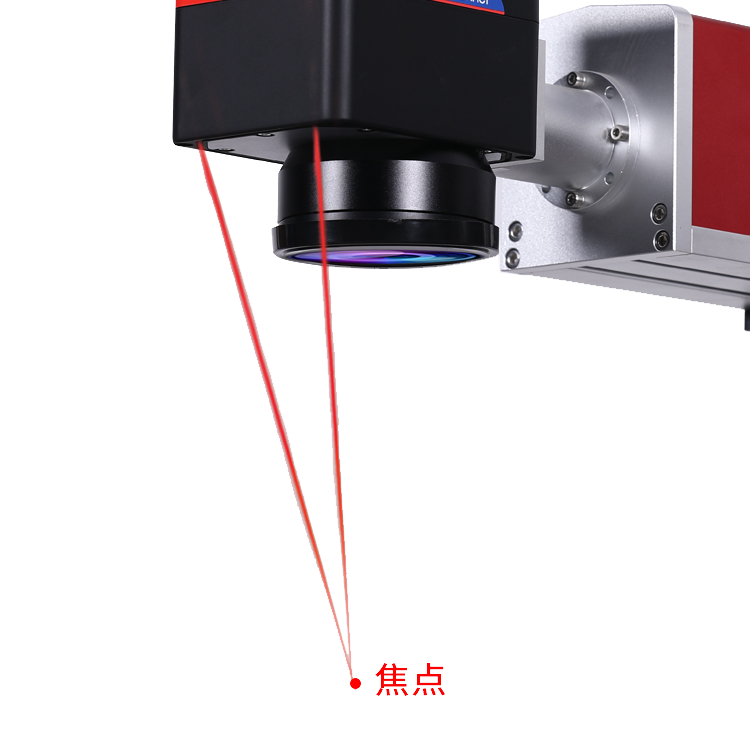

Positioning method: equal size preview, automatic positioning of red frame

Cooling method: built-in air cooling

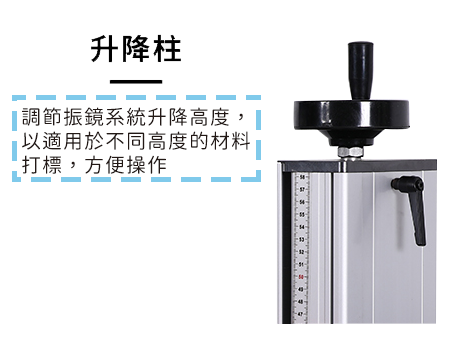

Lifting range: Lifting range 400 mm

Support file format: Support Autocad/Coreldraw/Photoshop/AI and other software file formats

Computer system environment: Windows 7/8/10

Transmission method: USB transmission, laptop can also be operated

Extended function: start pedal

Whole machine power: <=800W

Voltage: AC 110V / 50HZ

Net weight: 70 Kg

Marking template

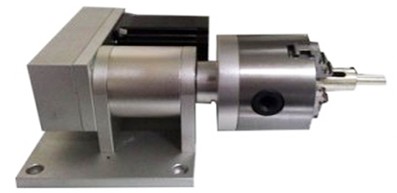

Rotary axis indexing head optional

Suitable for metal, stainless steel and other materials
