SWT
Characteristic
Model : SWT

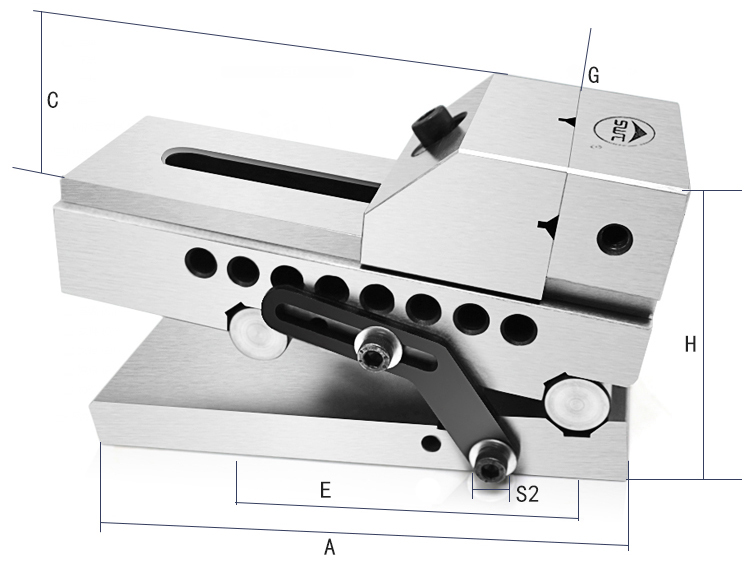

| 代號 | A | B | H | C | G | I | E | S1 | S2 | kg |
| QKJ50 | 135 | 50 | 80 | 25 | 65 | 74 | 100±0.005 | 5 | 5 | 2.9 |
| QKJ63 | 170 | 63 | 94 | 32 | 85 | 88 | 100±0.005 | 6 | 5 | 4.8 |
| QKJ73 | 185 | 73 | 101 | 35 | 100 | 98 | 100±0.005 | 6 | 5 | 8.3 |
| QKJ80 | 195 | 80 | 108 | 40 | 100 | 109 | 100±0.005 | 6 | 6 | 9.1 |
| QKJ88 | 230 | 88 | 108 | 40 | 125 | 117 | 100±0.0075 | 8 | 6 | 10.9 |
| QKJ100 | 240 | 100 | 114 | 45 | 125 | 129 | 100±0.0075 | 8 | 6 | 13.5 |
| QKJ125 | 280 | 125 | 124 | 50 | 160 | 154 | 200±0.01 | 10 | 6 | 21.3 |
| QKJ150 | 300 | 150 | 122 | 50 | 170 | 180 | 200±0.01 | 10 | 6 | - |
