CK-TN T slot nut
Characteristic
Model : CK-TN
Purpose: Apply on the T slotted working tableMaterial: S45C, black oxide furnished
Heat treatment: HRC32±5°
Product spec.:
Inch size 3/8”/1/2”/5/8”/3/4”7/8”/1”；
Metric size M8/ M10/M12 /M14/M16/M18/M20/M24
T slot nut
T slot nut
Purpose: Apply on the T slotted working table
Material: S45C, black oxide furnished
Heat treatment: HRC32±5°
Product spec.:
Inch size 3/8”/1/2”/5/8”/3/4”7/8”/1”；
Metric size M8/ M10/M12 /M14/M16/M18/M20/M24

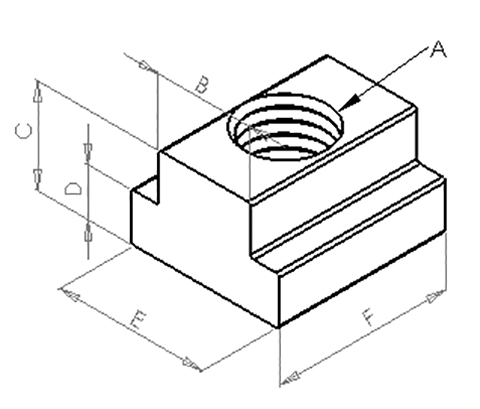

Order no. | A (Metric ) | B | C | D | E | F |
TNM-22021 | M8X1.25 | 9.7 | 12 | 6 | 16 | 22 |
TNM-23031 | M10X1.5 | 11.5 | 12 | 6.8 | 17.5 | 22 |
TNM-24041A | M12X1.75(S) | 13.8 | 16 | 8 | 22 | 28 |
TNM-24041B | M12X1.75(M) | 15.5 | 16 | 8 | 25 | 28 |
TNM-24041C | M12X1.75(L) | 17.5 | 19 | 11 | 28 | 31 |
TNM-24545 | M14X2.0 | 15.5 | 16 | 8 | 25 | 28 |
TNM-25051 | M16XX2.0 | 17.5 | 19 | 11 | 28 | 31 |
TNM-26061 | M18X2.5 | 19.5 | 24 | 12 | 32 | 38 |
TNM-27071 | M20X2.5 | 21.7 | 28 | 14 | 35 | 38 |
TNM-28081 | M24X3.0 | 27.5 | 36 | 18 | 44 | 49 |
Order no. | A (Inch ) | B | C | D | E | F |
TN-22021A | 5/16"-18 | 9.2 | 12 | 4.5 | 16 | 22 |
TN-23031A | 3/8"-16 | 10.8 | 12 | 5.5 | 17.5 | 22 |
TN-23031B | 11.5 | 12 | 6.8 | 22 | 22 | |
TN-23031C | 13.8 | 16 | 8 | 22 | 28 | |
TN-24041A | 1/2"-12 | 13.8 | 16 | 8 | 22 | 28 |
TN-24041B | 15.5 | 16 | 8 | 25 | 28 | |
TN-24041C | 17.5 | 19 | 11 | 28 | 31 | |
TN-24042A | 1/2"-13UNC | 13.8 | 16 | 8 | 22 | 28 |
TN-24042B | 15.5 | 16 | 8 | 25 | 28 | |
TN-24042C | 17.5 | 19 | 11 | 28 | 31 | |
TN-25051A | 5/8"-11 | 17.5 | 19 | 11 | 28 | 31 |
TN-25051B | 18.6 | 19 | 12 | 31.8 | 31 | |
TN-25051C | 20.2 | 25 | 14 | 32 | 38 | |
TN-26061A | 3/4"-10 | 20.2 | 25 | 14 | 32 | 38 |
TN-26061B | 21.7 | 28 | 14 | 35 | 38 | |
TN-26061C | 25 | 25 | 15.5 | 40 | 44.5 | |
TN-27071A | 7/8"-9 | 25 | 25 | 15.5 | 40 | 38 |
TN-28081A | 1"-8 | 27.5 | 36 | 18 | 44 | 49 |
