Characteristic

Model : CK-BM

Purpose: Applied for injection mold plate
Material: S45C, black oxide furnished
Heat treatment：HRC32±5°
Product spec.: Inch size 5/8”/3/4”7/8”/1”； Metric size M12 /M16/M20/M22/M24

Bolt for injection mold

 Bolt for injection mold

Purpose: Applied for injection mold plate

Material: S45C, black oxide furnished

Heat treatment：HRC32±5°

Product spec.: Inch size 5/8”/3/4”7/8”/1”； Metric size M12 /M16/M20/M22/M24

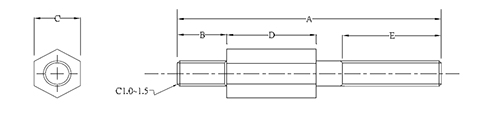

Part no.	metric size	A	B	C	D	E
BMM-74005	M12X1.75	120	30	14	20	55
BMM-74006		150				75
BMM-74007		175				90
BMM-75004	M16X2.0	100	25	17	15	55
BMM-75005		130	35		20	65
BMM-75006		155	40		25	80
BMM-75007		180				90
BMM-75008		200
BMM-75010		250
BMM-76005	M18X2.5	130	35	19	20	65
BMM-76006		155			25	80
BMM-76007		180	40			90
BMM-77004	M20X2.5	100	25	21	15	50
BMM-77005		130	35		20	65
BMM-77006		155	40		25	80
BMM-77007		180				90
BMM-77008		200	45
BMM-77010		250
BMM-77506	M22×2.5	155	40	23	20	80
BMM-77507		180				90
BMM-77508		200
BMM-78006	M24X3.0	155	40	26	25	80
BMM-78007		185				90
BMM-78008		200
BMM-78010		255



Part no.	Inch size	A	B	C	D	E
BM-75004	5/8"-11W	100	25	17	15	55
BM-75005		130	30		20	65
BM-75006		150	40		25	75
BM-75007		175				90
BM-75010		250	50
BM-76004	3/4"-10W	100	25	19	15	55
BM-76005		135	35		20	65
BM-76006		155			25	80
BM-76007		180	40			90
BM-76008		200
BM-76010		250	50
BM-77006	7/8"-9W	155	40	23	20	80
BM-77007		180
BM-77008		200				90
BM-78007	1"-8W	175	40	26	25	90
BM-78008		200
BM-78009		225
BM-78010		250
