Characteristic

Model : CK-SFN

Purpose: Combine with stud and clamp for all kind of clipping application
When tighten the nut, the flange base is fixed and prevents it from wearing.
Material: S45C, black oxide furnished
Heat treatment: HRC32±5°
Product spec.:
Inch size 3/8”/1/2”/5/8”/3/4”；
Metric size M10/M12 /M14/M16/M20

Swivel flange nut

Swivel flange nut

Purpose: Combine with stud and clamp for all kind of clipping application

When tighten the nut, the flange base is fixed and prevents it from wearing.

Material: S45C, black oxide furnished

Heat treatment: HRC32±5°

Product spec.:
Inch size 3/8”/1/2”/5/8”/3/4”；
Metric size M10/M12 /M14/M16/M20

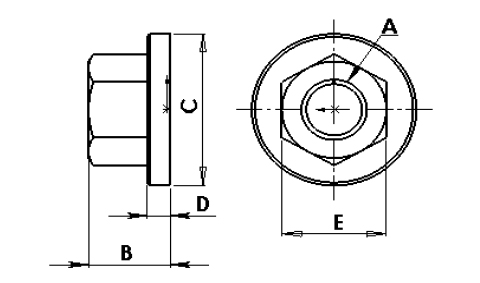

Order no.	A(Metric size)	B	C	D	E	Feature
SFM-13031S	M10X1.5	15	22	4.5	17	Swiveling flange
SFM-14041S	M12X1.75	21	28	6.5	21
SFM-14545S	M14X2.0	21	28	6.5	21
SFM-15051S	M16X2.0	23	35	6.5	26
SFM-17071S	M20X2.5	28	40	7	32



Order no.	A(Inch size)	B	C	D	E	Feature
SF-13031S	3/8"-16	15	22	4.5	17	Swiveling flange
SF-14041S	1/2"-12	21	28	6.5	21
SF-15051S	5/8"-11	23	35	6.5	26
SF-17071S	3/4"-10	28	40	7	32
