Characteristic

Model : CK-TCM

Purpose: Use the tapped hole to connect with stud for fixing the work piece.
Material: S45C, black oxide furnished
Heat treatment: HRC32±5°
Product spec.:
I1/2S 1/2M 1/2L (Tapped M12 , slot width15mm)
5/8S 5/8M 5/8L (Tapped M16, slot width 18mm)
3/4S 3/4M 3/4L (Tapped M20, slot width 21mm)

Tapped clamp

Tapped clamp

Purpose: Use the tapped hole to connect with stud for fixing the work piece.

Material: S45C, black oxide furnished

Heat treatment: HRC32±5°

Product spec.:
I1/2S 1/2M 1/2L (Tapped M12 , slot width15mm)
5/8S 5/8M 5/8L (Tapped M16, slot width 18mm)
3/4S 3/4M 3/4L (Tapped M20, slot width 21mm)

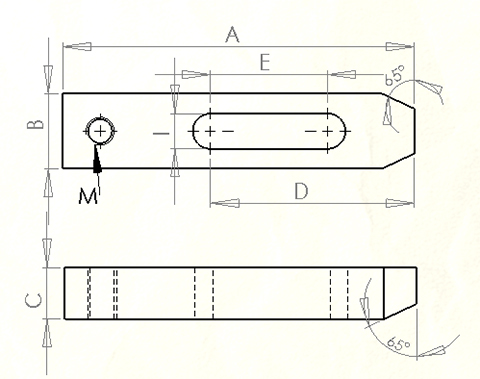

Order no.	M( thread spec.)	I(slot width)	A	B	C	D	E	F
TCM-84041	M12X1.75	15	80	32	19	48	23	69
TCM-84042	M12X1.75	15	100	32	19	63	38	87
TCM-84043	M12X1.75	15	150	32	22	87	50	134
TCM-85051	M16X2.0	18	80	38	19	43	15	65
TCM-85052	M16X2.0	18	100	38	19	60	30	85
TCM-85053	M16X2.0	18	150	38	22	87	50	134
TCM-87071	M20X2.5	21	100	38	25	60	30	85
TCM-87072	M20X2.5	21	150	38	25	87	50	132
TCM-87073	M20X2.5	21	200	44.5	28.5	107	70	180
