GFGW
Characteristic

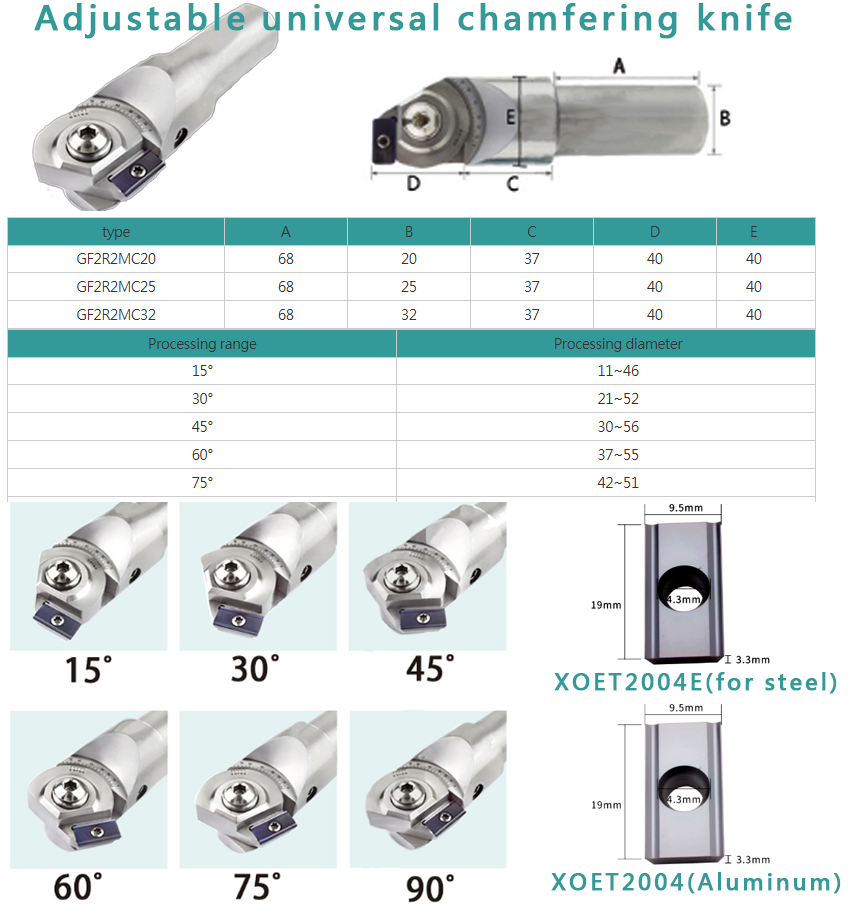

Model : GFGW

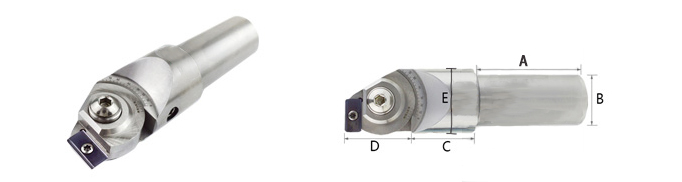

| A | B | C | D | E | |
| MC900020 | 68 | 20 | 37 | 40 | 40 |
| MC900025 | 68 | 25 | 37 | 40 | 40 |
| MC900032 | 68 | 32 | 37 | 40 | 40 |
| 加工範圍 | 加工直徑 |
| 15°時 | 11~46 |
| 30°時 | 21~52 |
| 45°時 | 30~56 |
| 60°時 | 37~55 |
| 75°時 | 42~51 |
Model : GFGW
| A | B | C | D | E | |
| MC900020 | 68 | 20 | 37 | 40 | 40 |
| MC900025 | 68 | 25 | 37 | 40 | 40 |
| MC900032 | 68 | 32 | 37 | 40 | 40 |
| 加工範圍 | 加工直徑 |
| 15°時 | 11~46 |
| 30°時 | 21~52 |
| 45°時 | 30~56 |
| 60°時 | 37~55 |
| 75°時 | 42~51 |
