Characteristic

Model : VV2X

Tool Wanli Precision Pliers
Manual vise
Accuracy: 0.005MM
Material: tool steel
Used in machine tools such as surface grinders, milling machines, electric sparks and wire cutting,
Finish the processing of angle planes, grooves and plane oblique holes, and can be used for measuring various angle parts.

Manual vise

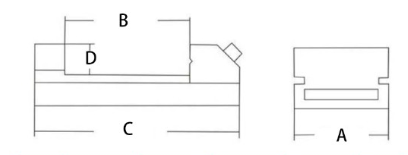

型號	鉗口寬度A	張開尺寸B	鉗體長度C	鉗口高度D	重量 KG
VSA25	26	22	65.4	9.15	0.5
VSA38	38	44	105	20	1.3
VSA50	50	65	140	25	2
VSA63	63	85	175	32	3
VSA73	73	100	190	35	4.1
VSA80	80	100	200	40	5.5
VSA88	88	125	235	40	7.3
VSA100	100	125	245	45	10
VSA125	125	160	285	50	18
VSA150	150	175	330	50	21.5
VSA150A	150	225	380	50	23
VSA150B	150	275	330	50	24
