PRODUCTS
Tungsten steel 55°T type milling cutter
Characteristic
Model :
Tungsten steel 55°T type milling cutter

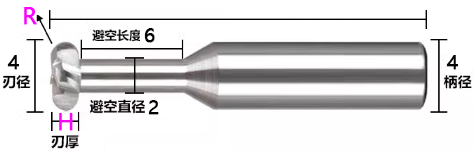

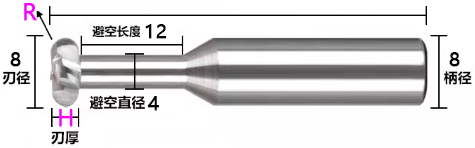

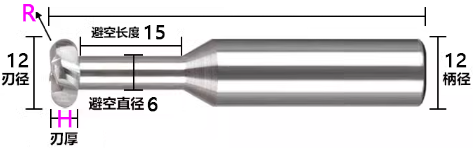

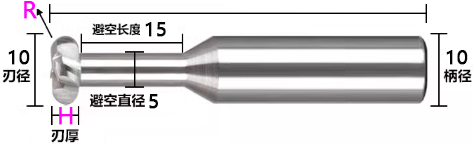

| 刃徑 | 刃高 | 避空直徑 | 避空長 | 柄徑 | 全長 |
| 2 | 0.3-2.0 間隔0.1 | 1 | 4 | 4 | 50 |
| 3 | 0.3-2.0 間隔0.1 | 1.5 | 6 | 4 | 50 |
| 4 | 0.3-4.0 間隔0.1 | 2 | 8 | 4 | 50 |
| 6 | 0.3-4.0 間隔0.1 | 3 | 10 | 6 | 50 |
| 8 | 0.3-5.0 間隔0.1 | 4 | 12 | 8 | 50 |
| 10 | 0.3-6.0 間隔0.1 | 5 | 15 | 10 | 60 |
| 12 | 0.3-6.0 間隔0.1 | 6 | 15 | 12 | 60 |
| 14 | 1/1.5/2/2.5/3/4/5/6 | 7 | 20 | 14 | 80 |
| 16 | 1/1.5/2/2.5/3/4/5/6 | 8 | 20 | 16 | 80 |
