Characteristic

Model :

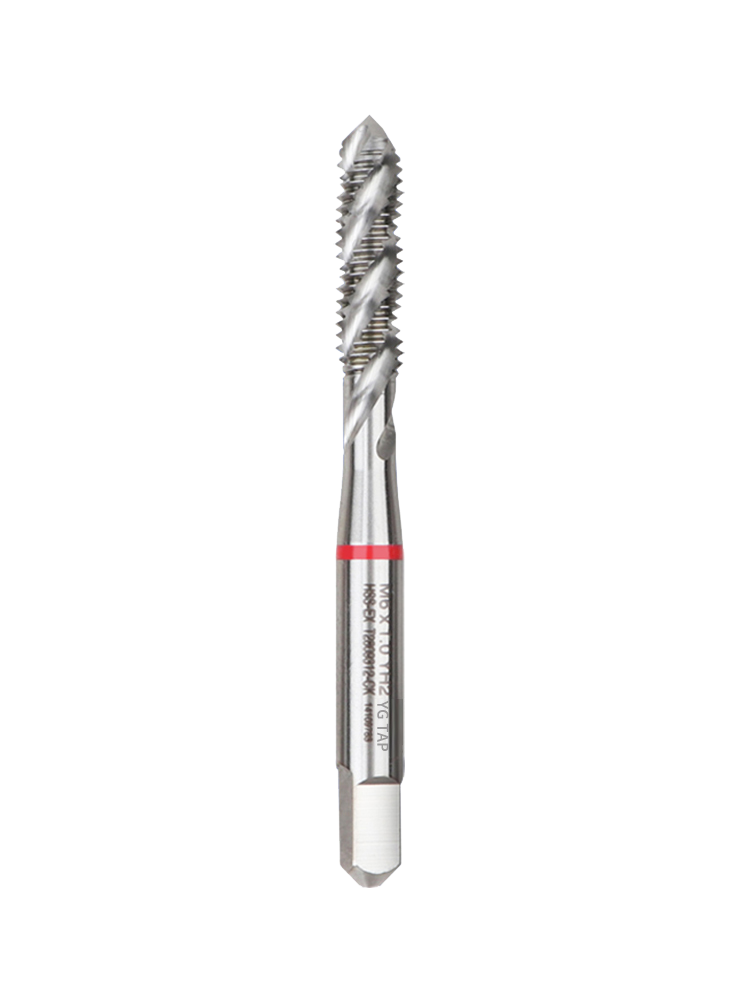

High-speed steel material

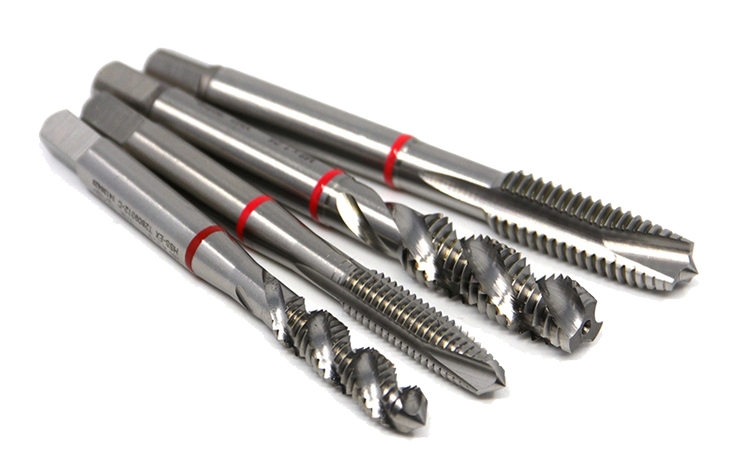

Top chip removal, blind hole
Lower chip removal, through hole
M6 and below are pointed, M8 and above are flat

Wire tapping tip

規格	螺距	全長	螺紋長	柄徑
M2	0.4	40	12	3
M2.5	0.45	44	14	3
M3	0.5	46	11	4
M4	0.7	52	13	5
M5	0.8	60	16	5.5
M6	1	62	19	6
M8	1.25	70	22	6.2
M10	1.5	75	24	7
M12	1.75	82	29	8.5
M14	2	88	30	10.5
M16	2	95	32	12.5
M18	2.5	100	37	14
M20	2.5	105	37	15
M22	2.5	115	38	17
M24	3	120	45	19
M27	3	130	45	20
M28	3	135	45	21
M30	3.5	135	48	23
