Characteristic

Model : TV2

Material: HSS-AL high speed steel
Blade: 6blades/8blades/10blades
● Enduring more stresses and impact resistance during machining
● Better compression bending, impact resistance
● Reliable quality and stable performance
● Cutting smoothly, won't stick on the blade
● Holder polished, fine leveling
● Easy to hold, highly stable
● Increased product of machining accuracy
● Machining material: Work hardness with HRC32℃ material is recommended.
● Machining notice: It's better to adding coolant when machining.

HSS T型槽銑刀 T-slot milling cutter

T-slot milling cutter

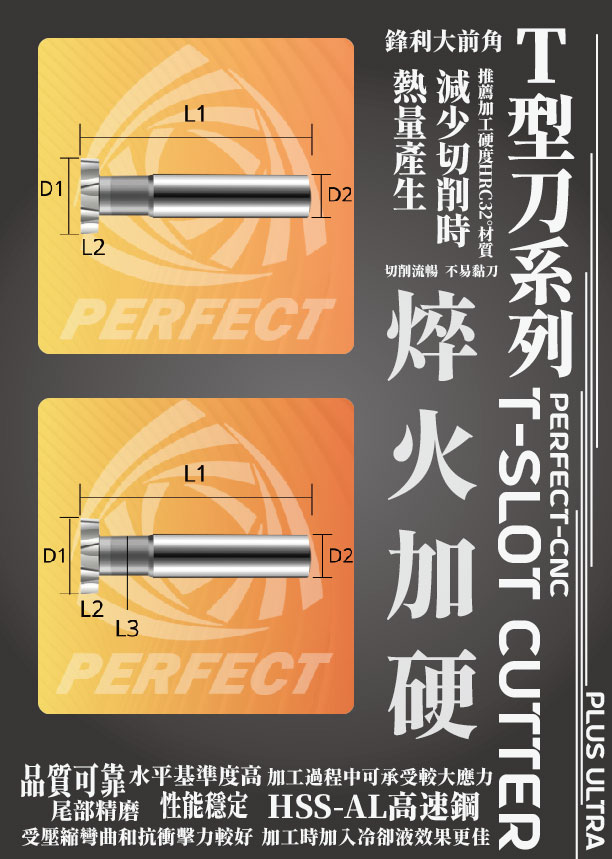

D1 ( Diameter of blade)	L1  (Length of the whole tool)	D2  (Diameter of the shank)	L2  (Thickness of the blade)
8	60	8	1/1.5/2/2.5/3
6	60	10	1/1.5/2/2.5/3/4/5
8	60	12	1/1.5/2/2.5/3/4/5
8	60	14	1/1.5/2/3/4/5/6/8/10
10	65	16	2/4/5/6/8/10
10	65	18	2/4/5/6/8/10
12	90	20	2/3/4/5/6/8/10
12	90	22	3/4/5/6/8/10
12	90	25	3/4/5/6/8/10/12
16	90	28	3/4/5/6/8/10/12
16	90	30	3/4/5/6/8/10/12
16	90	32	3/4/5/6/8/10/12
16	90	35	5/6/8/10/12
20	100	40	5/6/8/10/12
20	120	50	5/6/8/10/12/15/16

D1 ( Diameter of blade)	L1  (Length of the whole tool)	D2  (Diameter of the shank)	L2  (Thickness of the blade)	L3 (Length of neck)
11	53	10	4.5	5
12.5	57	10	6	6
18	70	10	8	8.5
21	74	12	9	10
25	82	16	11	12
29	85	16	12.5	13
32	90	16	14	15
35	100	20	16	18
40	108	25	18	19
50	124	32	22	25
60	139	32	28	30
