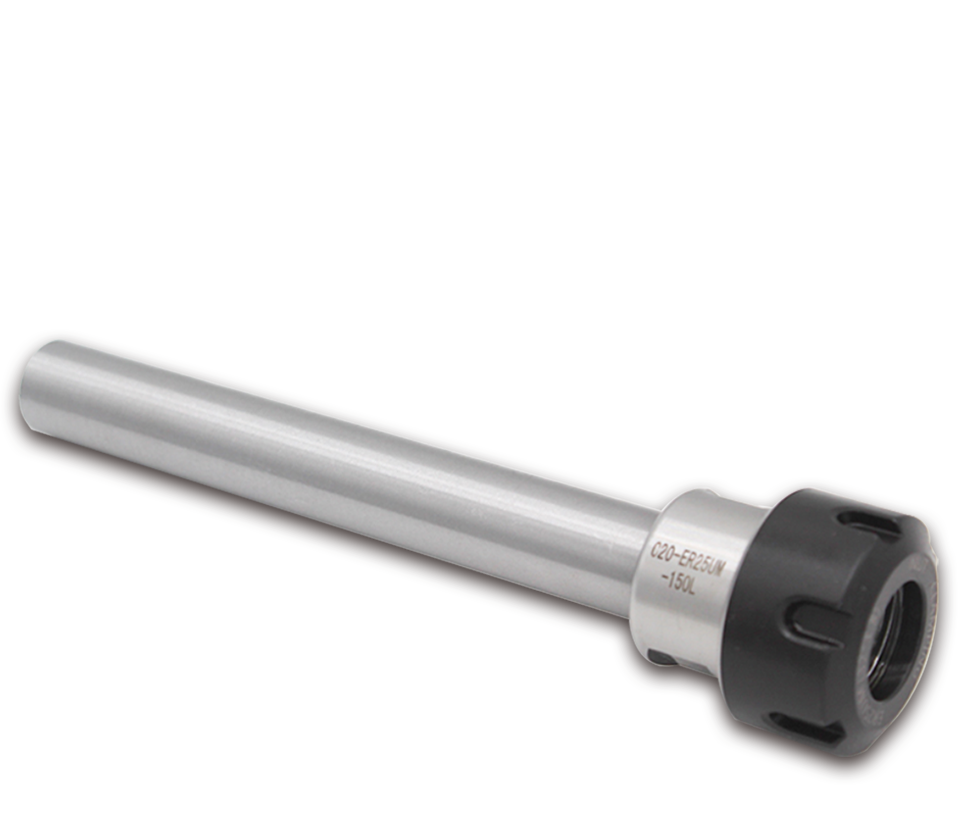

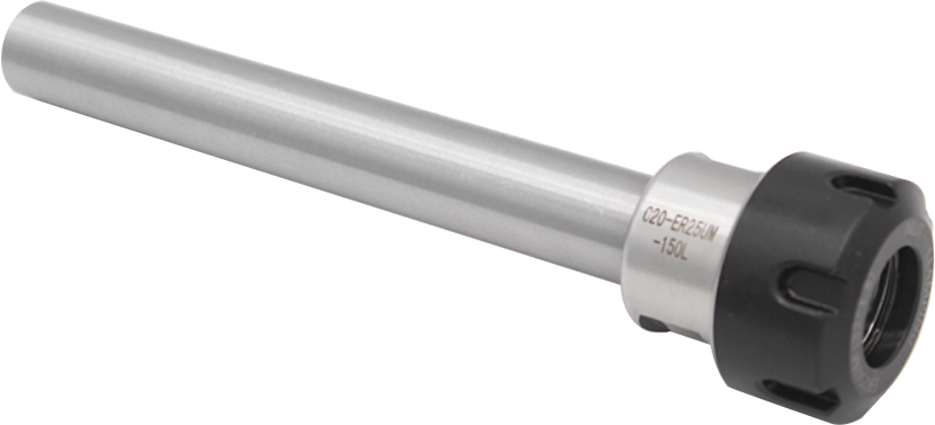

C/ERUM ER Extension rod
Characteristic
Model : C/ERUM
Model : C/EURMER Collet chuck with the flexibility that can clamp drill,
reamers ,end mills and taps.
Wrench must be ordered separately.
ER Extension rod
C/ER UM Extension rod

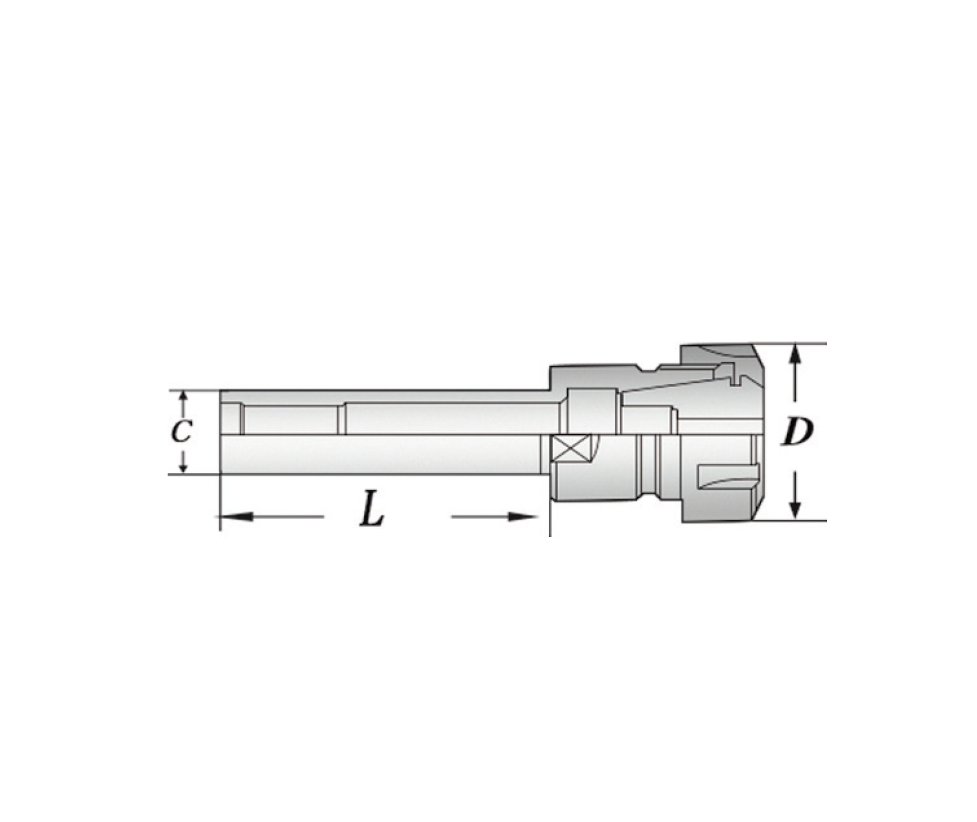

C-ERUM /Order no. | D | |
1 | C16-ERUM25-100L | 42 |
2 | C16-ERUM25-150L | 42 |
3 | C20-ERUM25-100L | 42 |
4 | C20-ERUM25-150L | 42 |
5 | C20-ERUM25-200L | 42 |
6 | C20-ERUM25-250L | 42 |
7 | C20-ERUM25-300L | 42 |
8 | C25-ERUM25-100L | 42 |
9 | C25-ERUM25-150L | 42 |
10 | C25-ERUM25-200L | 42 |
11 | C25-ERUM25-250L | 42 |
12 | C25-ERUM25-300L | 42 |
13 | C32-ERUM25-100L | 42 |
14 | C32-ERUM25-150L | 42 |
15 | C32-ERUM25-200L | 42 |
16 | C32-ERUM25-250L | 42 |
17 | C32-ERUM25-300L | 42 |
18 | C32-ERUM32-100L | 50 |
19 | C32-ERUM32-150L | 50 |
20 | C32-ERUM32-200L | 50 |
21 | C32-ERUM32-250L | 50 |
22 | C32-ERUM32-300L | 50 |
23 | C40-ERUM32-100L | 63 |
24 | C40-ERUM32-150L | 63 |
25 | C40-ERUM32-200L | 63 |
26 | C40-ERUM32-250L | 63 |
27 | C40-ERUM32-300L | 63 |
