GF2VY Centering is adjustable and quick drilling is abandoned
Characteristic
Model : GF2VY
Centering is adjustable and quick drilling is abandonedCentering is adjustable and quick drilling is abandoned
GF2VY Centering is adjustable and quick drilling is abandoned

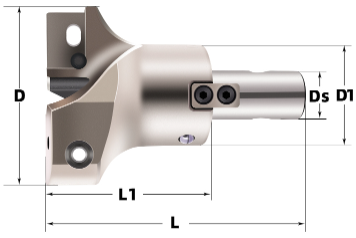

| 型號 | D | Ds | D1 | L1 | L | 定心鑽 | 刀墊 | 刀片 |
| VMD4550-13-10 | 45-50 | 13 | 28 | 50 | 85 | PLD-V1035 | VMC-0450501/2 | WCMX030204 |
| VMD5055-13-10 | 50-55 | 13 | 28 | 50 | 85 | VMC-0500551/2 | ||
| VMD5560-16-12 | 55-60 | 16 | 32 | 60 | 100 | PLD-V1238 | VMC-0550601/2 | WCMX040204 |
| VMD6065-16-12 | 60-65 | 16 | 32 | 60 | 100 | VMC-0600651/2 | WCMX050308 | |
| VMD6570-16-12 | 65-70 | 16 | 32 | 60 | 100 | VMC-0650701/2 | ||
| VMD7075-22-12 | 70-75 | 22 | 40 | 70 | 115 | VMC0700751/2 | ||
| VMD7580-22-16 | 75-80 | 22 | 40 | 70 | 115 | PLD-V1645 | VMC-0750801/2 | WCMX06T308 |
| VMD8085-22-16 | 80-85 | 22 | 40 | 70 | 115 | VMC-0800851/2 | ||
| VMD8590-27-16 | 85-90 | 27 | 48 | 70 | 120 | VMC-0850901/2 | ||
| VMD9095-27-16 | 90-95 | 27 | 48 | 70 | 120 | VMC-0900951/2 | ||
| VMD95100-27-16 | 95-100 | 27 | 48 | 70 | 120 | VMC-0951001/2 | ||
| VMD100105-32-20 | 100-105 | 32 | 58 | 80 | 130 | PLD-2045 | VMC-1001051/2 | WCMX050308 |
| VMD105110-32-20 | 105-110 | 32 | 58 | 80 | 130 | VMC-1051101/2 | WCMX06T308 | |
| VMD110115-32-20 | 110-115 | 32 | 58 | 80 | 130 | VMC-1101151/2 | ||
| VMD115120-40-20 | 115-120 | 40 | 70 | 90 | 145 | VMC-1151201/2 | ||
| VMD120125-40-25 | 120-125 | 40 | 70 | 90 | 145 | PLD-2556 | VMC-1201251/2 | |
| VMD125130-40-25 | 125-130 | 40 | 70 | 90 | 145 | VMC-1231301/2 | ||
| VMD130135-40-25 | 130-135 | 40 | 70 | 90 | 145 | VMC-1301351/2 | ||
| VMD135140-40-25 | 135-140 | 40 | 70 | 90 | 145 | VMC-1351401/2 | ||
| VMD140150-50-25 | 140-150 | 50 | 80 | 100 | 160 | VMC-1401501/2 | WCMX080408 | |
| VMD150160-50-25 | 150-160 | 50 | 80 | 100 | 160 | VMC-1501601/2 | ||
| VMD160170-50-25 | 160-170 | 50 | 80 | 100 | 160 | VMC-1601701/2 | ||
| VMD170180-50-25 | 170-180 | 50 | 80 | 100 | 160 | VMC-1701801/2 | ||
| VMD180190-50-30 | 180-190 | 50 | 80 | 100 | 160 | PLD-3068 | VMC-1801901/2 | WCMX080412 |
| VMD190200-50-30 | 190-200 | 50 | 80 | 100 | 160 | PLD-3068 | VMC-1902001/2 | WCMX080412 |
