Characteristic

Model : FJ-AB01

Designed for milling machines, this model is used on the fourth and fifth axes of the milling machine.

There are two forms for you to choose from:

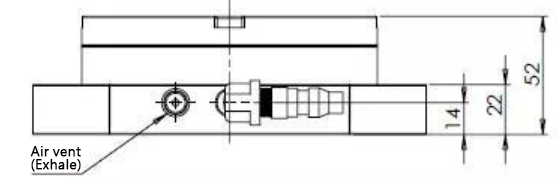

Insert and remove the air duct from the side. If you want to rotate 360°, it is recommended to remove the quick connector after installing the sub-board to prevent the air duct from tangling. This type of air duct, when removed, is suitable for an unpressurized tension of 250 kg.

Connect the air duct from the bottom. This form belongs to an unpressurized pressure of 250 kg.

The zero point locator is for illustration purposes only, and the zero point locator needs to be quoted separately.

Reduces machine movement time.

Both the 130-type and 100-type zero point locators can be used with this base plate.

Single-Moduled Zero Point Clamping System Plate

Model: FJ-AB01

Weight: 4 kg

Plate Material: S45C

Applications:

• Designed for milling machines, this model is used on the fourth and fifth axes of the milling machine.

• There are two forms for you to choose from:

1. Insert and remove the air duct from the side. If you want to rotate 360°, it is recommended to remove the quick connector after installing the sub-board to prevent the air duct from tangling. This type of air duct, when removed, is suitable for an unpressurized tension of 250 kg.

2. Connect the air duct from the bottom. This form belongs to an unpressurized pressure of 250 kg.

• The zero point locator is for illustration purposes only, and the zero point locator needs to be quoted separately.

• Reduces machine movement time.


• Both the 130-type and 100-type zero point locators can be used with this base plate.


Standard Equipment:

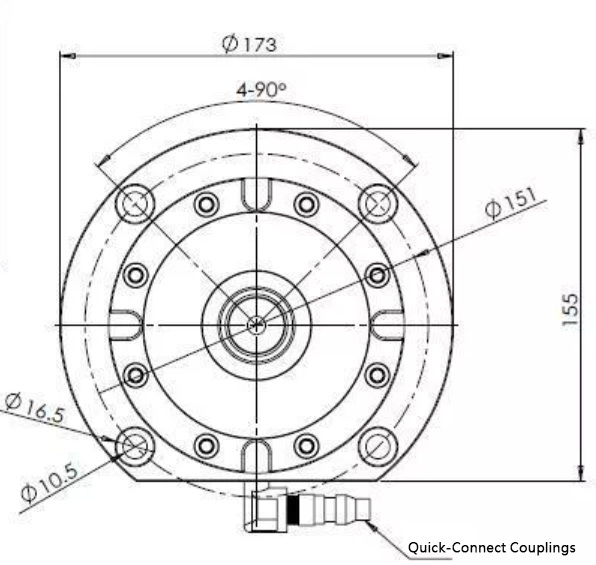

One set of quick connectors (including male and female connectors) or rotary connectors (choose one).
