Characteristic

Model : FJ-AB12

The Zero Point Clamping System Plate is suitable for various milling machine platforms and should be installed on the milling machine table.
It is recommended not to disassemble it once installed, only to replace the top subplate.
The Zero Point Clamping System Module is for reference only, and the actual use requires the additional purchase of the item.
Installing the Zero Point Clamping System Plate can reduce machine movement time and improve work efficiency.
The plate is compatible with both 130-type and 100-type zero point clamping module.

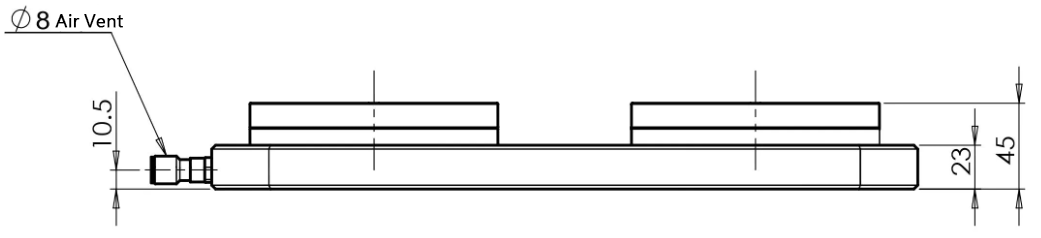

There are three air vents, including a pressure hole, a pressure relief hole, and a cleaning hole.

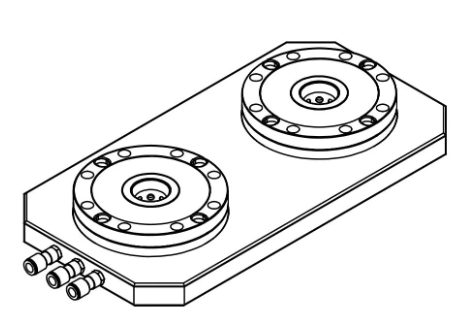

Double-Moduled Zero Point Clamping System Plate

Model: FJ-AB12

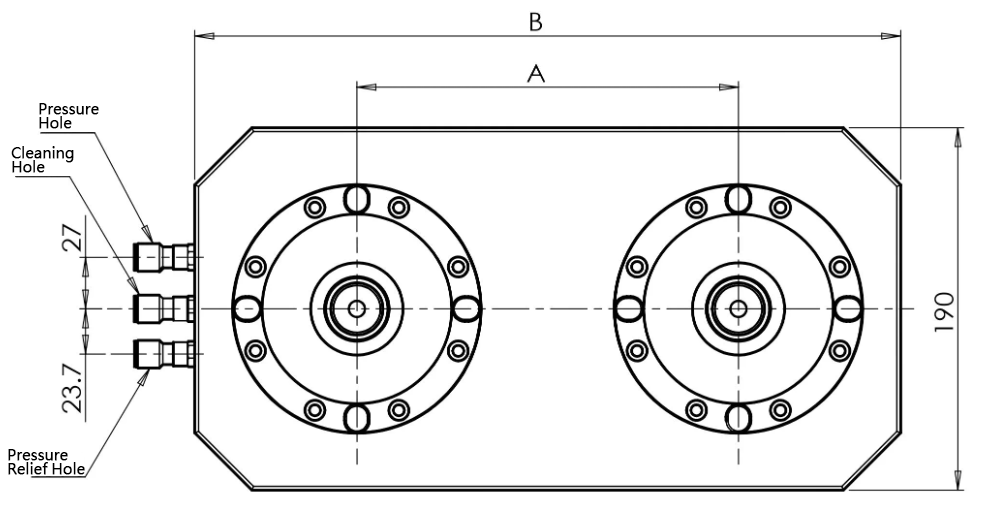

Pull Stud Pitch (A): 200mm  (B): 370mm  Weight: 11 kg

Plate Material: S45C Medium Carbon Steel (with Blackening Treatment)

• The Zero Point Clamping System Plate is suitable for various milling machine platforms and should be installed on the milling machine table.

• It is recommended not to disassemble it once installed, only to replace the top plate.

• The Zero Point Clamping System Module is for reference only, and the actual use requires the additional purchase of the item.

• Installing the Zero Point Clamping System Plate can reduce machine movement time and improve work efficiency.

• The plate is compatible with both 130-type and 100-type zero point clamping module.

• There are three air vents, including a pressure hole, a pressure relief hole, and a cleaning hole.

Standard Equipment:

• Three Quick-Connect Couplings for Easy Installation


• One Set of Square Pneumatic Valves

•

•

•
