Characteristic

Model : XXRT BT40

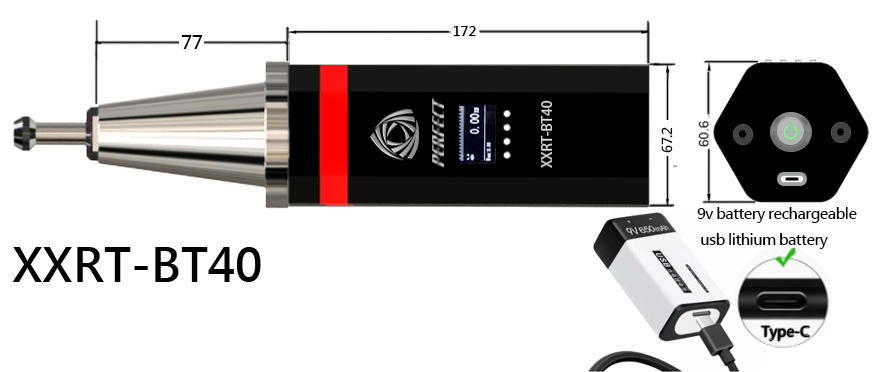

XRT BT40 spindle tension meter digital display

XXRT BT40 spindle tension meter digital display

Specifications

XRT BT40 spindle tension meter digital display

Model	d1	d2	L1	L2	Mesuring range	Weight KG
BT40-45°	15	10	35	28	0~20KN toleranc  ±60N	3.5Kg
BT40-60°			35	28
BT40-90°			35	28
CAT40*45°			32.2	25.2
CAT40*60°			32.2	25.2
CAT40*90°			32.2	25.2
ISO40-B-45°	18.9	12.9	16.4	11.15
ISO7388-45°
DIN40(69872B)-15°	19	14	26	20
SK40-15°
MAZAK-40-45°	18.8	12.5	19.1	14
P323-1(JIS6339-89)	19	14	29	23

1KN=1000N  /  1KN=102kgf  / 1 N=10- 1 kgf

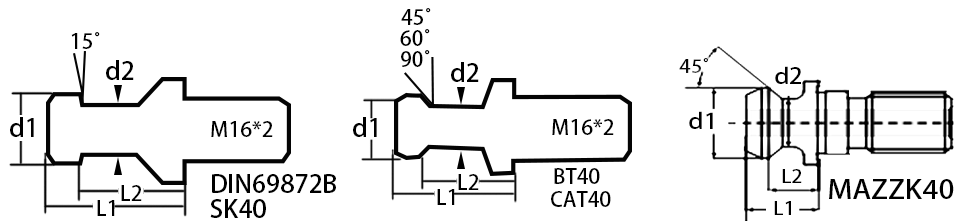

XXRT BT40 you can choose 3 Pull Stud

---

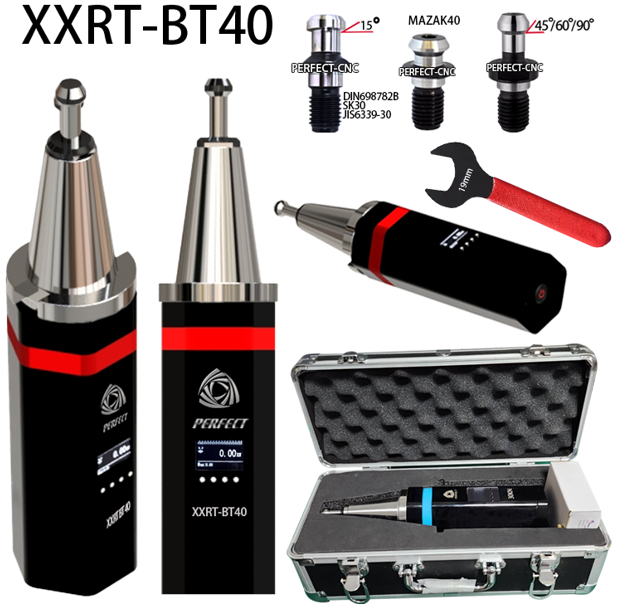

Product image
