Characteristic

Model : OP-19

1.The entire body has been rustproofing processed, which lengthens the lifespan of OP series' items
2.Usage notice: OP series' items are not suitable for rotating with spindle.
3.Electronic edge finder (OP series ) can determine the edges of workpieces and also height. They are suitable in a non-rotating spindle, which is a great advantage.

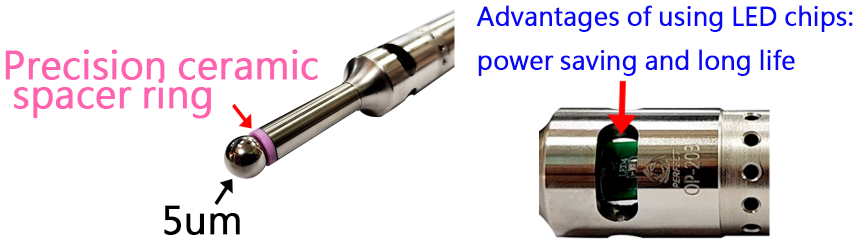

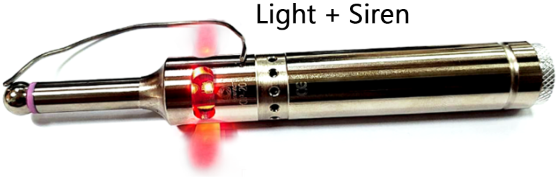

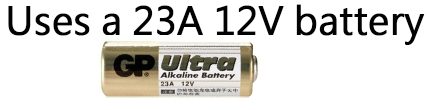

4.The batteries light up the inner LEDs. When the electrical
circuit forms, the light will shine while the edge finder is touching the workpiece. And it is visible through openings of the body.

OP-19光電式尋邊器

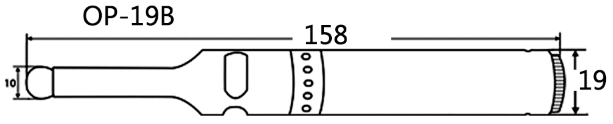

OP-19B Electronic EDGE FINDER

Probe Diameter: 0.394"=10mm

Shank Dia: 3/4"=19.05mm

Repeatability T.I.R within 0.0002" is equal to 5.08 micrometers.

Overall Length: 6-7/8"=154mm

weight:0.2kg
