PML PML Double magnetic circuit-thin switch type permanent hanging plate
Characteristic
Model : PML
PML Double magnetic circuit-thin switch type permanent hanging plate
Dual magnetic circuit-thin switch-type permanent magnet hanging plate
| Type | Rated lifting capacity | Cylindrical lifting force | Maximum pull-off force | B | L | H | R | Use temperature (c) | Weight KG |
| PML-3 | 300 | 100 | 900 | 133 | 163 | 60 | 203 | <80 | 9.5 |
| PML-6 | 600 | 200 | 1800 | 162 | 234 | 74 | 267 | <80 | 21 |
| PML-10 | 1000 | 300 | 3000 | 190 | 302 | 87 | 306 | <80 | 37.5 |
| PML-20 | 2000 | 600 | 6000 | 231 | 441 | 107 | 500 | <80 | 77 |
| PML-30 | 3000 | 9000 | 417 | 316 | 146 | 450 | <80 | 165 | |
| PML-60 | 6000 | 18000 | 584 | 422 | 206 | 820 | <80 | 410 |
力單位:Kgf
| 負載能力比率 | |||||||
| 鋼材厚度 | mm | PML-60 | PML-30 | PML-20 | PML-10 | PML-6 | PML-3 |
| T1 | 90 | 100% | 100% | 100% | 100% | 100% | 100% |
| T2 | 80 | 100% | 100% | 100% | 100% | 100% | 100% |
| T3 | 70 | 90% | 100% | 100% | 100% | 100% | 100% |
| T4 | 60 | 75% | 90% | 100% | 100% | 100% | 100% |
| T5 | 50 | 65% | 75% | 90% | 100% | 100% | 100% |
| T6 | 40 | 55% | 65% | 75% | 85% | 100% | 100% |
| T7 | 30 | 40% | 55% | 65% | 75% | 85% | 100% |
| T8 | 20 | 40% | 55% | 65% | 65% | 85% | |
| T9 | 10 | 40% | 45% | 45% | 55% | ||

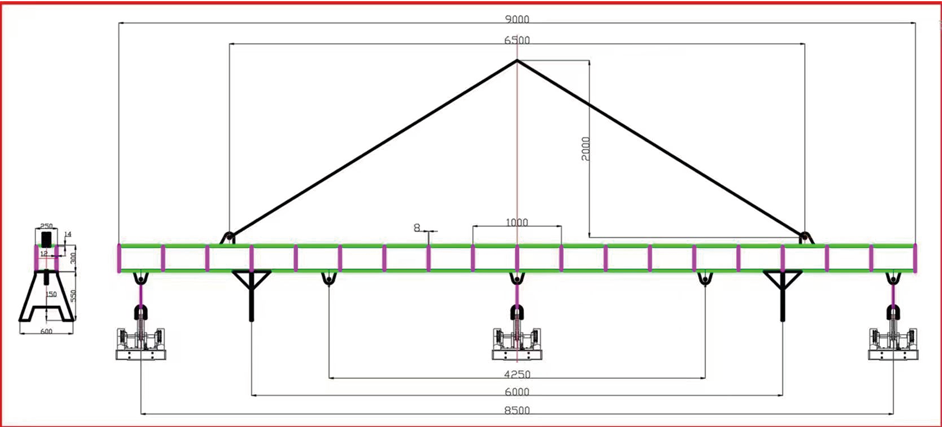

"Note: If you need to move a thin, long, and wide iron plate, you must use multiple magnetic lifters connected in series. This requires custom calculations."
