Characteristic

Model : CPM-SPT

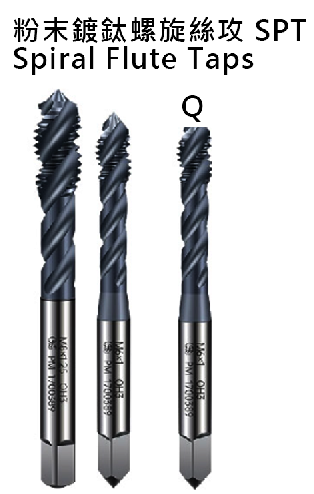

Powdered Spiral Taps SPT
Powdered Spiral Taps with Titanium Coating (Metric)
● Coating: CPM + TICN Dual Coating
● Material: HSS
● Suitable for machining: Stainless steel, alloy steel, tool steel, high-speed steel, aluminum alloy, cast iron, SKD, and other difficult-to-machine materials.
● Features: Chip removal is upward, suitable for blind hole threads.

ZAXNE SPT

CPM SPT 粉末螺旋絲攻鍍鈦(公制)

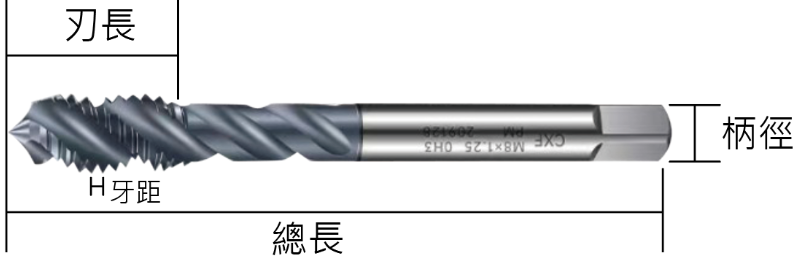

代號	產品規格	牙距	刃長	有效長	總長度	柄徑	打孔直徑	牌價
3ZAXNE02	M2*0.4	0.4					1.6	640
3ZAXNE03	M3*0.5	0.5	8	14	48	4	2.5	470
3ZAXNE035	M3.5*0.6	0.6	9	16	50	4	2.9	470
3ZAXNE04	M4*0.7	0.7	12	20	56	5	3.3	440
3ZAXNE05	M5*0.8	0.8	13	22	66	5.5	4.2	460
3ZAXNE06	M6*1.0	1	13	26	66	6	5	510
3ZAXNE08	M8*1.25	1.25	20		72	6.2	6.8	720
3ZAXNE10	M10*1.5	1.5	20		75	7	8.5	900
3ZAXNE12	M12*1.75	1.75	22		80	8.5	10.3	1370
3ZAXNE1415	M14*1.5	1.5						1570
3ZAXNE142	M14*2	2						1570
3ZAXNE16	M16*2	2						1840
