HSK63A-LBK HSK63A-LBK
Characteristic
Model : HSK63A-LBK
HSK63A-LBK
HSK63A-LBK

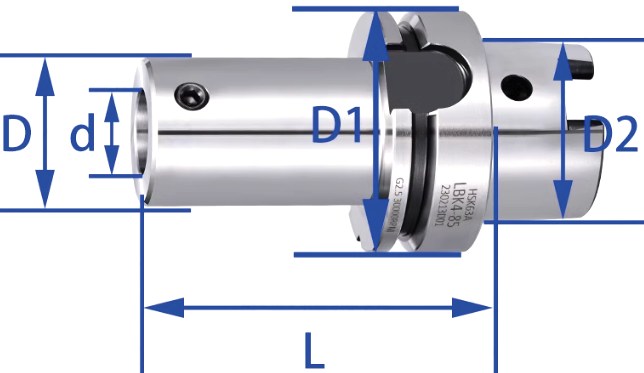

| 型號 | D | d | D1 | D2 | L |
| HSK63A-LBK1-75 | 19 | 11 | 63 | 48 | 75 |
| HSK63A-LBK1-110 | 110 | ||||
| HSK63A-LBK1-130 | 130 | ||||
| HSK63A-LBK2-85 | 24 | 14 | 63 | 48 | 85 |
| HSK63A-LBK2-115 | 115 | ||||
| HSK63A-LBK2-130 | 130 | ||||
| HSK63A-LBK2-160 | 160 | ||||
| HSK63A-LBK3-90 | 31 | 18 | 63 | 48 | 90 |
| HSK63A-LBK3-125 | 125 | ||||
| HSK63A-LBK3-155 | 155 | ||||
| HSK63A-LBK4-85 | 39 | 22 | 63 | 48 | 85 |
| HSK63A-LBK4-130 | 130 | ||||
| HSK63A-LBK4-170 | 170 | ||||
| HSK63A-LBK5-85 | 50 | 28 | 63 | 48 | 85 |
| HSK63A-LBK5-130 | 130 | ||||
| HSK63A-LBK5-180 | 180 | ||||
| HSK63A-LBK6-80 | 63 | 36 | 63 | 48 | 80 |
| HSK63A-LBK6-115 | 115 | ||||
| HSK63A-LBK6-165 | 165 |
