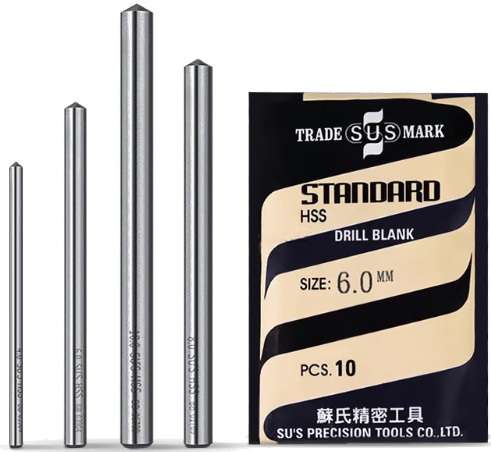

M1 HSS Drill Blanks
Characteristic
Model : M1
HSS Drill BlanksHSS Drill Blanks
HSS Drill BlanksHSS Drill Blanks
| HSS Drill Blanks | |||||||||||
| 直徑D mm | 全長 | 牌價 | 直徑D mm | 全長 | 牌價 | 直徑D mm | 全長 | 牌價 | 直徑D mm | 全長 | 牌價 |
| 0.2 | 19 | 130 | 4.5 | 86 | 42 | 8.8 | 124 | 145 | 13.5 | 150 | 380 |
| 0.3 | 20 | 75 | 4.6 | 48 | 8.9 | 145 | 14 | 390 | |||
| 0.4 | 24 | 60 | 4.7 | 89 | 48 | 9 | 145 | 14.5 | 410 | ||
| 0.5 | 27 | 45 | 4.8 | 48 | 9.1 | 172 | 15 | 440 | |||
| 0.6 | 30 | 40 | 4.9 | 92 | 48 | 9.2 | 127 | 172 | 15.5 | 460 | |
| 0.7 | 32 | 40 | 5 | 48 | 9.3 | 172 | 16 | 480 | |||
| 0.8 | 34 | 36 | 5.1 | 60 | 9.4 | 172 | 16.5 | 500 | |||
| 0.9 | 36 | 36 | 5.2 | 95 | 60 | 9.5 | 172 | 17 | 530 | ||
| 1 | 40 | 30 | 5.3 | 60 | 9.6 | 130 | 190 | 17.5 | 560 | ||
| 1.1 | 42 | 30 | 5.4 | 60 | 9.7 | 190 | 18 | 580 | |||
| 1.2 | 30 | 5.5 | 60 | 9.8 | 190 | 18.5 | 610 | ||||
| 1.3 | 45 | 30 | 5.6 | 98 | 68 | 9.9 | 190 | 19 | 640 | ||
| 1.4 | 48 | 30 | 5.7 | 68 | 10 | 190 | 19.5 | 660 | |||
| 1.5 | 30 | 5.8 | 68 | 10.1 | 133 | 220 | 20 | 710 | |||
| 1.6 | 30 | 5.9 | 68 | 10.2 | 220 | 20.5 | 810 | ||||
| 1.7 | 50 | 30 | 6 | 102 | 68 | 10.3 | 220 | 21 | 810 | ||
| 1.8 | 52 | 30 | 6.1 | 75 | 10.4 | 220 | 21.5 | 860 | |||
| 1.9 | 30 | 6.2 | 75 | 10.5 | 137 | 220 | 22 | 860 | |||
| 2 | 55 | 30 | 6.3 | 75 | 10.6 | 240 | 22.5 | 940 | |||
| 2.1 | 30 | 6.4 | 105 | 75 | 10.7 | 240 | 23 | 940 | |||
| 2.2 | 58 | 30 | 6.5 | 75 | 10.8 | 140 | 240 | 23.5 | 1080 | ||
| 2.3 | 30 | 6.6 | 85 | 10.9 | 240 | 24 | 1080 | ||||
| 2.4 | 61 | 30 | 6.7 | 85 | 11 | 240 | 24.5 | 1170 | |||
| 2.5 | 30 | 6.8 | 85 | 11.1 | 280 | 25 | 1170 | ||||
| 2.6 | 64 | 30 | 6.9 | 85 | 11.2 | 143 | 280 | 25.5 | 1360 | ||
| 2.7 | 30 | 7 | 85 | 11.3 | 280 | 26 | 1360 | ||||
| 2.8 | 67 | 30 | 7.1 | 108 | 95 | 11.4 | 280 | 26.5 | 1500 | ||
| 2.9 | 71 | 30 | 7.2 | 95 | 11.5 | 280 | 27 | 1500 | |||
| 3 | 30 | 7.3 | 95 | 11.6 | 146 | 295 | 27.5 | 1610 | |||
| 3.1 | 33 | 7.4 | 111 | 95 | 11.7 | 295 | 28 | 1610 | |||
| 3.2 | 33 | 7.5 | 95 | 11.8 | 295 | 28.5 | 1730 | ||||
| 3.3 | 73 | 33 | 7.6 | 120 | 11.9 | 295 | 29 | 1730 | |||
| 3.4 | 33 | 7.7 | 114 | 120 | 12 | 149 | 295 | 29.5 | 1900 | ||
| 3.5 | 33 | 7.8 | 120 | 12.1 | 325 | 30 | 1900 | ||||
| 3.6 | 76 | 37 | 7.9 | 120 | 12.2 | 325 | |||||
| 3.7 | 37 | 8 | 120 | 12.3 | 325 | ||||||
| 3.8 | 37 | 8.1 | 117 | 132 | 12.4 | 152 | 325 | ||||
| 3.9 | 37 | 8.2 | 132 | 12.5 | 325 | ||||||
| 4 | 83 | 37 | 8.3 | 132 | 12.6 | 340 | |||||
| 4.1 | 42 | 8.4 | 121 | 132 | 12.7 | 340 | |||||
| 4.2 | 42 | 8.5 | 132 | 12.8 | 340 | ||||||
| 4.3 | 42 | 8.6 | 145 | 12.9 | 340 | ||||||
| 4.4 | 86 | 42 | 8.7 | 145 | 13 | 340 | |||||
