XWCAT CAT40-45° water outlet British thread
Characteristic
Model : XWCAT
CAT40-45° water outlet British threadCAT50-45°water outlet British thread
CAT40-45° water outlet British thread
CAT40-45° water outlet British thread

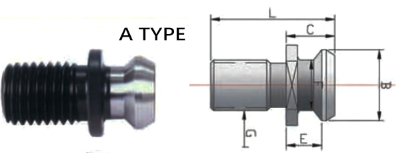

| 代號 | 尺寸 * G牙 | 牌價 | C | B | L |
| 3XWCAT4045A | CAT40*45°*1"-8短 | 500 | 0.64" | 0.74" | 1.5" |
| 3XWCAT4045B | CAT40*45°*1"-8長 | 1.772" | 0.59" | 2.13" | |
| 3XWCAT4045MA | CAT40*45°*M16*2短 | 1.27" | 1.14" | 1.5" | |
| 3XWCAT4060MA | CAT40*60°*M16*2短 | ||||
| 3XWCAT4090MA | CAT40*90°*M16*2短 | ||||
| 3XWCAT4045MB | CAT40*45°*M16*2長 | 1.772" | 0.906" | 2.13" | |
| 3XWCAT4060MB | CAT40*60°*M16*2長 | ||||
| 3XWCAT4090MB | CAT40*90°*M16*2長 |
CAT50-45°water outlet British thread
| 代號 | 尺寸*G牙 | 牌價 | C | B | L | E |
| 3XWCAT5045A | CAT50*45°*1"-8短 | 700 | 1.27" | 1.14" | 2.3 | 0.7 |
| 3XWCAT5045B | CAT50*45°*1"-8長 | 1.772" | 0.906" | 3.07 | 1.378 | |
| 3XWCAT5045MA | CAT50*45°*M24*3短 | 1.27" | 1.14" | 2.3 | 0.7 | |
| 3XWCAT5060MA | CAT50*60°*M24*3短 | |||||
| 3XWCAT5090MA | CAT50*90°*M24*3短 | |||||
| 3XWCAT5045MB | CAT50*45°*M24*3長 | 1.772" | 0.906" | 3.07 | 1.378 | |
| 3XWCAT5060MB | CAT50*60°*M24*3長 | |||||
| 3XWCAT5090MB | CAT50*90°*M24*3長 |
