Characteristic

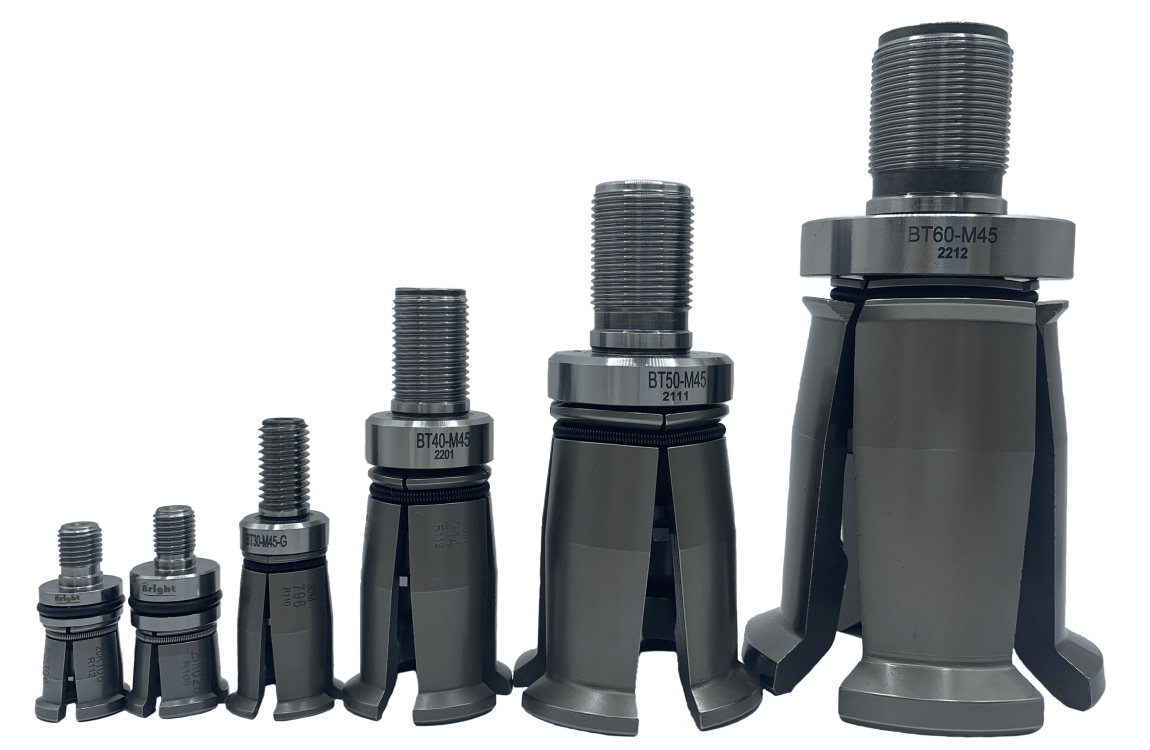

Model : 3X5BT

The BT spindle gripper with M45 mechanical amplification is engineered for CNC machine centers requiring high-speed, high-force tool clamping. Designed to fit BT30, BT40, BT50, and BT60 spindles, it features internal mechanical leverage that delivers up to 2–3x higher clamping force than conventional systems within limited space.

Compatible with MAS BT tapers: BT30 / BT40 / BT50 / BT60
Threaded type: Male thread (M10–M30)
Multiple clamping angle options: 0°, 30°, 45° (α)
Compact but powerful: Up to 70kN clamping force, and 450Nm tightening torque
High strength structure with proven endurance for high-speed machining

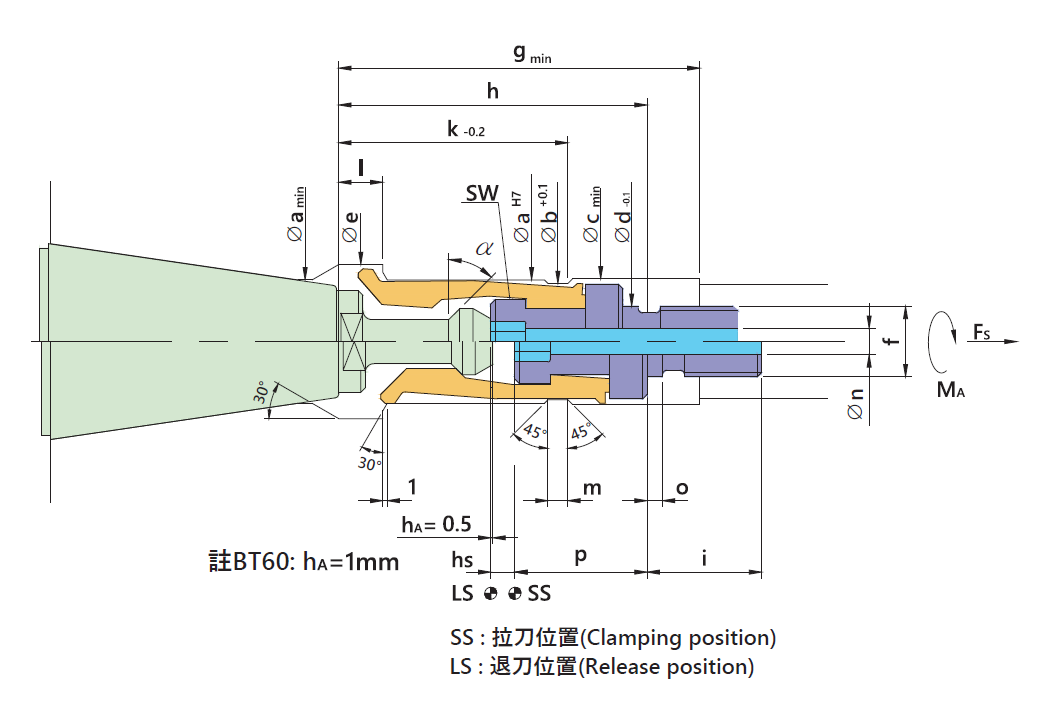

BT Spindle Gripper

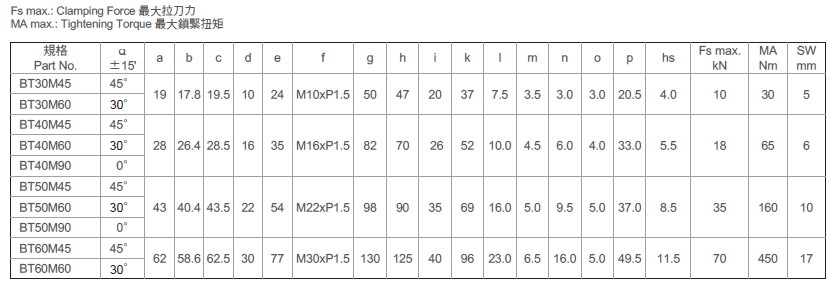

Model	Thread	Max Clamping Force Fs (kN)	Max Torque MA (Nm)	SW (mm)	α Angle
BT30M45	M10xP1.5	10	30	5	45°
BT30M60	M10xP1.5	12	40	5	30°
BT40M45	M16xP1.5	18	65	6	45°
BT40M60	M16xP1.5	25	85	6	30°
BT40M90	M16xP1.5	30	90	6	0°
BT50M45	M22xP1.5	35	160	10	45°
BT50M60	M22xP1.5	40	180	10	30°
BT50M90	M22xP1.5	45	200	10	0°
BT60M45	M30xP1.5	60	350	17	45°
BT60M60	M30xP1.5	70	450	17	30°

Application Areas:

• Vertical & horizontal machining centers

• High-speed tool change spindles

• Short-travel, high-grip CNC spindles

• Automatic Tool Changers (ATC)

Operational Notes:

• Ensure spindle contour matches gripper geometry

• Grease threaded and sliding parts before use

• Avoid idle running without tool holder

• Use dynamically balanced tool holders in high RPM applications
