Characteristic

Model : 3X5FT

The FT series spindle grippers are designed to match 25° taper holders (BT, CAT, DIN), utilizing an internal clamping structure at 15° for enhanced clamping force with minimal travel. They feature robust construction optimized for high-pull-force, short-stroke, and high-rigidity applications.

Compatible with MAS BT, ASME CAT, and DIN 69872 standards
15° clamping angle ensures efficient force transmission
Threaded interfaces range from M10 to M30 depending on size
Excellent for high-speed machining, heavy-duty tool holding
Hardened components for increased durability and stability

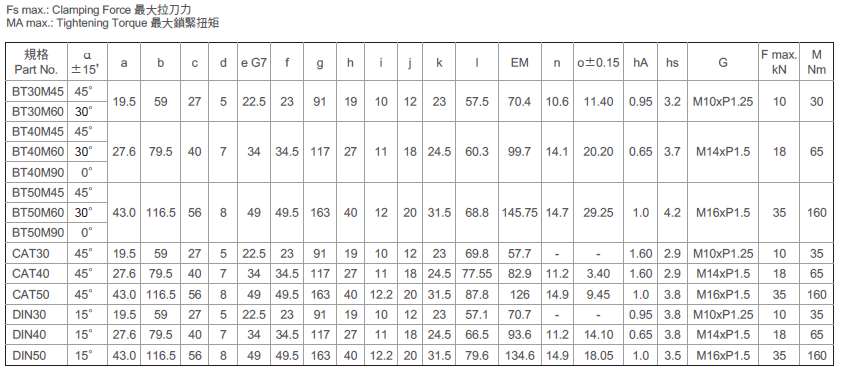

FT Series – Spindle Gripper for BT / CAT / DIN

Part No.	Clamping Angle (α)	Max Pull Force (Fs)	Max Torque (MA)	Thread (G)	Wrench Size (SW)
BT30M45	45°	10kN	30Nm	M10×P1.25	5mm
BT30M60	30°	12kN	35Nm	M10×P1.25	5mm
BT40M45	45°	18kN	65Nm	M14×P1.5	6mm
BT40M60	30°	25kN	85Nm	M14×P1.5	6mm
BT40M90	0°	30kN	90Nm	M14×P1.5	6mm
BT50M45	45°	35kN	160Nm	M16×P1.5	10mm
BT50M60	30°	45kN	200Nm	M16×P1.5	10mm
CAT30	45°	10kN	35Nm	M10×P1.25	5mm
CAT40	45°	18kN	65Nm	M16×P1.5	6mm
CAT50	45°	35kN	160Nm	M22×P1.5	10mm
DIN30	15°	10kN	35Nm	M10×P1.25	5mm
DIN40	15°	18kN	65Nm	M14×P1.5	6mm
DIN50	15°	35kN	160Nm	M16×P1.5	10mm

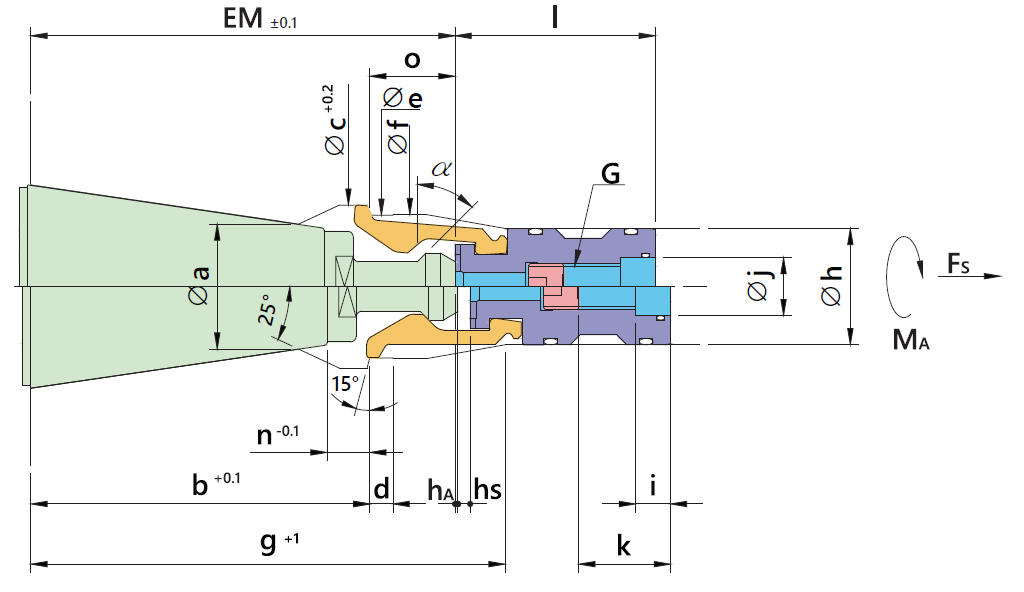

Diagram Key Highlights:

• Taper 25° holder connection

• Detailed dimensions for all critical parts (a~p, EM, G)

• Stroke indication (hA, hs)

• Force and torque flow directions illustrated (Fs and MA)
