Characteristic

Model : 5X5HSK

The HSK series spindle grippers are engineered for high-speed, high-precision machining applications, compliant with international HSK standards. Featuring a dual-stage expansion structure and high rigidity design, they ensure excellent clamping force and stability even at ultra-high spindle speeds.

Designed for standard HSK tapers (E, A, B, C types)
Available in black coated versions for minimum friction and extended lifetime
Dual expansion stages for superior tool stability and positioning accuracy
Maximum spindle speed supported up to 80,000 RPM (E25)
Short clamping stroke, quick response ideal for ATC systems

HSK Spindle Gripper Series (E25 ~ A125/B160)

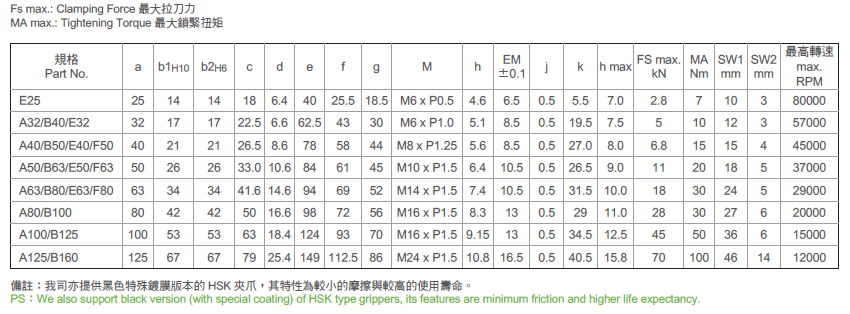

Part No.	Holder Size	Max Pull Force Fs (kN)	Max Torque MA (Nm)	Max RPM	Thread M
E25	HSK-E25	7	10	80,000	M6×P0.5
A32/B40/E32	HSK-A32/B40/E32	8	10	57,000	M6×P1.0
A40/B50/E40/F50	HSK-A40/B50/E40/F50	10	15	45,000	M8×P1.25
A50/B63/E50/F63	HSK-A50/B63/E50/F63	11	20	37,000	M10×P1.5
A63/B80/E63/F80	HSK-A63/B80/E63/F80	20	30	30,000	M14×P1.5
A80/B100	HSK-A80/B100	30	35	19,000	M16×P1.5
A100/B125	HSK-A100/B125	50	55	14,000	M16×P1.5
A125/B160	HSK-A125/B160	70	100	12,000	M20×P1.5

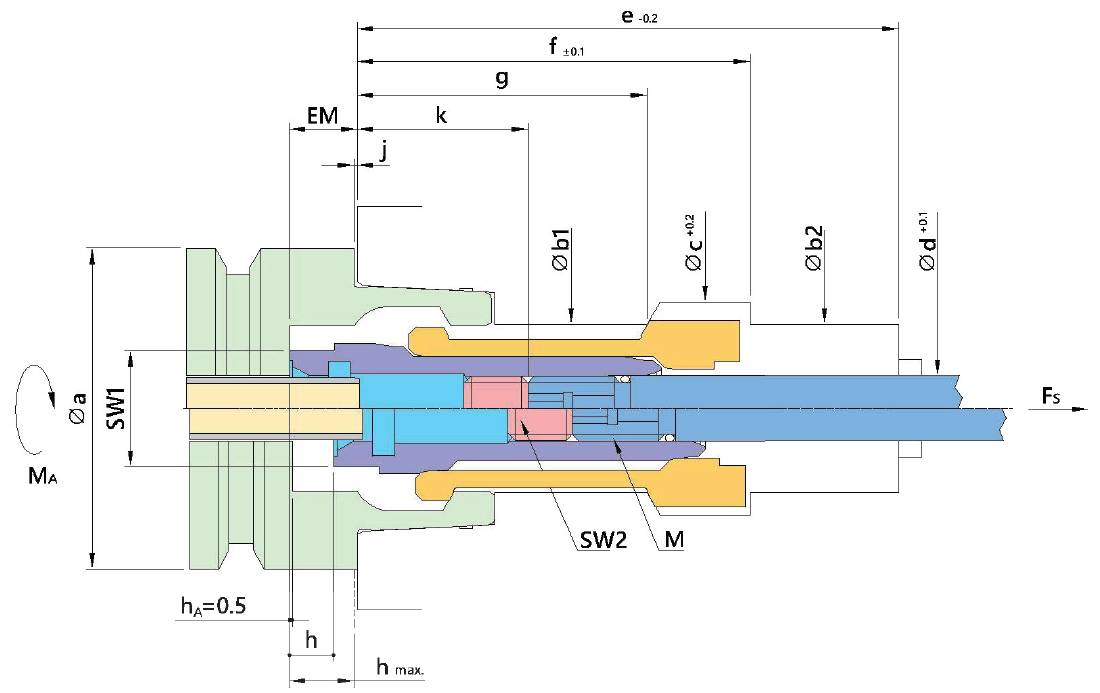

Structure Highlights (based on drawing):

• SW1: External wrench size

• SW2: Internal thread wrench size

• EM, h, k: Assembly and clamping stroke lengths

• Dual-stage expansion diameters: b1, b2, and c

• Pull force Fs and torque MA directions indicated
