PFHB2084 PF-HB2084微調搪孔系統組
產品特點
型號 : PFHB2084
微調精搪孔系統 精粗搪孔刀桿搪孔範圍8 ~ 280mm

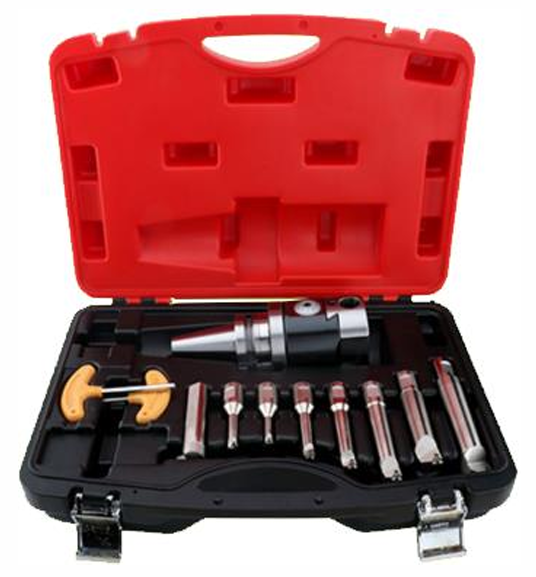

PF-HB2084微調搪孔系統組
PF-HB2084微調搪孔系統組

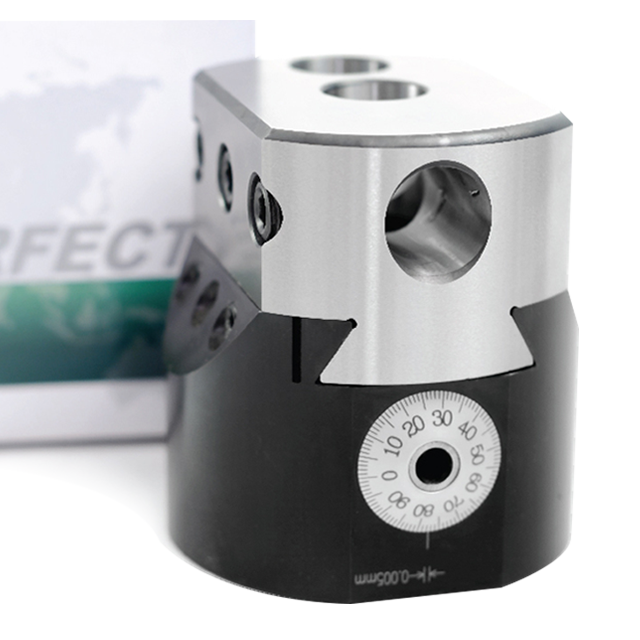

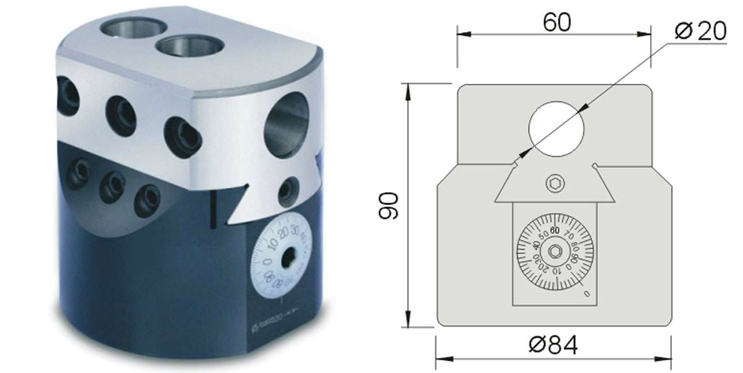

銑床用精密搪孔器
Model | Specification | D Range | N.W(kg) | |
Min | Max | |||
PF-BH2084 | WITHOUT SHANK | 8 | 280 | 7.45 |
BH2084+BT40 | M16xP2.0 | 9 | ||
BH2084+BT50 | M24xP3.0 | 11.5 | ||
BH2084+NT30 | 1/2"-12UNC | 8 | ||
BH2084+NT30 | M12xP1.75 | 8 | ||
BH2084+NT40 | 5/8"-11UNC | 8.4 | ||
BH2084+NT40 | M16xP2.0 | 8.4 | ||
BH2084+NT50 | 1"-8UNC | 11 | ||
BH2084+NT50 | M24xP3.0 | 11 | ||
BH2084+MT3 | 1/2"-12UNC | 8.1 | ||
BH2084+MT3 | M12xP1.75 | 8.1 | ||
BH2084+MT4 | 5/8"-11UNC | 8.3 | ||
BH2084+MT4 | M16xP2.0 | 8.3 | ||
BH2084+MT5 | 3/4"-10 | 9 | ||
BH2084+MT5 | M20xP2.5 | 9 | ||
搪孔器一格是0.005 一個直徑0.01

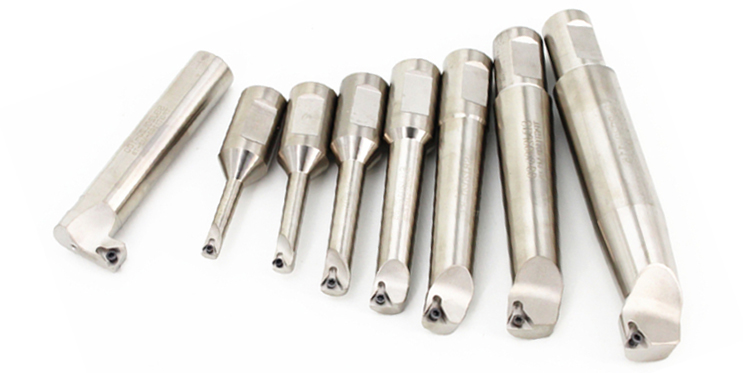

搪孔器刀桿有8種
Model No. | Boring Rang | Dimension | Lnsert | Screw | Wrench | Weight(KG) |
型號 | Min ~ Max 最小 〜 最大 | DM | 刀片 | 星型螺絲 | 扳手 | 重量 |
BH20-08 | 8 ~ 11 | 32 | TBGT0601 | M2 | T6 | 0.15 |
BH20-10 | 10 ~ 13 | 40 | 0.15 | |||
BH20-12 | 12 ~ 17 | 53 | TPGT0902 | M2.5 | T9 | 0.15 |
BH20-16 | 16 ~ 21 | 68 | 0.2 | |||
BH20-20 | 20 ~ 130 | 83 | TPGT1103 | M3 | T9 | 0.25 |
BH20-25 | 25 ~ 135 | 96 | 0.35 | |||
BH20-30 | 30 ~ 140 | 115 | 0.4 | |||
BH20-20L | 120 ~ 280 | 83+L | 0.3 |

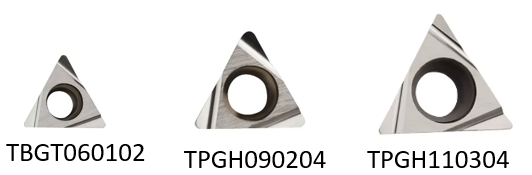

搪孔器使用刀片
