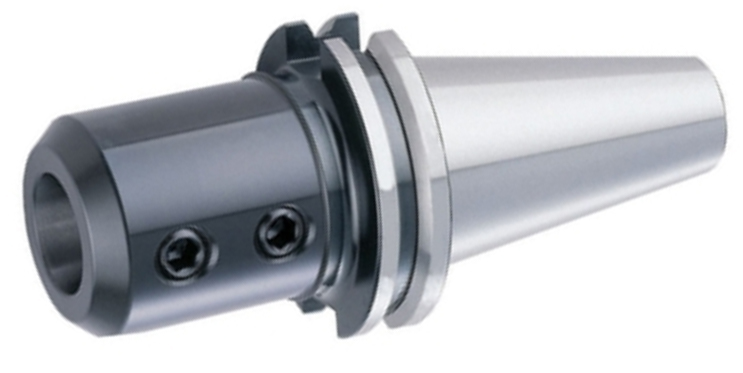

BT/SLA 側固式刀桿
產品特點
型號 : BT/SLA
側固式刀桿用於夾持直柄銑刀,可用在一般銑削加工夾持銑刀之固定螺絲共2個
刀桿本身已裝配固定螺絲

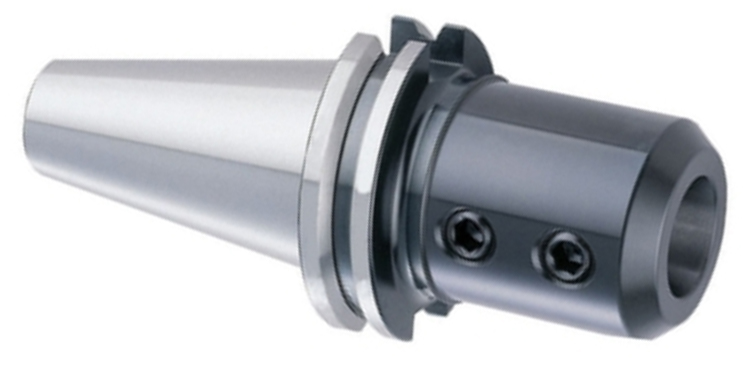

側固式刀桿
BT/SLA 側固端銑刀桿
|
SLA 型號 |
d |
D |
L |
L1 |
L2 |
H |
G |
Weight(kg) |
|
BT30-SLA6-60L |
6 |
25 |
60 |
12 |
10 |
32 |
M6 |
0.60 |
|
BT30-SLA8-60L |
8 |
28 |
60 |
14 |
12 |
36 |
M8 |
0.65 |
|
BT30-SLA10-60L |
10 |
35 |
60 |
15 |
14 |
10 |
M10 |
0.70 |
|
BT30-SLA12-60L |
12 |
40 |
60 |
20 |
16 |
45 |
M10 |
0.80 |
|
BT30-SLA16-60L |
16 |
45 |
75 |
22 |
18 |
50 |
M10 |
0.80 |
|
BT30-SLA20-75L |
20 |
50 |
75 |
25 |
20 |
60 |
M12 |
1.10 |
|
BT30-SLA25-75L |
25 |
55 |
75 |
25 |
22 |
65 |
M12 |
1.10 |
|
BT40-SLA6-75L |
6 |
25 |
75 |
12 |
10 |
32 |
M6 |
1.20 |
|
BT40-SLA6-100L |
6 |
25 |
100 |
12 |
10 |
32 |
M6 |
1.30 |
|
BT40-SLA8-75L |
8 |
28 |
75 |
14 |
12 |
36 |
M8 |
1.25 |
|
BT40-SLA8-100L |
8 |
28 |
100 |
14 |
12 |
36 |
M8 |
1.40 |
|
BT40-SLA10-75L |
10 |
35 |
75 |
15 |
14 |
40 |
M10 |
1.35 |
|
BT40-SLA10-100L |
10 |
35 |
100 |
15 |
14 |
40 |
M10 |
1.50 |
|
BT40-SLA12-75L |
12 |
40 |
75 |
20 |
16 |
45 |
M10 |
1.45 |
|
BT40-SLA12-100L |
12 |
40 |
100 |
20 |
16 |
45 |
M10 |
1.65 |
|
BT40-SLA16-75L |
16 |
42 |
75 |
20 |
18 |
50 |
M10 |
1.50 |
|
BT40-SLA16-100L |
16 |
42 |
100 |
20 |
18 |
50 |
M10 |
1.85 |
|
BT40-SLA20-75L |
20 |
50 |
75 |
20 |
18 |
60 |
M12 |
1.60 |
|
BT40-SLA20-100L |
20 |
50 |
100 |
25 |
20 |
60 |
M12 |
2.00 |
|
BT40-SLA25-75L |
25 |
55 |
75 |
22 |
18 |
65 |
M12 |
1.60 |
|
BT40-SLA25-100L |
25 |
55 |
100 |
25 |
22 |
65 |
M12 |
2.00 |
|
BT40-SLA32-90L |
32 |
60 |
90 |
30 |
22 |
70 |
M16 |
2.00 |
|
BT40-SLA40-105L |
40 |
80 |
105 |
30 |
22 |
80 |
M16 |
3.10 |
|
BT40-SLA42-105L |
42 |
80 |
105 |
35 |
25 |
80 |
M20 |
3.10 |
|
BT50-SLA6-105L |
6 |
25 |
105 |
12 |
10 |
32 |
M6 |
4.10 |
|
BT50-SLA8-105L |
8 |
28 |
105 |
14 |
12 |
36 |
M8 |
4.10 |
|
BT50-SLA10-105L |
10 |
35 |
105 |
15 |
14 |
40 |
M10 |
4.20 |
|
BT50-SLA12-105L |
12 |
40 |
105 |
20 |
16 |
45 |
M10 |
4.35 |
|
BT50-SLA16-105L |
16 |
45 |
105 |
22 |
18 |
50 |
M10 |
4.45 |
|
BT50-SLA20-105L |
20 |
20 |
105 |
25 |
20 |
60 |
M12 |
4.50 |
|
BT50-SLA20-150L |
20 |
20 |
150 |
25 |
20 |
60 |
M12 |
5.20 |
|
BT50-SLA20-200L |
20 |
20 |
200 |
25 |
20 |
60 |
M12 |
5.90 |
|
BT50-SLA25-105L |
25 |
55 |
105 |
25 |
22 |
60 |
M12 |
4.60 |
|
BT50-SLA25-150L |
25 |
55 |
150 |
25 |
22 |
60 |
M12 |
5.40 |
|
BT50-SLA25-200L |
25 |
55 |
200 |
25 |
22 |
60 |
M12 |
6.50 |
|
BT50-SLA32-105L |
32 |
60 |
105 |
30 |
22 |
65 |
M16 |
4.70 |
|
BT50-SLA32-150L |
32 |
60 |
150 |
30 |
22 |
70 |
M16 |
5.80 |
|
BT50-SLA32-200L |
32 |
60 |
200 |
30 |
22 |
70 |
M16 |
6.60 |
|
BT50-SLA40-120L |
40 |
80 |
120 |
30 |
22 |
80 |
M20 |
6.00 |
|
BT50-SLA42-120L |
42 |
80 |
120 |
35 |
25 |
80 |
M20 |
6.30 |
|
BT50-SLA50.8-120L |
50.8 |
95 |
120 |
35 |
25 |
90 |
M20 |
6.60 |
