BT/FMA 平面銑刀桿
產品特點
型號 : BT/FMA
每支FMA 及 FMB 面銑刀桿均附有螺絲及擋耳以裝配銑刀盤使用面銑刀盤須另外購買
平面銑刀桿
BT/FMA 平面銑刀桿

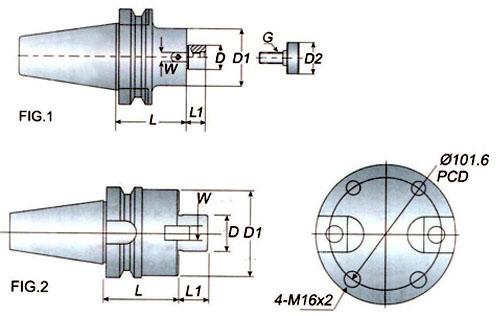

FMA/型號 | FIG | D | D1 | D2 | L | L1 | G | W | Wieght (kg) |
BT30-FMA25.4-45L | 1 | 25.4 | 45 | 33 | 45 | 20 | M12 | 9.5 | 0.9 |
BT30-FMA25.4-60L | 1 | 25.4 | 45 | 33 | 60 | 20 | M12 | 9.5 | 1.2 |
BT30-FMA31.75-45L | 1 | 31.8 | 58 | 40 | 45 | 22 | M12 | 12.7 | 1.3 |
BT40-FMA25.4-45L | 1 | 25.4 | 60 | 33 | 45 | 20 | M12 | 9.5 | 1.7 |
BT40-FMA25.4-60L | 1 | 25.4 | 60 | 33 | 60 | 20 | M12 | 9.5 | 2.0 |
BT40-FMA25.4-90L | 1 | 25.4 | 60 | 33 | 90 | 20 | M12 | 9.5 | 2.6 |
BT40-FMA25.4-105L | 1 | 25.4 | 60 | 33 | 105 | 20 | M12 | 9.5 | 2.9 |
BT40-FMA31.75-45L | 1 | 31.75 | 70 | 40 | 45 | 22 | M12 | 12.7 | 1.8 |
BT40-FMA31.75-60L | 1 | 31.75 | 70 | 40 | 60 | 22 | M12 | 12.7 | 2.3 |
BT40-FMA31.75-90L | 1 | 31.75 | 70 | 40 | 90 | 22 | M12 | 12.7 | 3.2 |
BT40-FMA31.75-105L | 1 | 31.75 | 70 | 40 | 105 | 22 | M12 | 12.7 | 3.3 |
BT40-FMA38.1-60L | 1 | 38.1 | 85 | 50 | 60 | 23 | M16 | 15.9 | 2.8 |
BT50-FMA25.4-45L | 1 | 25.4 | 60 | 33 | 45 | 20 | M12 | 9.5 | 4.2 |
BT50-FMA25.4-75L | 1 | 25.4 | 60 | 33 | 75 | 20 | M12 | 9.5 | 4.9 |
BT50-FMA25.4-105L | 1 | 25.4 | 60 | 33 | 105 | 20 | M12 | 9.5 | 5.3 |
BT50-FMA25.4-150L | 1 | 25.4 | 60 | 33 | 150 | 20 | M12 | 9.5 | 6.1 |
BT50-FMA25.4-200L | 1 | 25.4 | 60 | 33 | 200 | 20 | M12 | 9.5 | 7.3 |
BT50-FMA25.4-250L | 1 | 25.4 | 60 | 33 | 250 | 20 | M12 | 9.5 | 8.2 |
BT50-FMA25.4-300L | 1 | 25.4 | 60 | 33 | 300 | 20 | M12 | 9.5 | 9.3 |
BT50-FMA31.75-45L | 1 | 31.75 | 70 | 40 | 45 | 22 | M12 | 12.7 | 4.4 |
BT50-FMA31.75-75L | 1 | 31.75 | 70 | 40 | 75 | 22 | M12 | 12.7 | 5.3 |
BT50-FMA31.75-105L | 1 | 31.75 | 70 | 40 | 105 | 22 | M12 | 12.7 | 6.2 |
BT50-FMA38.1-75L | 1 | 38.1 | 85 | 50 | 75 | 23 | M16 | 15.9 | 5.9 |
BT50-FMA50.8-45L | 1 | 50.8 | 95 | 65 | 45 | 24 | M16 | 19.05 | 5.0 |
BT50-FMA50.8-75L | 1 | 50.8 | 95 | 65 | 75 | 24 | M16 | 19.05 | 6.6 |
BT50-FMA47.625-75L | 2 | 47.625 | 128.57 | 75 | 32 | 25.4 | 8.3 |
可另外加購銑刀盤
